Wnicek 29.4V 7S 5P E-Bike Battery 24V 11AH 13AH 15AH High Power Lithium Battery Pack with BMS and 2A Charger Fit for 100W 250W 350W 500W Electric Bicycles Motor
Share Facebook Twitter Pinterest Email

Wnicek 29.4V 7S 5P E-Bike Battery 24V 11AH 13AH 15AH High Power Lithium Battery Pack with BMS and 2A Charger Fit for 100W 250W 350W 500W Electric Bicycles Motor

Brand: Wnicek
Product Code: MM19130
Availability: Pre-Order, Inquiry Price
US$0.00
- +

Description

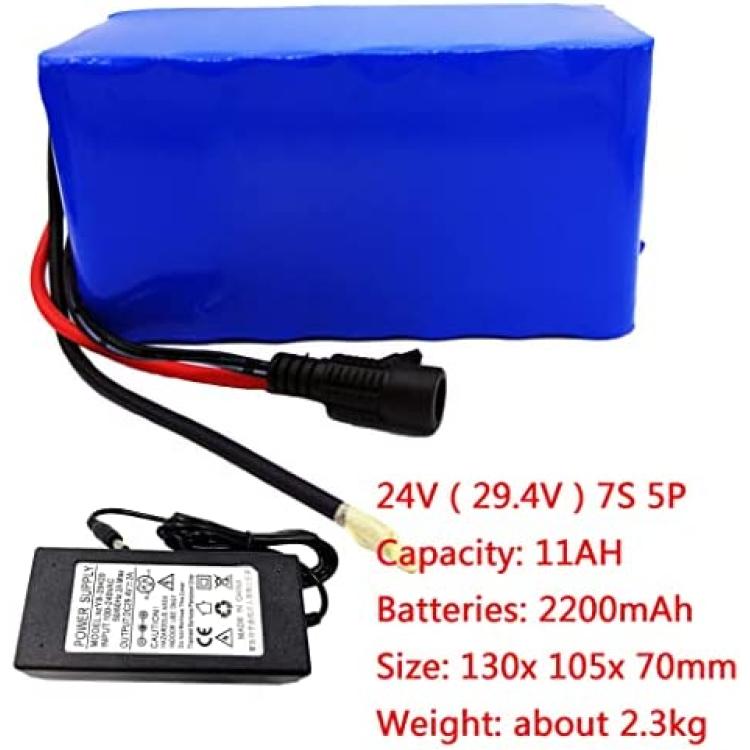

Battery parameters
Voltage: 29.4V
Nominal capacity: 11AH/13AH/15AH(customizable)
Working voltage: 24V
Charging voltage: 29.4V
Output voltage: 21V-29.4V
Cell model: 3.7V 2200mAh/2600mAh/3000mAh
Combination method: 7 series and 5 parallel
Number of cells: 35pcs
Dimensions: 130x 105x 70mm/5.1x 4.13x 2.75inch
Suitable power: for 50W 100W 250W 350W 500W motor
Weight: about 2kg
Material: ternary lithium power battery, waterproof PVC
Standard charging current: 2A
Charging time under standard charging current: about 5 H
Life cycle: more than 1000 times
Discharge connector: not included (if you need a connector, please note when placing an order)
BMS: 20A (Can pass 30A current)

Notice:
1) The size is measured manually, there is a ±3mm error, please understand
2) Please charge and maintain it every three months when not in use.
3) If your motor power exceeds 500W, please contact me, we will customize a battery pack compatible with higher power for you
