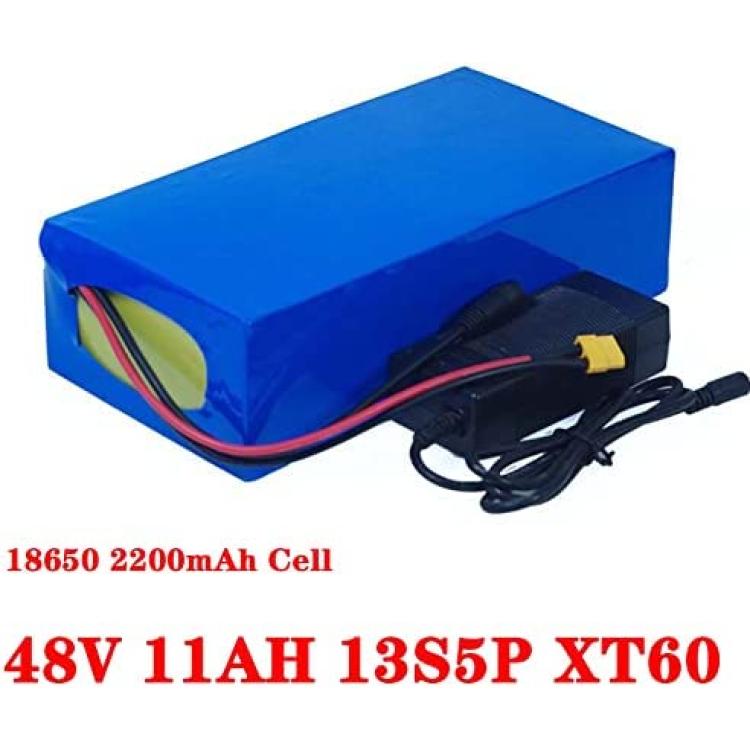

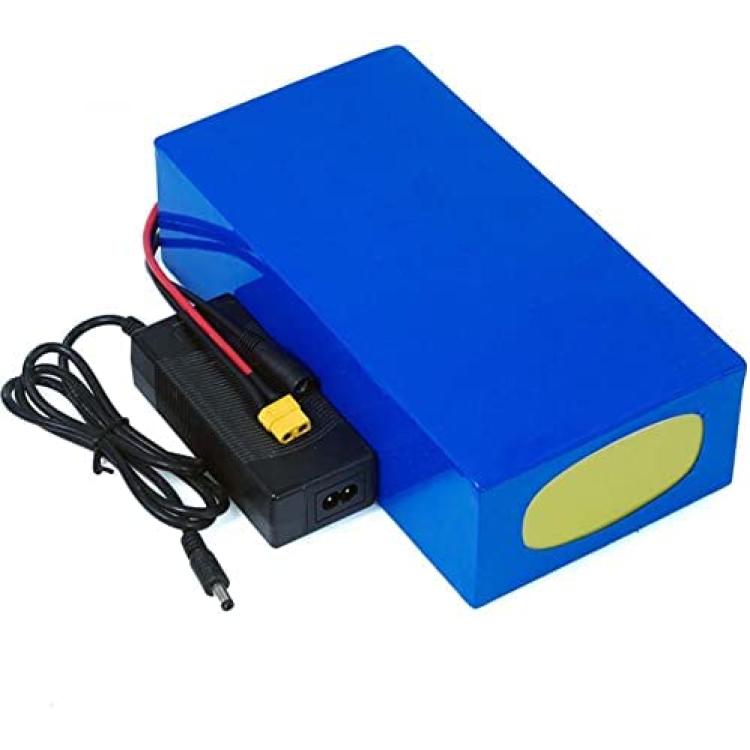

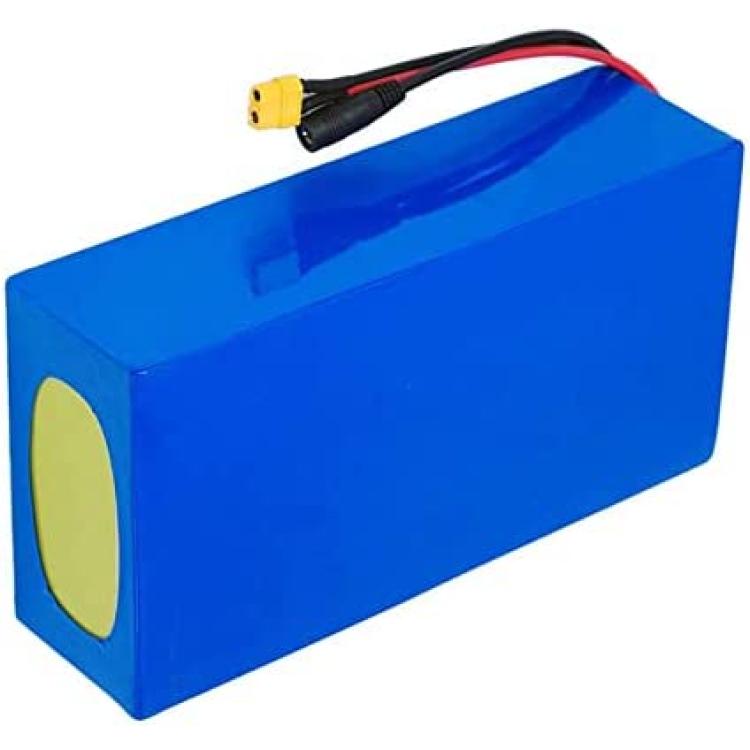

Jieoto 48V Lithium-ion Electric Bike Battery 8.8AH 11AH 13.2AH 15.4AH 17.6AH 19.8AH 22AH Large Capacity Lithium Battery Fit for 1000W 750W 500W 350W 250W 200W E-Bike Motor
Description
Product Details:
Nominal voltage of battery pack: 48V
Nominal capacity: 8.8AH/11AH/13.2AH/15.4AH/17.6AH/19.8AH/22AH
Cell model: 18650 (3.7V 2200mAh)

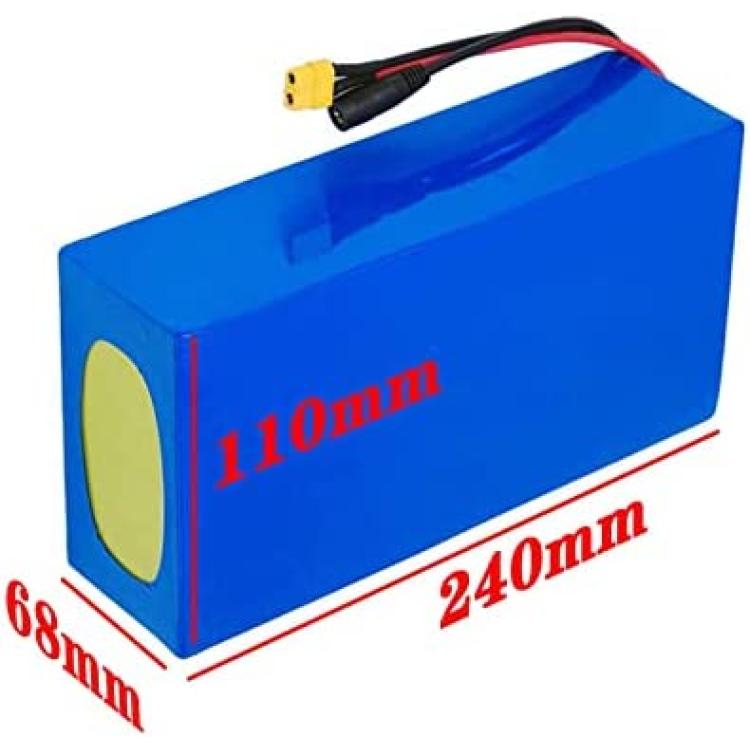

Size/combination method/weight
8.8Ah: 240*90*68mm/13S4P/ about 3kg
11Ah: 240*110*68mm/13S5P/ about 3.6kg
13.2Ah: 240*125*68mm/13S6P/ about 4.2kg
15.4Ah: 240*145*68mm/13S7P/ about 4.8kg
17.6Ah: 240*162*68mm/13S8P/ about 5.4kg
19.8Ah: 240*185*68mm/13S9P/ about 6kg
22Ah: 240*200*68mm/13S10P/ about 6.6kg
Battery Power: 1000W (Can be used for motors within 1000W)
Discharge cutoff voltage: 36.4 +/- 1v
Load shedding voltage: 54.6v
Rated discharge current: 30A
Maximum instantaneous discharge current: 90A
Maximum continuous discharge current: 30A
Charge Mode: CC-CV
Standard load current: 2A
Charging time under standard charging current: About 5-8 hours
Charge Temperature Range: -20-55 °c
Packing List:
1* Lithium Battery Pack (with BMS)
1* 54.6V Charger
Notice:
Since the size is manually measured, there may be some deviation, please refer to the size of the received item, thank you for your understanding.
