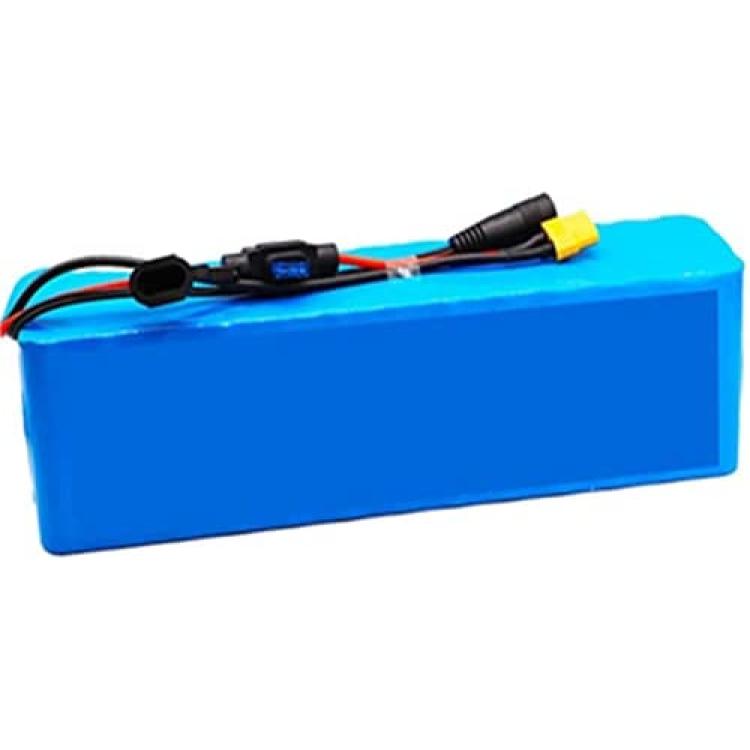

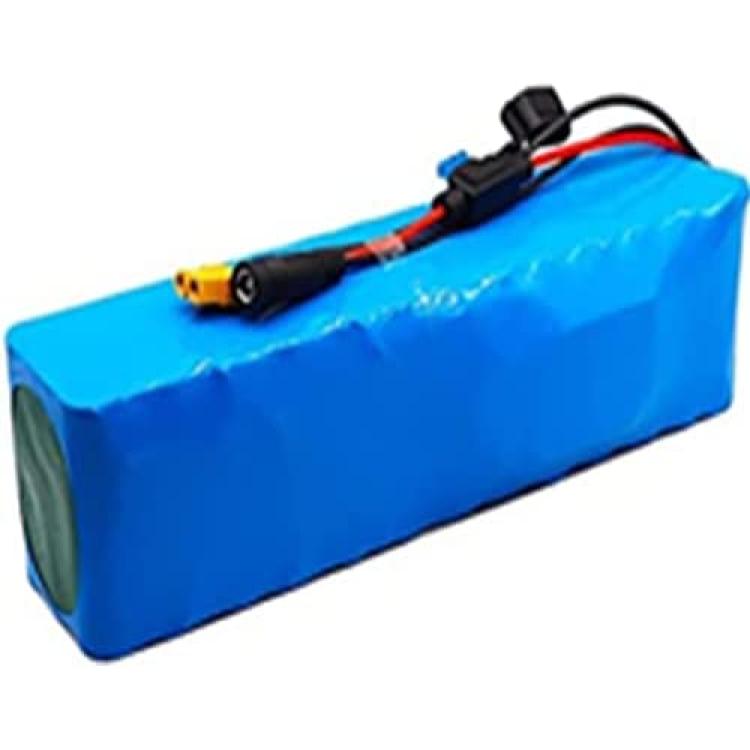

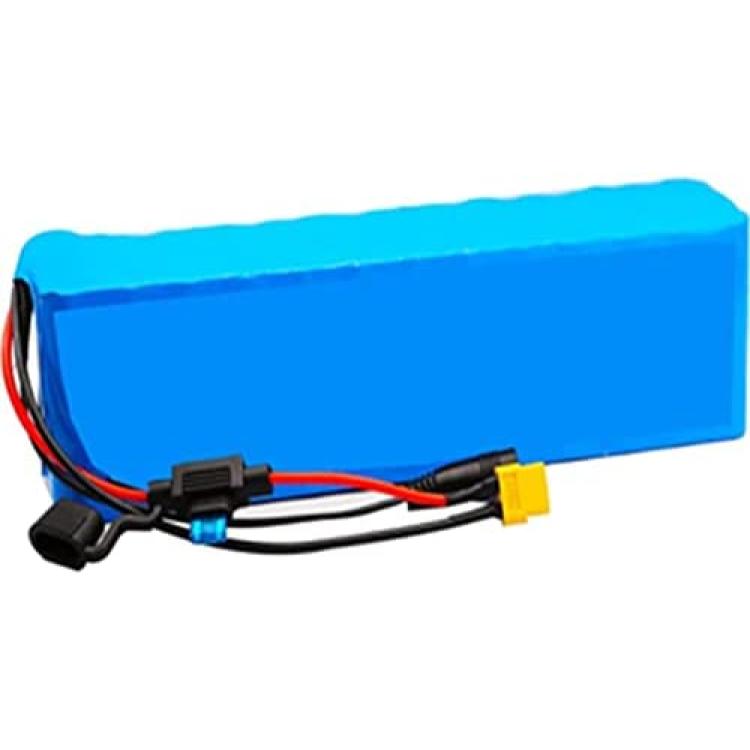

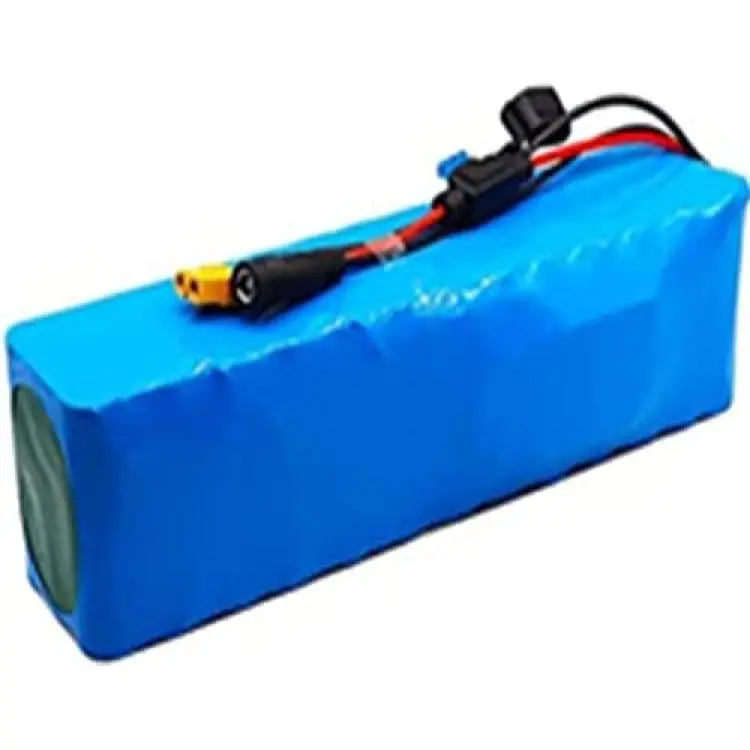

Grideto 48V E-Bike Lithium Ion Battery Pack 25Ah 13S3P 18650 Battery Pack Built in BMS with Charger for 250W-1000W Motor and Electric Bicycle Scooter
Description
Dear friend, Welcome to our store.
We hope you can find what you like in our store.
Product Parameters:
Battery type: 18650
Single cell voltage: 3.7V
Combination: 13 Series 3 and (13S3P)
Nominal voltage: 48V
Input voltage: 48V
Output voltage: 48V
After the combined capacity: 25000mAh (25Ah)

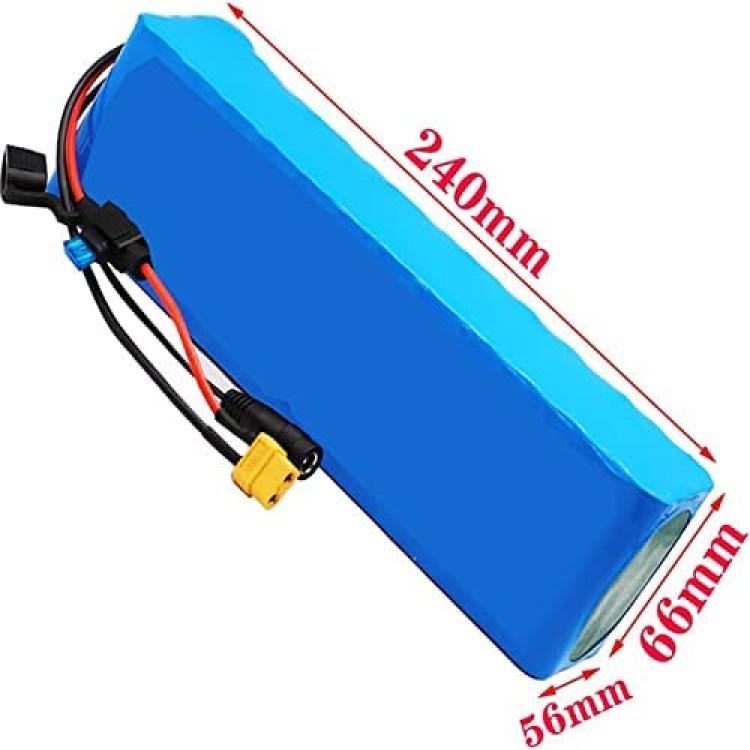

Battery dimensions: 238 * 66 *56 mm
Weight: approx 2kg
Outside packaging: blue PVC
Application: aircraft models, power tools, electric motorcycles, electric bikes, external power supplies, electric wheelchairs, etc.
Charging voltage: 48V
Charge current: greater than or equal to 5A (the need for a dedicated lithium battery charger)
The battery discharge requirements:
1: Output 18 lines, length 200mm, red and black each one
2: Enter the outlet line leads to a 2.1 length 200mm
3: Rated discharge current: greater than or equal to10A
4: Maximum instantaneous current: 40A
5: Maximum operating current: 13A
Package Includes:

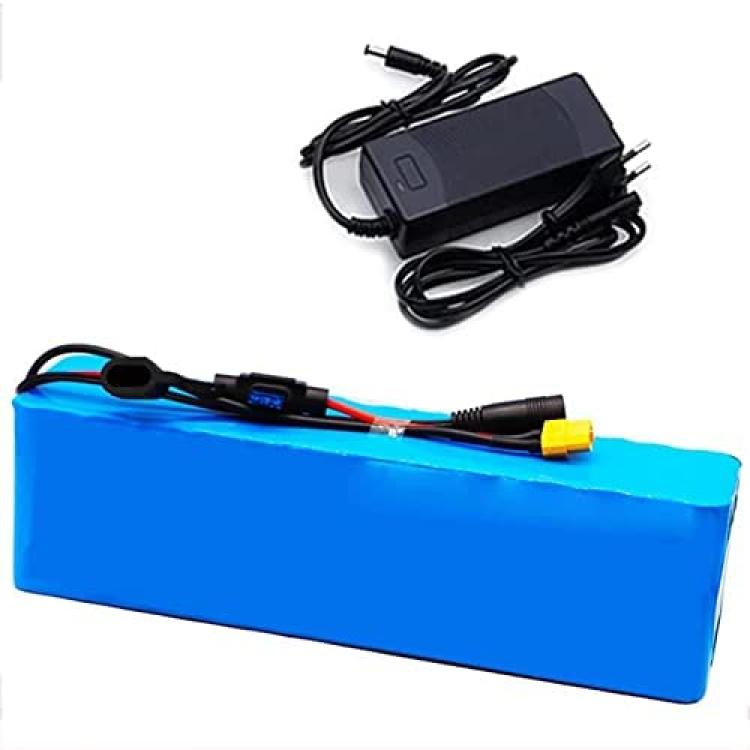

1 x 48V 25Ah Lithium Battery (sends "XT60" plug by default. If you need "T" plug, please leave a message "T")
1 x 54.6V Charger
Notice:
1. Since the size is manually measured, there may be a slight deviation of ±10 mm, please understand.
2. If the motor power you need exceeds this parameter, please contact me, I can customize a lithium battery pack suitable for you.
