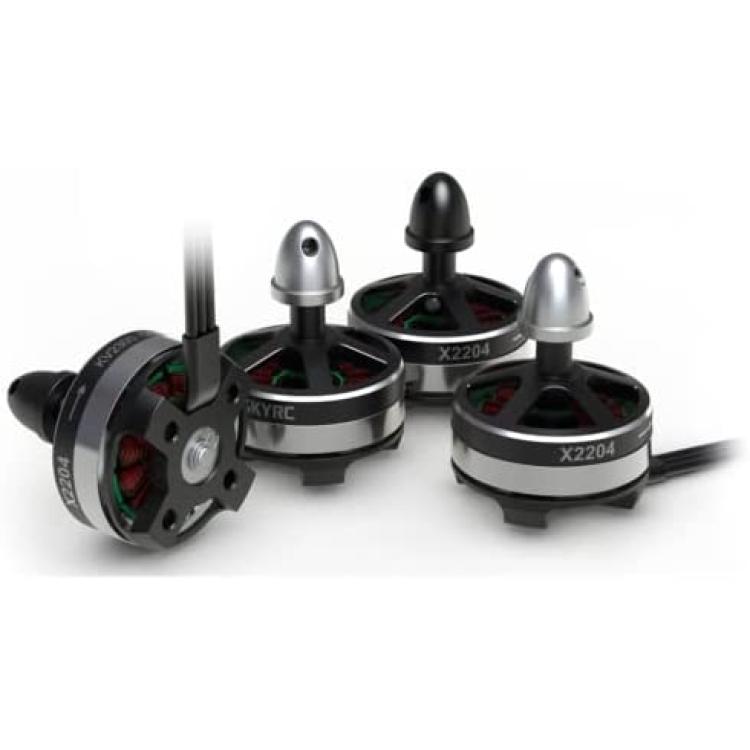

SKYRC X2204 KV2300 CW / CCW Brushless Motor Multirotor Motor with Screws for RC Quadcopter

The SkyRC X2204 multirotor motor,with high built quality and competitive price,are created for the passion of FPV mini multicopters.

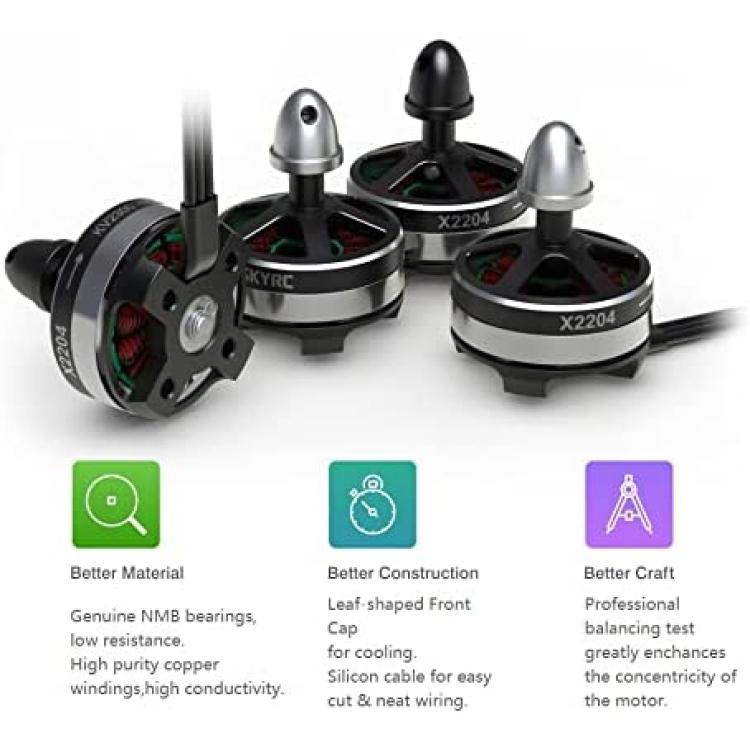

Features:

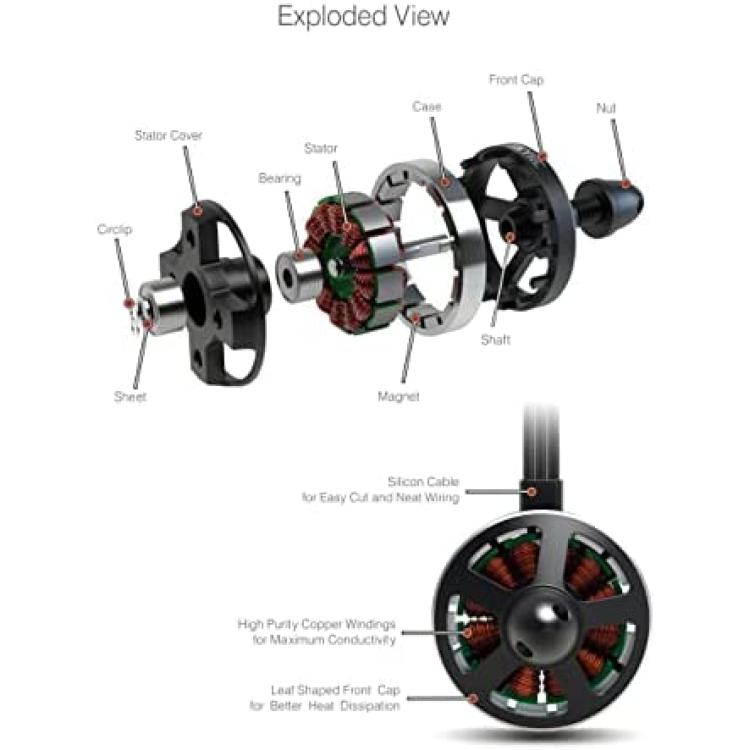

Better Material: Genuine NMB bearings, low resistance. High purity copper windings, high conductivity.

Better Construction: Leaf-shaped Front Cap for cooling. Silicon cable for easy cut and neat wiring.

Better Craft: Professional balancing test greatly enhances the concentricity of the motor.

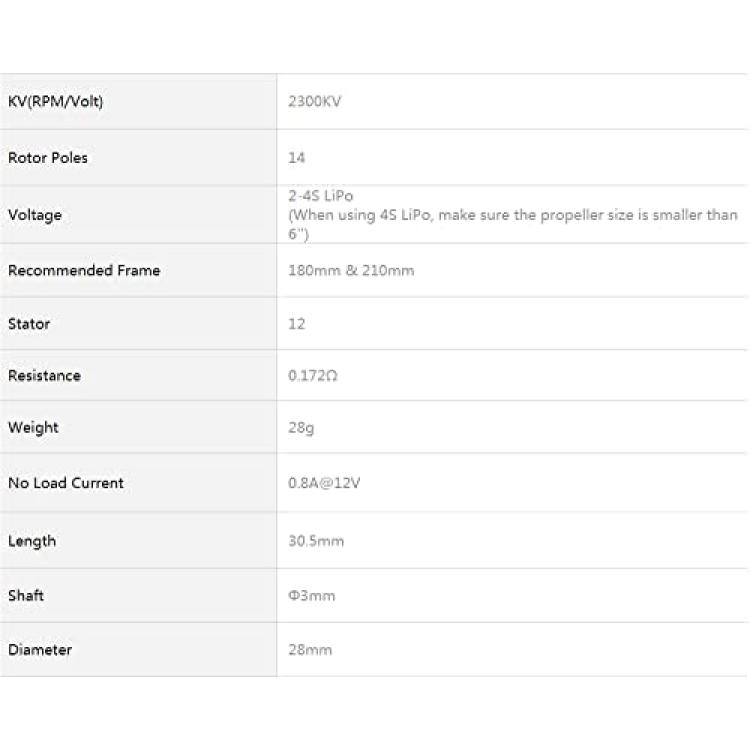

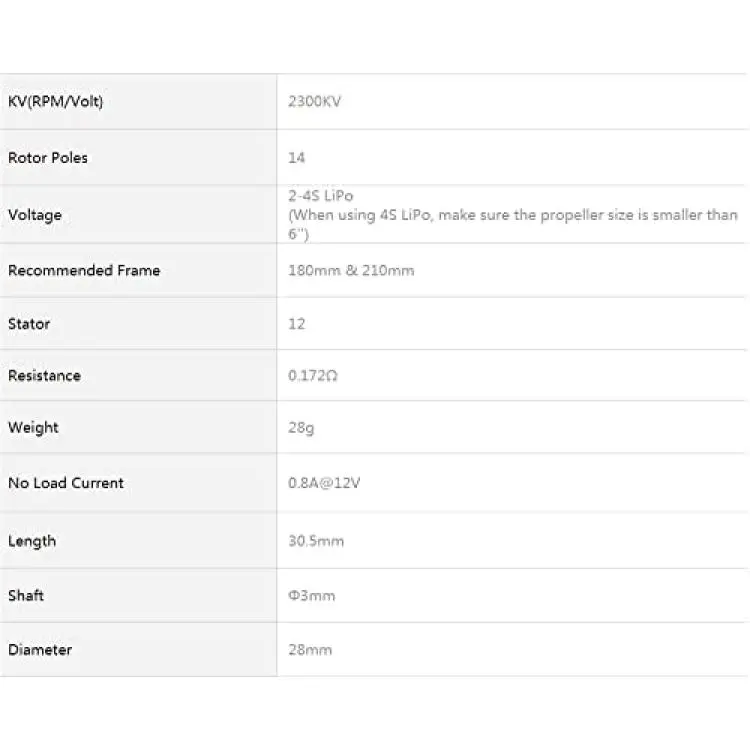

Specificaiton:

KV(RPM/Volt):2300KV

Rotor Poles:14

Voltage:2-4S LiPo

(When using 4S LiPo, make sure the propeller size is smaller than 6'')

Recommended Frame:180mm & 210mm

Stator:12

Resistance:0.172?

Weight:28g

No Load Current:0.8A@12V

Length:30.5mm

Shaft:?3mm

Diameter:28mm

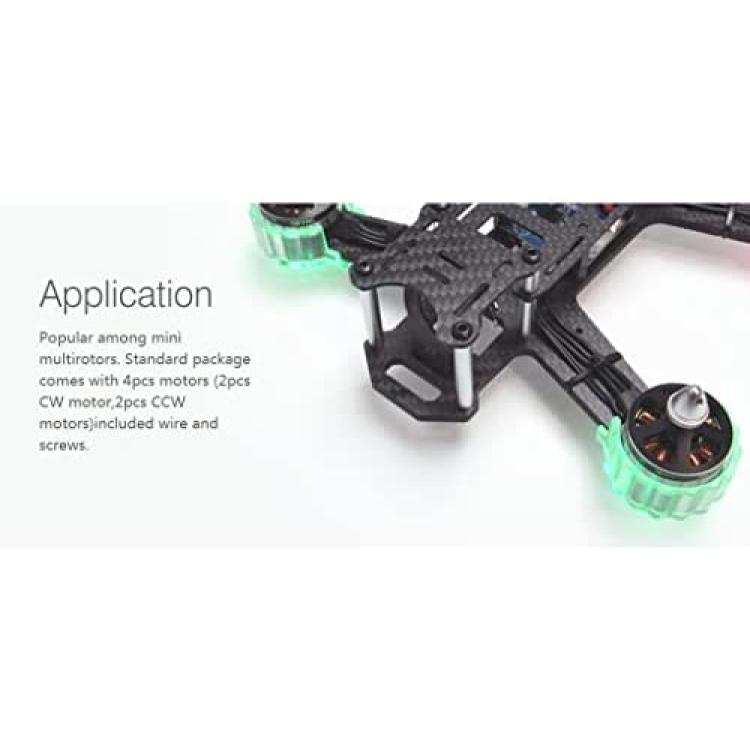

Application:

Popular among mini multirotors. Standard package comes with 4pcs motors (2pcs CW motor, 2pcs CCW motor) included wire and screws
