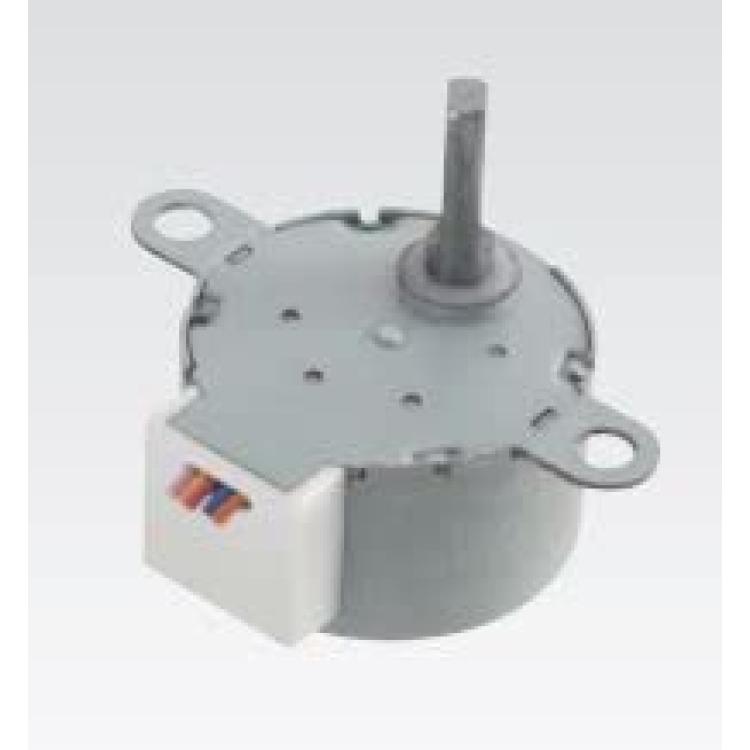

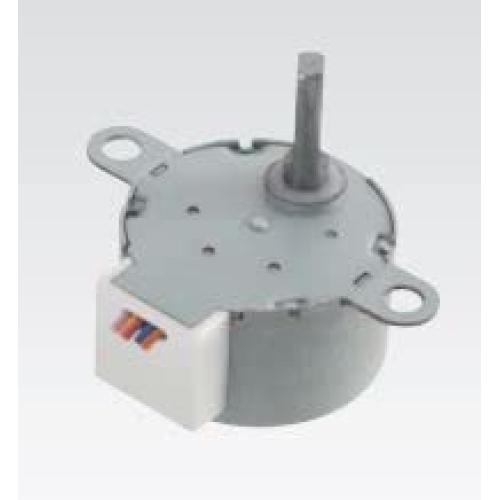

Stepper motor 12 VDC step angle 7.5° Unipolarity 1-2 phase (30BYJ46-149)
Description
Performance Parameters:
Insulation Class : 105
Noise dB(a): <40
Rated voltaje: 12 VDC
Resistance: 130 Ohms
Step angle: 7.5°
Frecuency of use: 125 Hz
Pull in Torque: > 120 mN.m
Self detent Torque: > 98 mN.m
No load Pull in Frecuency: >500 Hz
No load Pull out Frecuency: >700 Hz
Drive method: Unipolarity
Excitation Mode: 1-2 Phase
Reduction Ratio: 1/85.25
Friction Torque: 147~490 mN.m
Lead Exposed Length: 110 mm
Typical Applications:
Air conditioner
Refrigerator
Intelligent sanitary
Refrigerator
Automatic door lock
CCTV monitor system
Electronic Instruments
