Dasunny DC 12V to DC 19V Converter Voltage Regulator 6A Step-up Power Supply Circuit Module Adapter for Auto Car Truck Vehicle Boat Solar System Electric Motor, WG-12S1906

WELCOME TO DASUNNY
?Dasunny Team has always been committed to providing customers with high-quality products and a good shopping experience.
?If you have any questions during the shopping process or about the goods received, please do not hesitate to contact us, we will try our best to provide you with sincere services.

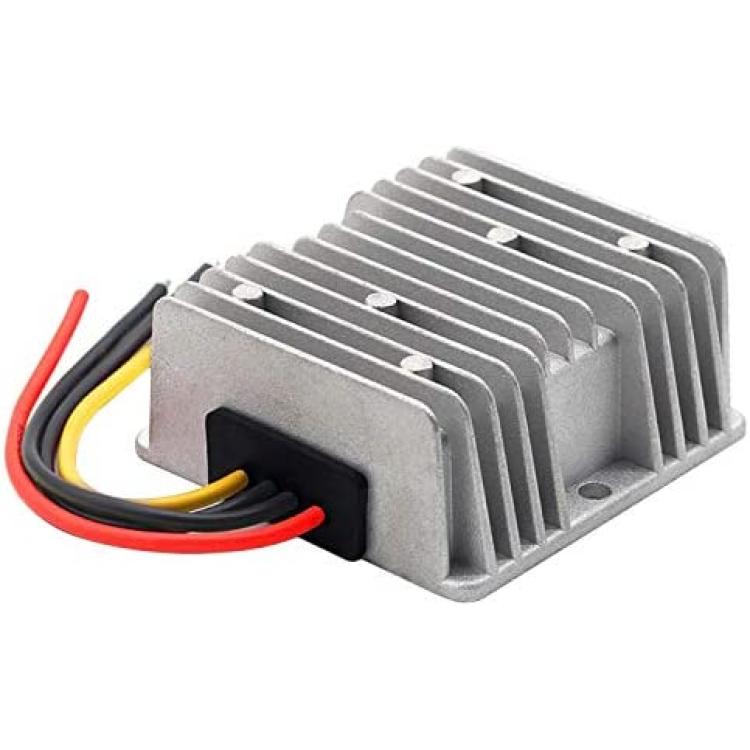

Dasunny High Efficient DC Power Supply Converter

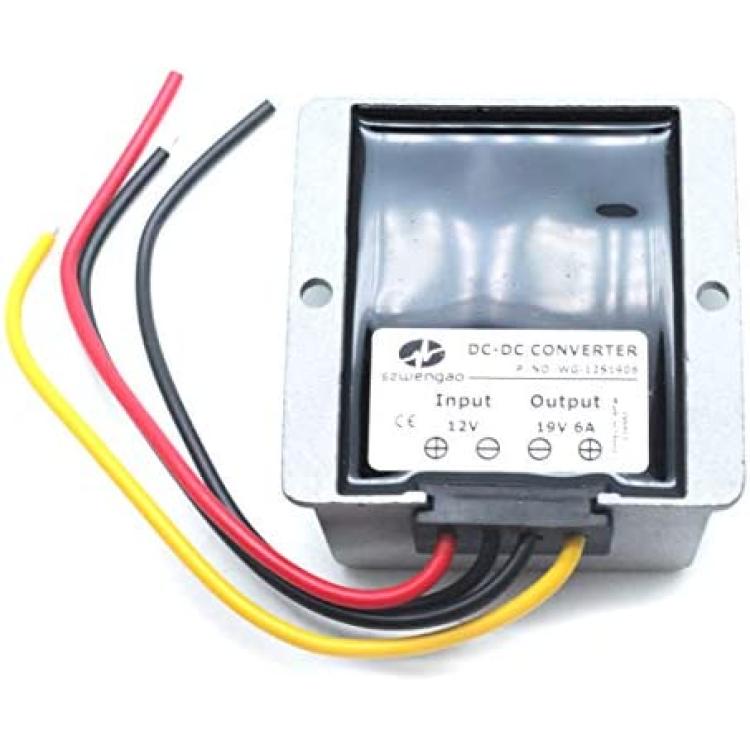

?The positive and negative signs of the power supply are affixed on the back, which is easy to distinguish and connect.
?IP67 Waterproof natural heat dissipation with die-cast aluminum shell.
?High Conversion Efficiecy: Synchronization Rectification Technology-multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiecy may reach 96%.
?Scope of Application: Widely used on Bus, CMB, large trucks, motor, - navigation, solar power, photovoltaic energy, bus display, taxi advertising screen, car audio, LCD TV, LED, intercom and monitoring system.

Specification:
Input voltage: 12 DC
Input voltage range: 9-18V DC
Conversion efficiency: 94%
Output voltage: 19V DC
Output current: 6A
Output rated power: 114W
Peak output power: 130%
Voltage adjustment rate: <1%
Load regulation rate: <2%
No-load current: <20mA
Ripple: <100mV
Working temperature: -30? to +80?

Protection performance
Waterproof rating: IP68
Overcurrent protection: YES
Overvoltage protection: YES
Over temperature protection: YES
Short circuit protection: YES

Safety Instructional Manual
1. The load connected to the output end of the power regulator should not be more than MAX LISTED LOAD POWER, any higher rated load will cause damage to the power regulator.
2. Can not used long time by the MAX. LISTED LOAD POWER
3. Please connect the converter and your device according to the wiring diagram provided.
