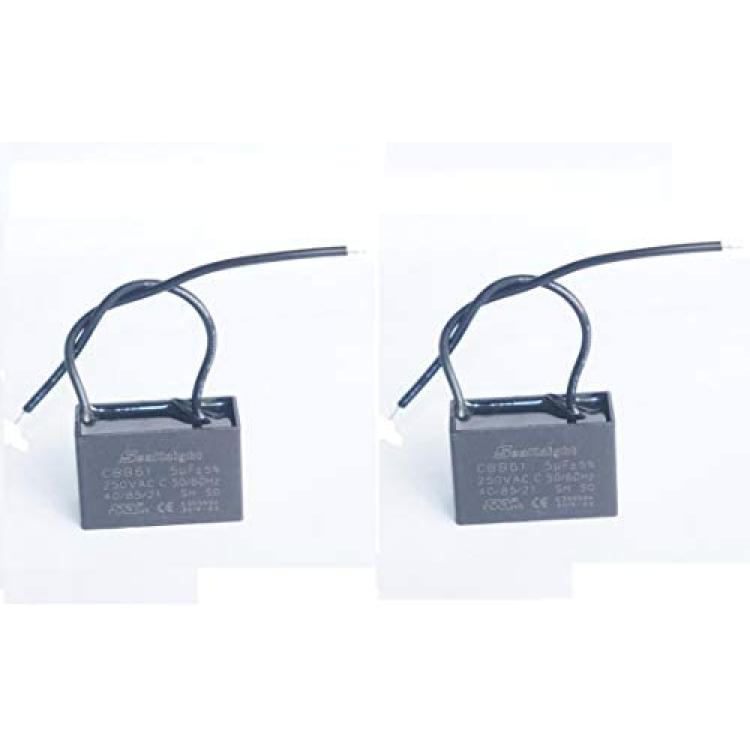

BVPOW 5 MFD uF 250V Withstand Voltage Ceiling Fan Wall Fan Desk Fan Bath fan CBB61 Motor Run Capacitor 2 Pack
About this product
*Production Name: Fan Capacitor, Module Type: CBB61, Dielectric Material : Metalized Polypropylene Film,Rated Capacitance : 5 MFD uF,Tollerance: +-5%,Withstand Voltage: 250V AC,Polarity: Non Polar, Wire Length: 100mm
*Standard CBB61 fan capacitor for ceiling fan, wall fan,desk fan, bath fan and other cooling fan
*Professional capacitor for US and North America fans which are widely used as 125V AC single phase home fan
*Strong body and concise design,slim body to be suitable form small install space,save your install time and energy
*1 year warranty
Description
CBB61 Fan Capacitor
Withstand Voltage: 250 VAC
Rate Volume: 5 MFD uF
Module Type: CBB61 Fan Capacitor
Over View Size: 38*26*15mm(L*H*T)/ 1.5*1.0*0.6in
Fixing Hole Diameter:5mm/0.2in
Cable Length: 100mm/4in
Net Weight Per Unit: 21g/0.7oz
Package Contents: 2 x Fan Capacitor
Final Remark:
1.Home fan capacitor runs as single motor run capacitor and start capacitor together on same time
2.As rated 125V AC single phase motor fan capacitor volume is estimated by 0.1 x Power(Watts), such as fan motor power is 50 Watts, fan capacitor can be selected 5 MFD
3.By most situation fan capacitor's volume can be selected within +-20% max if you have no spare parts on hand, for example 5.0 MFD capacitor can be replaced with one 4.0 MFD or 6.0 MFD capacitor
4.Used for 125V AC fan motor only, not used for 240V AC fan motor(needs withstand voltage 330V AC or Above)
5.Most common phenomenon of fan capacitor broken: not start to rotate or rotate no smoothly
