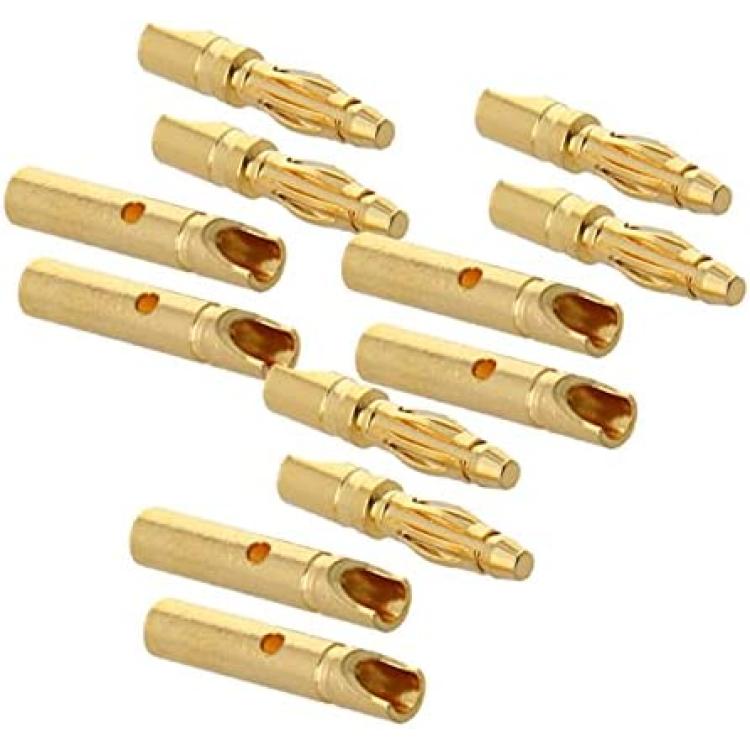

Heyiarbeit 6 Pairs 2mm Bullet Connector Gold Plated Banana Plug Male Female Connector Adapter for RC Lipo Battery ESC Motors
About this product
*【Technical Parameters】 - Diameter: 2mm; Length of female end: 12.44mm; Max outer diameter of female end: 2.46mm; Inner diameter of female end solder joint: 1.78mm; Length of male end: 12.3mm; Max outer diameter of male end: 2.5mm; Inner diameter of male end solder joint: 1.7mm
*【Function】 - Connect the brushless motor to the electronic speed control to provide good current
*【Material】 - The 2mm banana plug is brass gold-plated, which is not easy to oxidize and has good electrical conductivity
*【Features】 - Low resistance, and gives the best electric flow
*【Application】 - BNS20 20A bullet connector is suitable for remote control helicopters, cars, trucks and other electronic equipment
Description
Heyiarbeit Male Female BNS20 2mm Bullets Connector Plugs Kit
Specifications:
Brand:Heyiarbeit
Model:BNS20
Diameter: 2mm
Length of Female end: 12.44mm
Max outer diameter of Female end: 2.46mm
Inner diameter of Female end solder joint: 1.78mm
Length of male end: 12.3mm
Max outer diameter of male end: 2.5mm
Inner diameter of male end solder joint: 1.7mm
Material: Brass gold-plated
Quantity: 6 Sets X BNS20 2mm male female connector plug
Net Weight: 4g
Color: Golden
Product description:
1.2mm banana plug adopts a solid male female connector, which has a longer life and can withstand higher currents, good continuous stability, coating to protect the banana plug from oxidation, prolong the service life.
2.The gold-plated BNS20 2mm Banana Plug Connectors for Lipo and other Batteries.Make a safe connection between the battery and the motor, avoiding short circuits and reverse polarity.
3.You can use these in many high-voltage projects, or you can make high-voltage wires and connection points that can be completely immersed in mineral oil to provide a dielectric barrier, with strong connections and no swinging.
Package Content:
6 Sets X BNS20 Male Female Plug
Note:
1.The size and weight of the product are manually measured, please allow slight errors, thank you for your understanding.
2.The actual product and the color of the item shown in the picture may be slightly different from the actual product, please refer to the actual product.
3.Please pay attention to the size of the item before you purchase it.
