MECCANIXITY Motor Bracket Motor Mounting Holder 68x65x68mm Black for 50KTYZ Motor

About this product

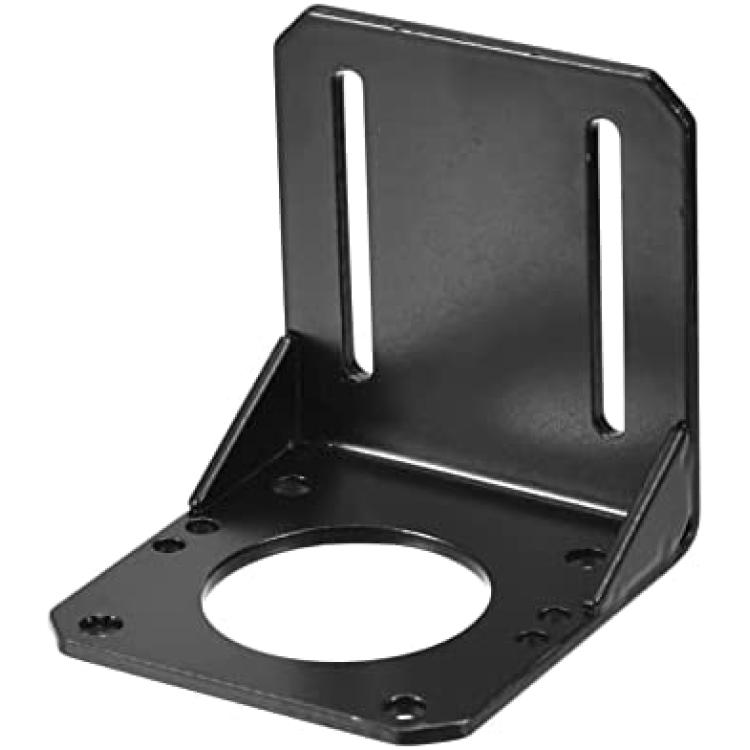

*Motor mounting bracket is mainly used for motor, which mainly plays a fixing role. Mounting bracket is a good accessory for stepper motor and is widely used

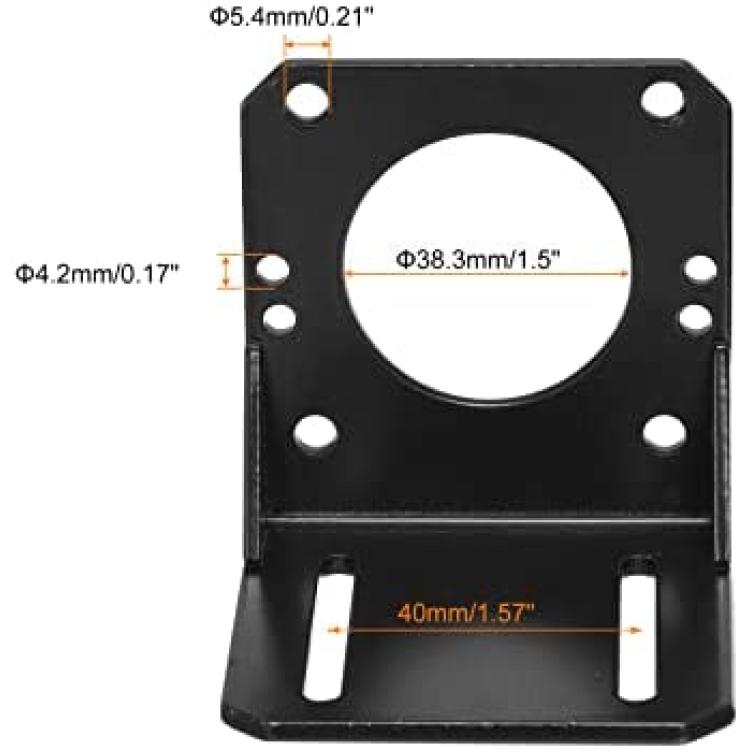

*Motor mounting bracket, is in size of : 68mm x 65mm x 68mm/2.68-inch x 2.56-inch x 2.68-inch(L*W*H)total size, 4.2mm/0.17-inch and 5.4mm/0.21-inch motor mounting hole dia, 7mm/0.28-inch and 47mm/1.85-inch motor mounting hole center distance, 4.2mm x 46.2mm/0.17-inch x 1.82-inch bracket mounting hole size, 40mm/1.57-inch bracket mounting hole center distance, 38.3mm/1.5-inch shaft hole dia

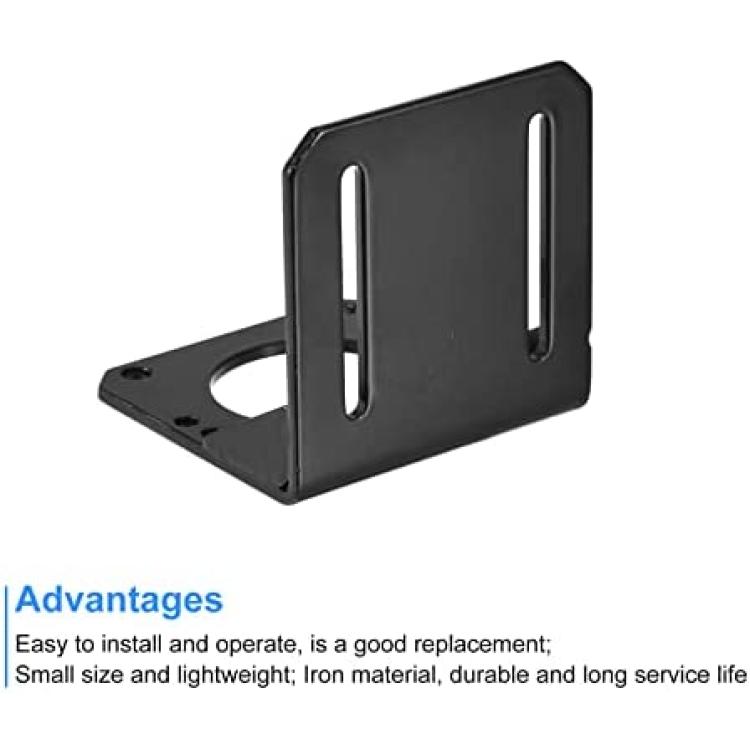

*Easy to install and operate, is a good replacement; Small size and lightweight; Iron material, durable and long service life

*Steps of installation: 1. Select motor mounting bracket of appropriate size; 2. Remove the motor mounting bracket to be replaced; 3. Installation

*Please select the appropriate size of the motor mounting bracket, especially the mounting hole diameter and mounting hole center distance
