BIGTREETECH PiggyBack36 V1.0 Tool Board Compatible 36 & 42 Stepper Motor Drivers with Optional Fan Voltage 3D Printer Parts
About this product
*Compatilbe 36 & 42 Stepper Motors: BIGTREETECH PiggyBack36 V1.0 tool board can be directly installed on the back of 36 stepper motors, and is also compatible with 42 stepper motors.
*ENIG Surface Finish: Coated with electroless nickel immersion gold finishing on PCBs surface, it provides PiggyBack36 V1.0 with flat surface, and reduces the potential for tarnish and pad degradation within using.
*Optional Voltage for Fan: PiggyBack36 V1.0 tool board is equipped with 2 available voltage, 5V and VCC, satisfying different needs within using.
*Easy to Connect: You can connect all the wires that need to be connected on the hot end to this board, and then connect to the motherboard through a 2*8pin terminal.
*100% Satisfying Customer Services: Please feel free to contact us via Amazon if you have any problems. 1-year warranty is 100% guaranteed, and professional tech supports provide you with reliable after-sales services. Your satisfaction is our ultimate goal.
Description

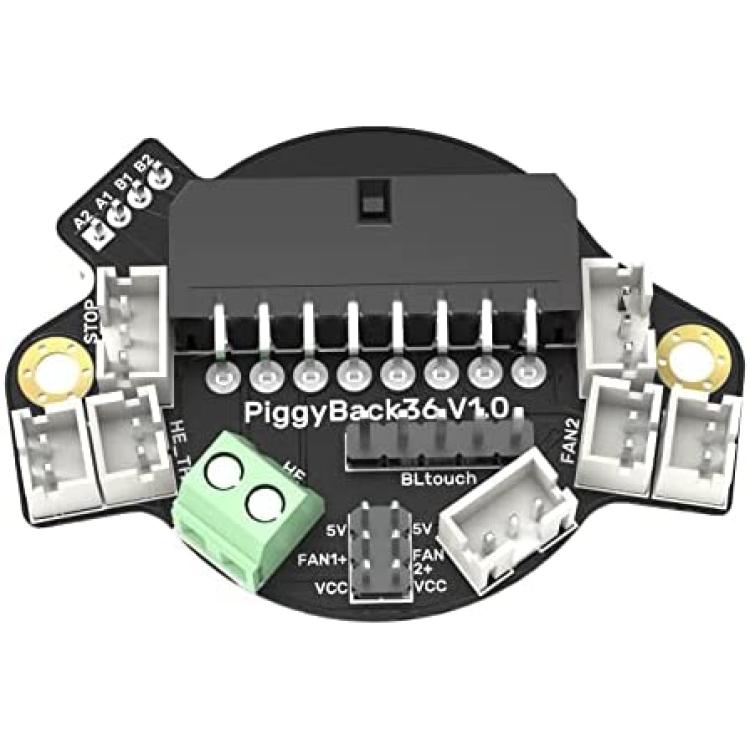

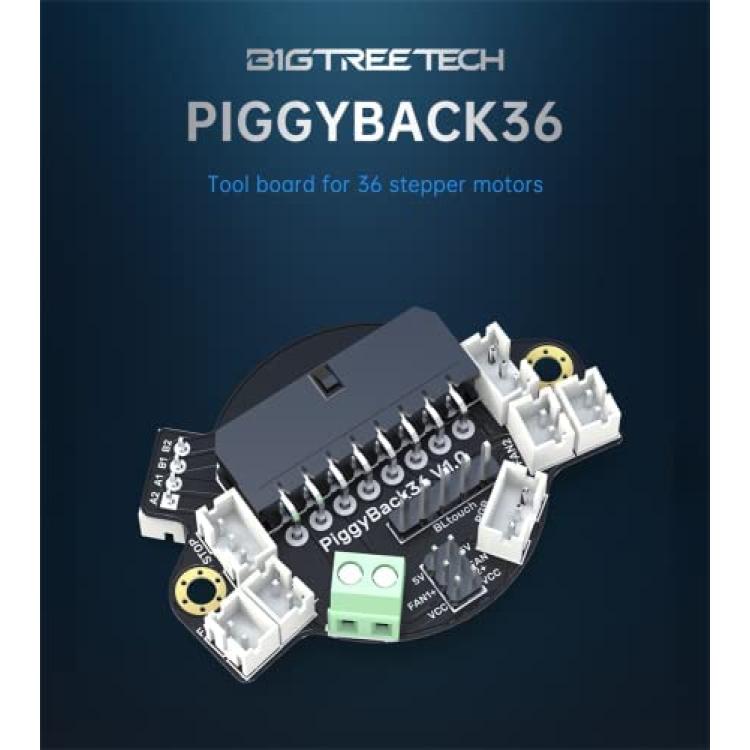

BIGTREETECK PiggyBack36 V1.0 adapter board is specially designed for 36 stepper moter, newly launched item from BIGTREETECH Co..
Features:

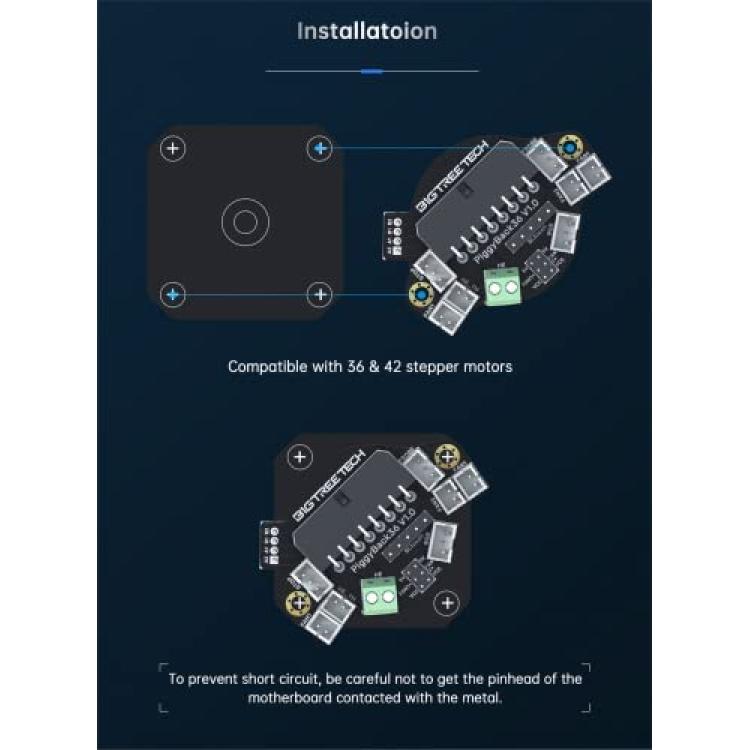

1.This tool board can be directly installed on the back of 36 stepper motors, and is also compatible with 42 stepper motors.

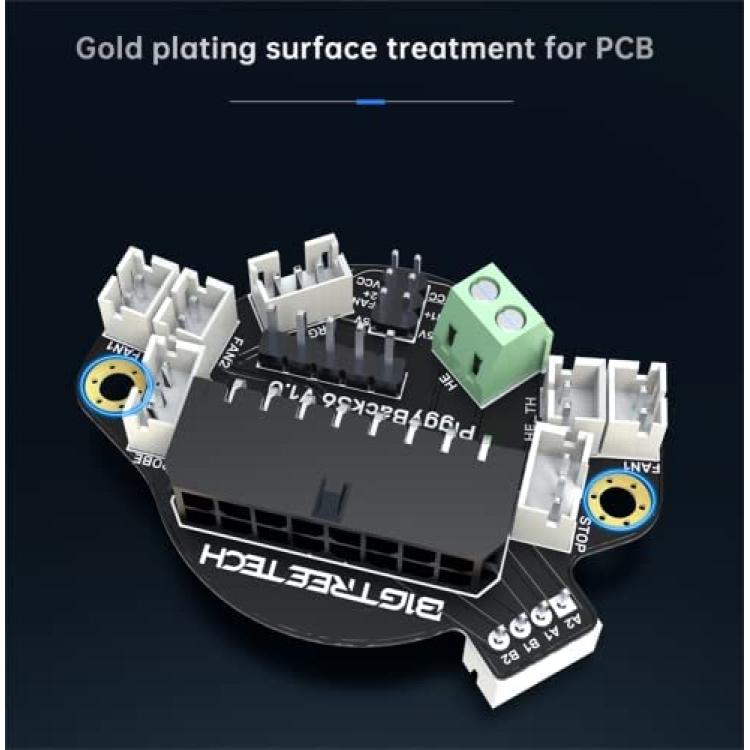

2. PiggyBack36 V1.0 tool board is coated with ENIG surface finishing, which provides with flat surface, and protects the board within using and storage.
3.Feature with 2 available voltages for fan, you can choose 5V, or VCC as you like.

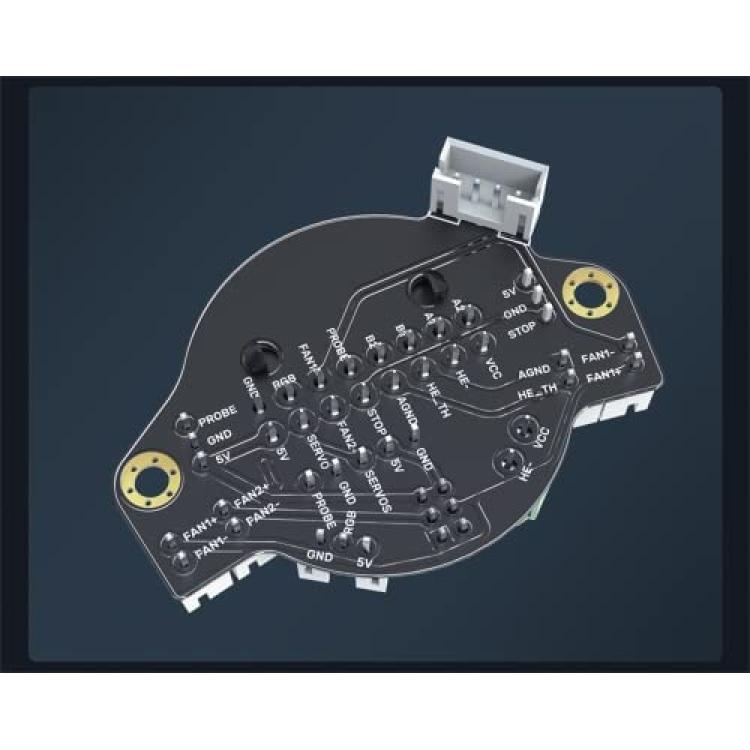

4.You can connect all the wires that need to be connected on hotend to this tool board, and get it connected with the motherboard via 2*8pin terminals.
5.Diameter:2.01"*1.42"
Beware:
1.Pay attention to the wire sequences. Otherwise, faulty wiring will get the PCB's wire fused.
2.DON'T get the board's pinhead contacted with the metal in case of short circuit.
