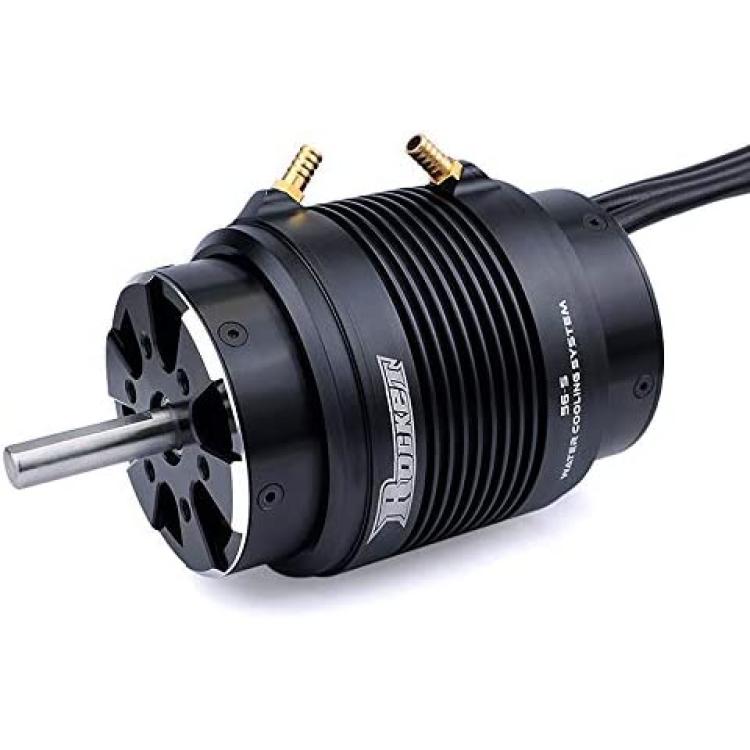

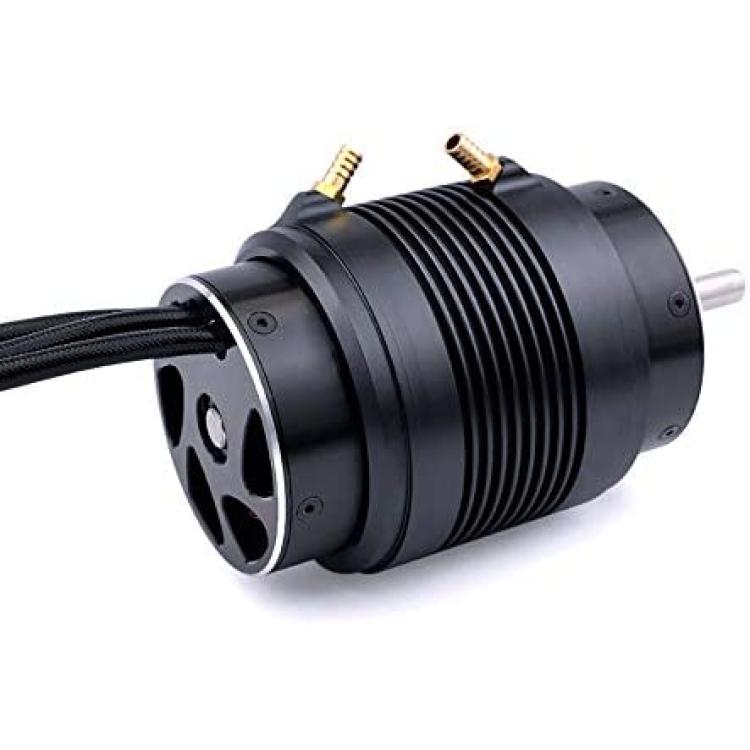

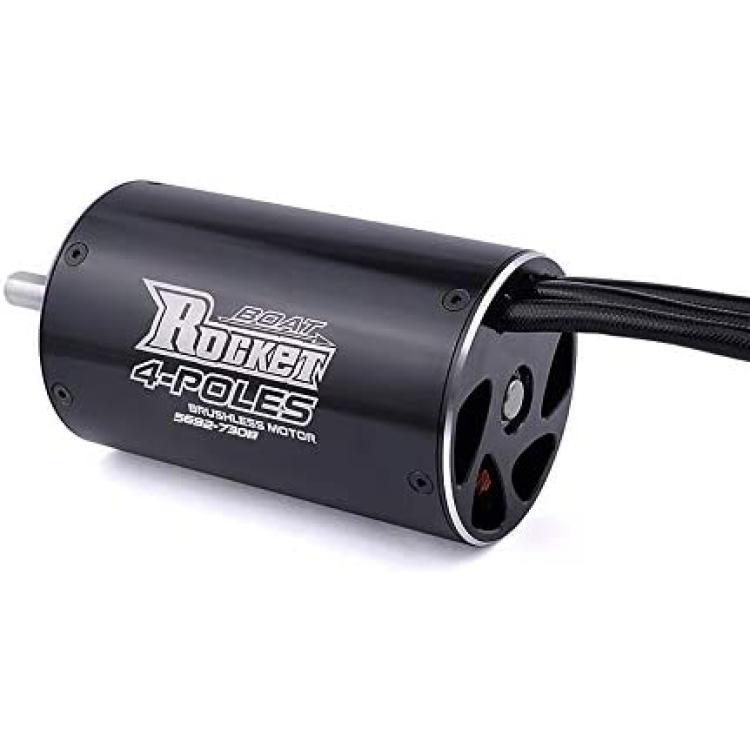

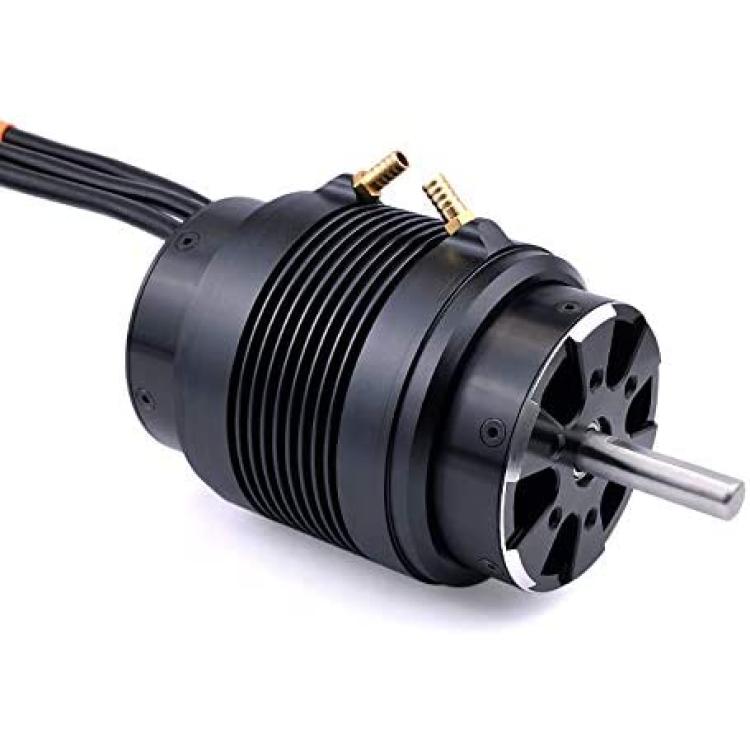

Vehicles-OCS Rocket 5692 730KV 5200W Brushless Motor w/ 56-S Water Cooling Set for Surfboard 1.5m (or Above) RC Boat

The 5692 730KV brushless motor and 56-S water cooling jacket combo equipped with high quality and efficient performance is designed to provide high power and rotation speed, the water cooling jacket ensures the motor a longer running life. Perfect for surfboard 1.5m (or above) RC boat.
Features:
4 Pole 12 slot hi-torque motor design
High purity copper windings maximizes efficiency
CNC machined 6061 T6 billet aluminum heatsink can
Specially designed for surfboard and 1.5m (or above) RC boat
Precisely balanced rotor, smoothness for best reliability and maximum RPM
Water cooling jacket with inlet and outlet fittings, O-ring seals for leak mitigation
Motor Specifications:
Brand name: SURPASS HOBBY
Item name: 730KV Brushless Motor
Watts: 5200W
Max voltage: 41V
Max Amps: 128A
Rotor Poles: 4
IO: 2.0A
Resistance: 0.0152
Kv(RPM/Volt): 730KV
Max RPM: 30000
Diameter: about 56mm
Length: about 92mm
Length of extend shaft: about 30mm
Shaft diameter: about 8mm
Connector: 8mm connector
Weight: about 905g

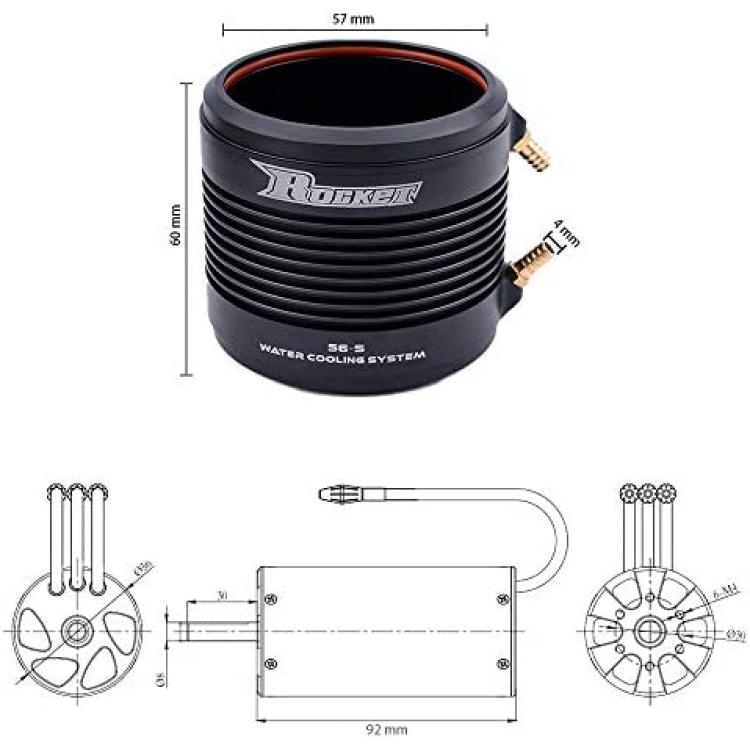

Water Cooling Jacket Specifications:
Item name.: 56-S water cooling jacket
Color: black
Designed for: 5682 5692 RC boat brushless motor
Outlet fitting diameter: about 4mm
Jacket length: about 60mm
Jacket diameter: about 57mm
Item weight: about 80g
Note: There could be some deviations due to manual measurement or slight color difference as the result of shooting scene. Thank you for your kindness
Package Information:
Package size: 17 * 11 * 7cm / 6.69 * 4.33 * 2.75in
Package weight: 1061g
General box package
Package List:
1 * 5692 730KV Brushless Motor
1 * 56-S Water Cooling Jacket
1 * Spare Parts Set

Item specifics:
Use: Vehicles & Remote Control Toy
