Vehicles-OCS Occus RC Power System Combo 1811 10g Motor and 10A ESC for Mini Airplane DIY quadrocopter Drones - (Color: 1 Set Combo 2000KV)
Description

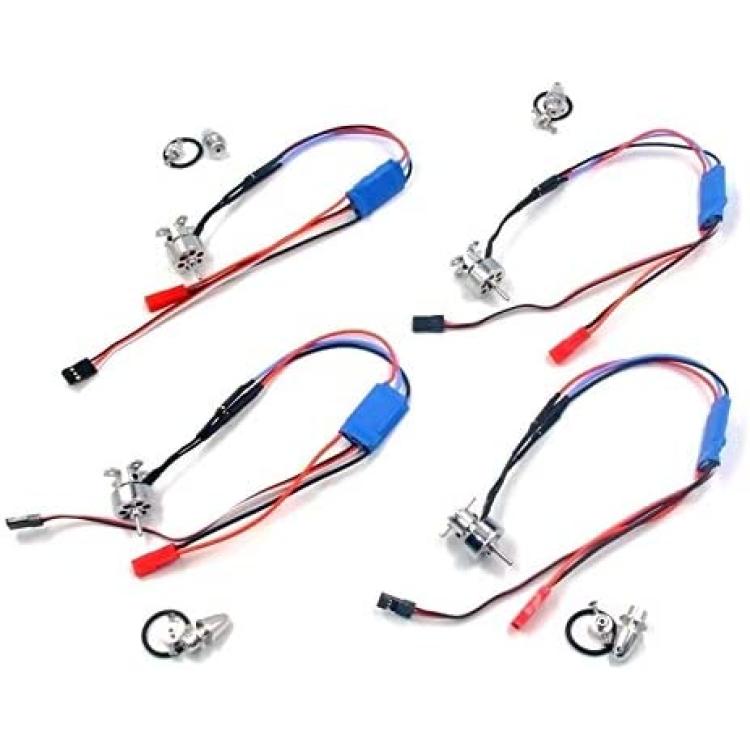

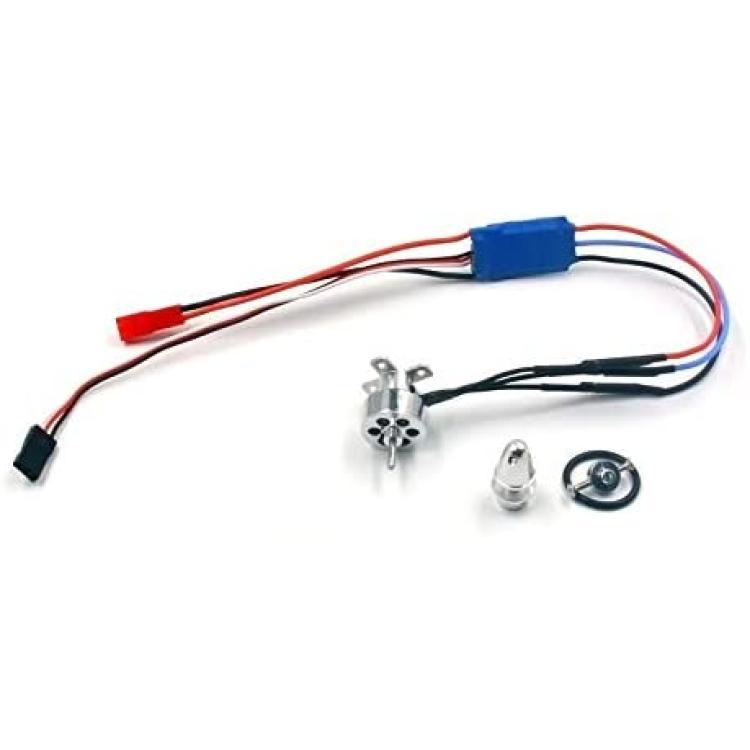

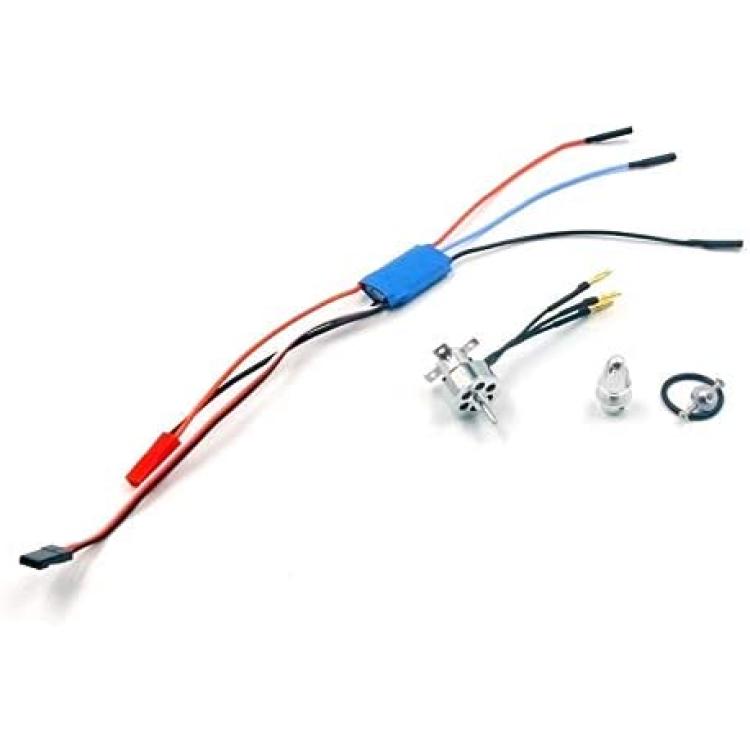

1 set combo includes:
1pc 1811-2000KV or 3800KV brushless motor with accessories (prop adapter, prop saver with rubber O-ring).
1pc 10A ESC.
with pre-installed bullet connectors and JST connector for ESC (leave me a message if you need change connector to other type)
Motor Specifications:
Motor Diameter: 17.5 mm
Motor Length: 21.8 mm
Total Length: 29.8 mm
Shaft Diameter: 2.0 mm
Weight: 10 g
ESC Specifications:
Output: Continuous 10A, Burst 12A up to 10 seconds.
Input Voltage: 2-3 cells lithium battery or 5-12 cells NiMh battery.
BEC: 5V/2A switching mode BEC.
Refresh rate of the throttle signal: 50Hz to 450Hz.
Max Speed: 240000rpm for 2 Poles BLM, 80000rpm for 6 poles BLM, 40000rpm for 12 poles BLM.(BLM = BrushLess Motor)
Size: 37mm*18mm*8mm.
Weight: 23g.
Item specifics:
Use: Vehicles & Remote Control Toys
Rc parts & accs: Motors
Size: 18*11 mm
Wheelbase: Screws
Technical parameters: Value 3
Model number: 1811 motor + 10A esc combo
For vehicle type: Cars
Material: Metal
Remote control peripherals/devices: motor+ESC combo
Tool supplies: motor+ESC combo
Upgrade parts/accessories: motor+ESC combo
Four-wheel drive attributes: motor+ESC combo
