SEWACC DC Motor Controller (PWM) 1203BB 6V 12V 24V 3A 80W Adjustable Reversible Motor Driver Switch
About this product
*Control the forward or reverse direction and the stop of DC motor through switch.
*Potentiometer with switch.
*The input power range: DC6- 28V.
*The switch cable length is 15cm.
*Color: As shown. Material: Metal. Size: 5* 3. 2* 1. 5cm.
Description
Description

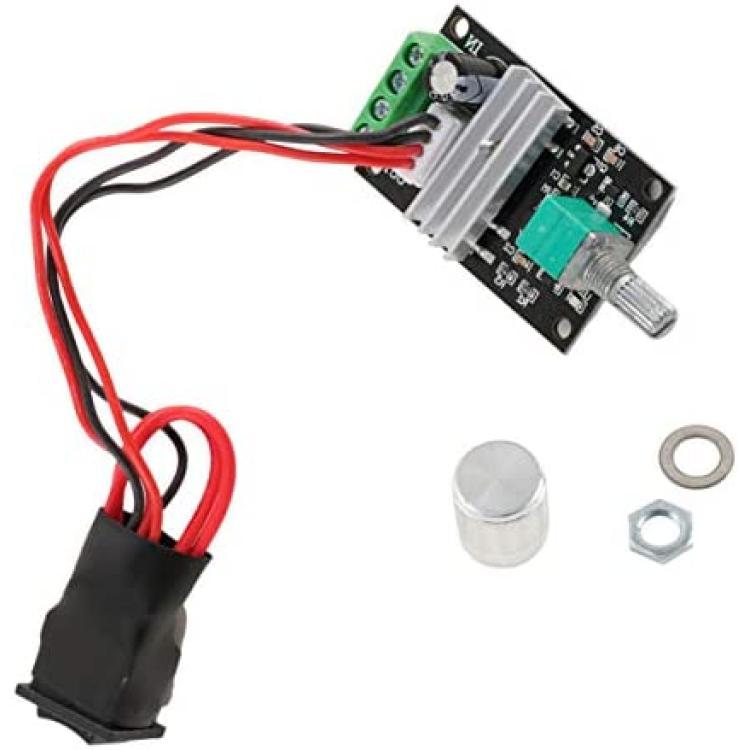

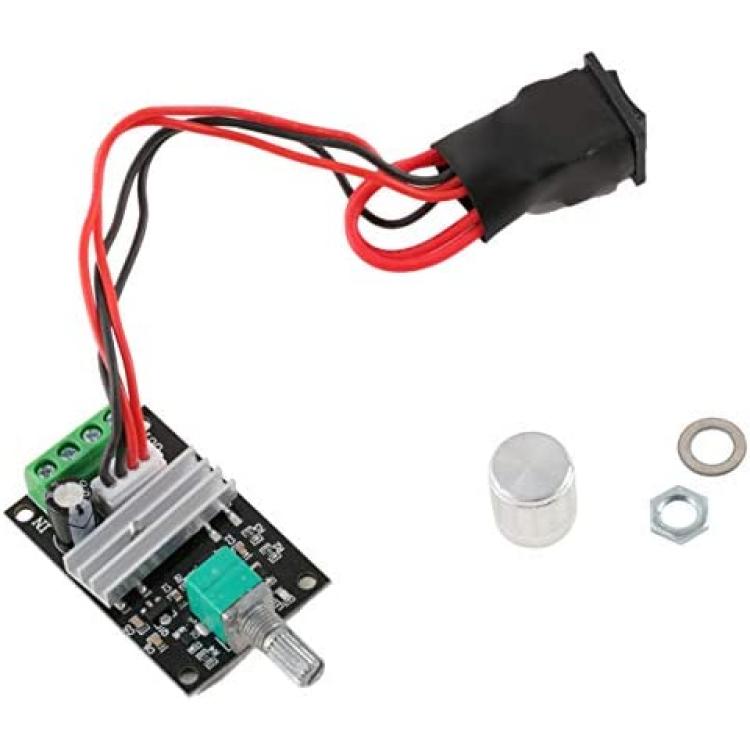

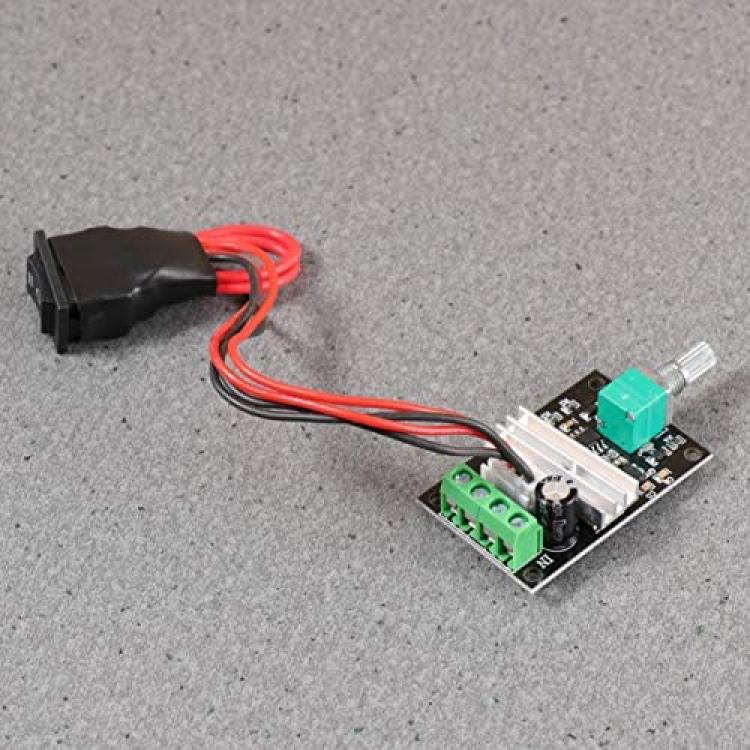

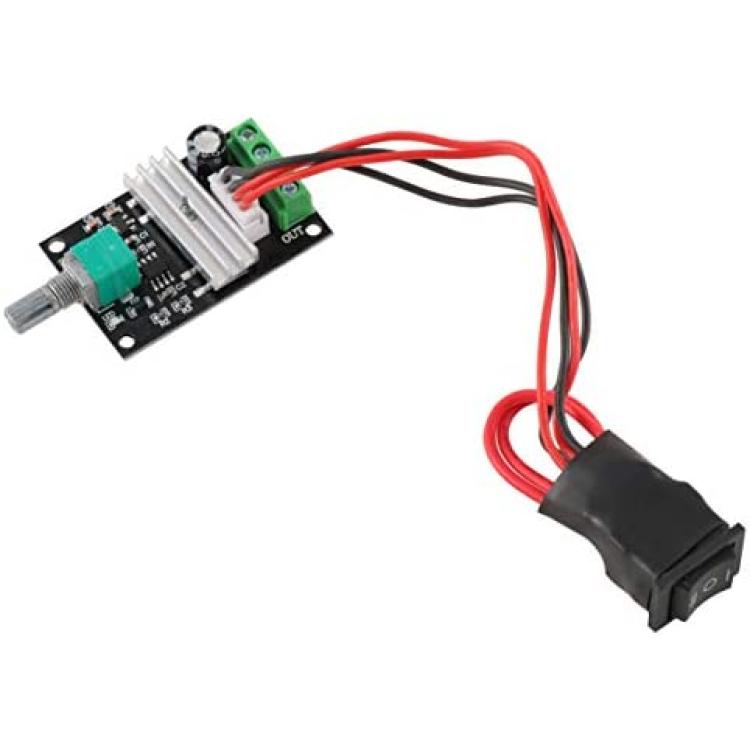

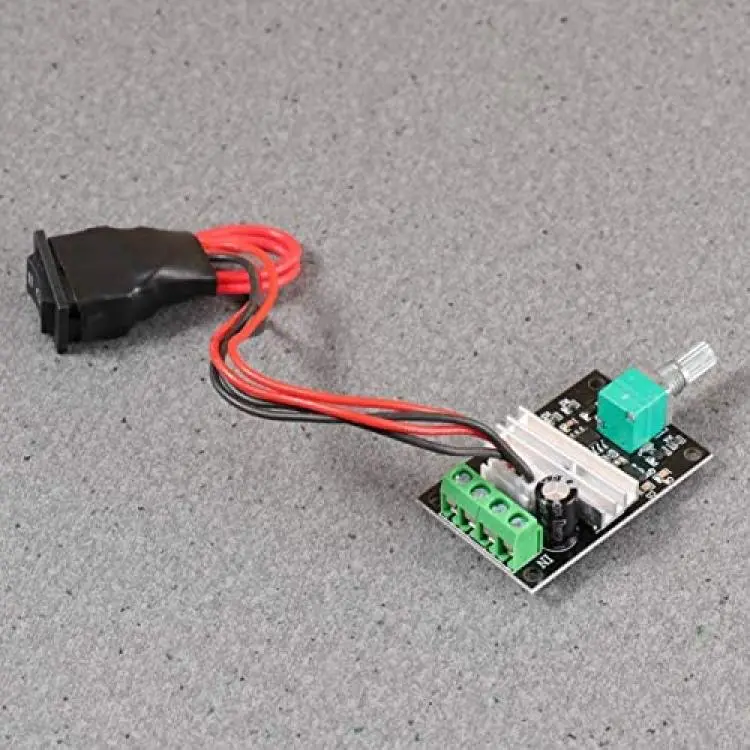

DC Motor Controller ( PWM ) 1203BB 6V 12V 24V 3A 80W Adjustable Reversible Motor Driver Switch
Features
- Color: As shown.
- Size: 5* 3. 2* 1. 5cm.
- Material: Metal.
- Input power range: DC6- 28V.
Operating instruction
Before you attempt to wire the controller, be sure that the power is off.
1. Connect wires according to the wiring diagram.
2. Turn on the power, adjust the potentiometer.
3. The LED light indicates the power up and the of motor.
Warning: Don' t reverse positive and negative power loads, which will damage the controller!
Package Including
1* DC Motor Controller
