Synchronous Synchron Motor,Turntable Motor,Electric Motor With Lamp Cord For Cup Turner,cuptisserie,Tumbler Cup Rotator with 7mm Flexible Coupling Rotisserie 100-127VAC 50/60 Hz 4W CCW/CW(3PCS 5-6RPM)
About this product
*3PCS Turner Motor : Motor Voltage: AC 100-127V; Frequency: 50/60Hz; Speed: 5~6R/Min,Power: 4W; Manner of working: CCW/CW . Motor Overall Size : 4.9 x 2cm/ 1.9" x 0.78" (D*T);Shaft Size : 7 x 15mm/ 0.27" x 0.59" (D*L) ,Mount Hole Dia. : 4.5mm/ 0.18";Cable Length : 40cm/ 16";Coupling size:the cylindrical inner diameter is 7 mm/0.275in Motor Material: Metal&Plastic, Net Weight: 85g, Main Color: Silver Tone
*3PCS 6ft switch plug cord:The external of this switch plug cord made up of PVC Plastic, and the Internal is Copper Core

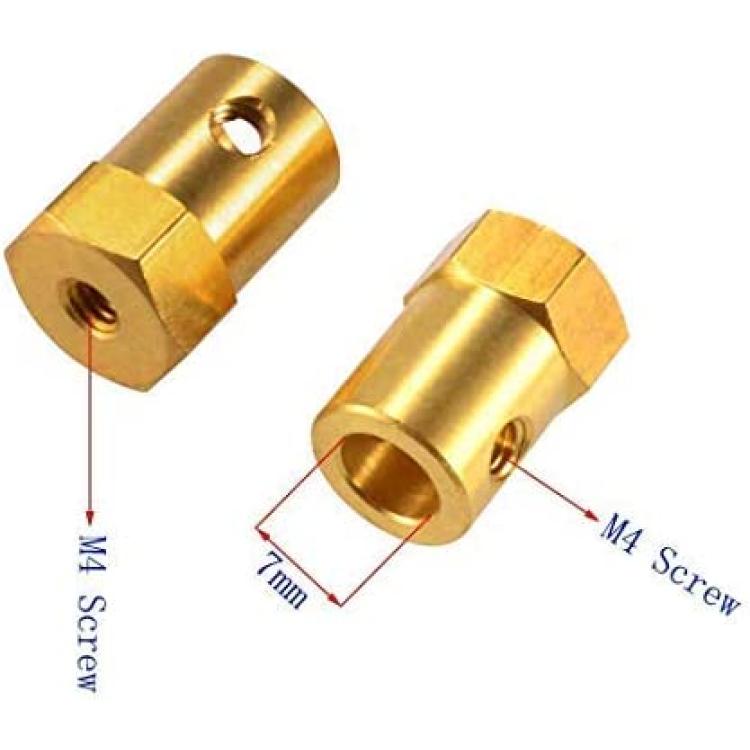

*3PCS Connector: Brass material 7mm/0.275 in length hexagon motor flexible coupling, support for any of the motor shaft diameters of 7MM/0.275in.
*3PCS Quick Connector Terminal The shell is made of high quality PVC insulation fireproof material, safe, non-toxic and corrosion resistant.it is easy to operate, saving time and effort.The surface has obvious markings.These can be used for motors, electrical controls, power supplies, household appliances, lighting, machinery and other electrical connections
*Multiple applications: Widely Used for cup turner,cuptisserie, Tumbler cup rotator, heater machine, christmas tree, Dynamic Visualizer ,Arts & Crafts lighting rod dryer, massagers, drying the epoxy, popcorn machine, power watch winder, Air conditioner,electric fan etc.
Description
HBXVD Synchronous Synchron Motor with Power Cord with 7mm/0.275in Connector with Qucik connection anti-shock terminal block , Turntable Motor Electric Cuptisserie Motor Cup Turner Motor 100-127 VAC 50/60 Hz 4W 5-6RPM CCW/CW Direction for Hand-Made, School Project, Model or Guide Motor
Description:
Synchronous motor is a kind of common AC motor.
Exciting winding use the DC excitation current, the establishment of the magnetic field.
The armature winding of three-phase symmetrical action use as the power winding.
The armature winding and the main magnetic field is doing the cutting movement.
Specification:
Rated power: 4 watts
Voltage: AC 100-127 V
Frequency: 50/ 60 Hz
Rated speed: 5-6R/MIN
Manner of working: CCW/ CW

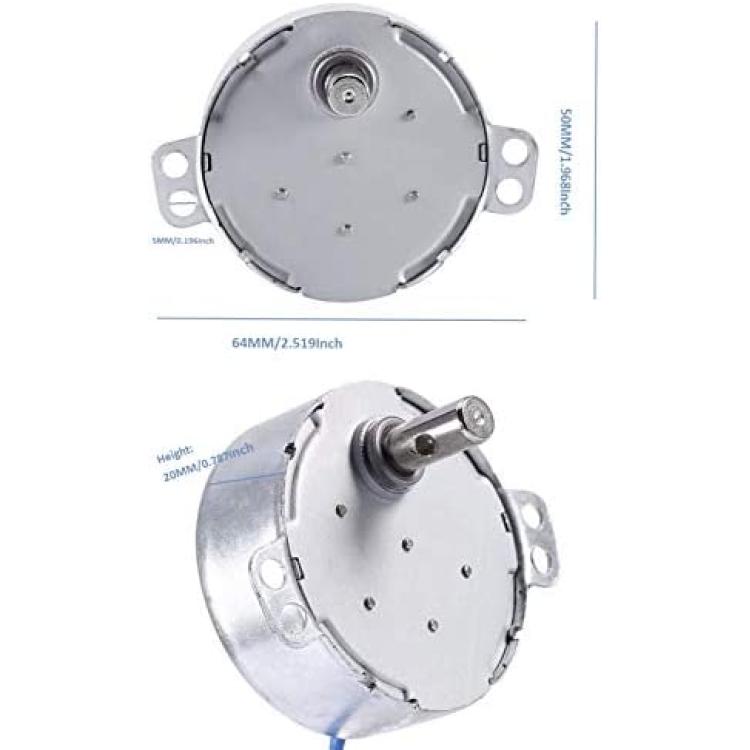

Motor size: 1.9 inch/ 4.8 cm in diameter, 1.57 inch/ 4 cm in height Cable size: 0.08 inch/ 2 mm in diameter, 15.7 inch/ 40 cm in length Shaft diameter: 7 mm Shaft length: 15 mm
Color: silver

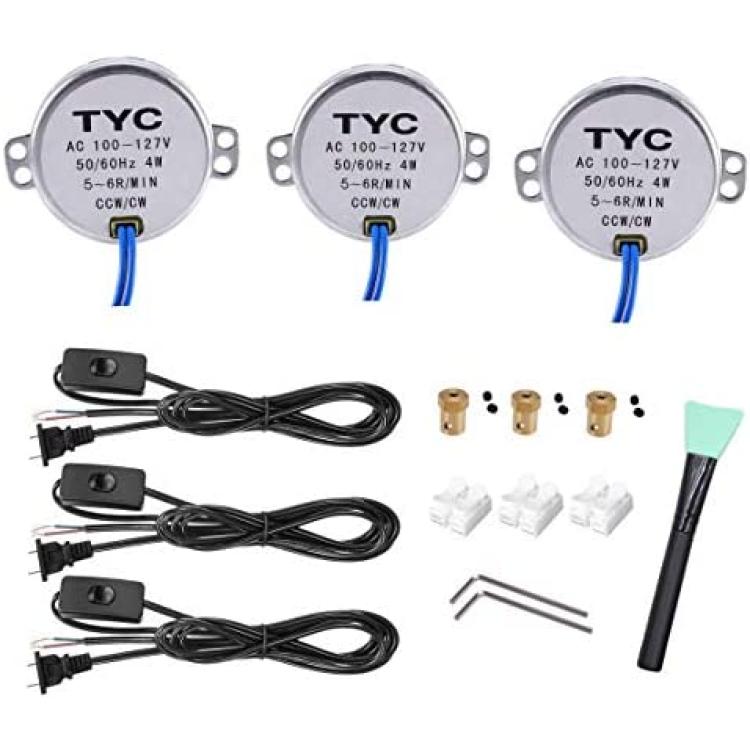

Package includes:
3pcs x 5-6RPM Turnable synchronous motor
3pcs x 6ft switch cord
3pcs x Quick connection anti-shock terminal block
3pcs x brass material 7mm/0.275in length hexagon motor flexible coupling
2pcs x Allen Wrench
6pcs x Screws
1pc x Epoxy Brush
The Cheapest Accessories for Cup turner kit for Craft Tumbler !
