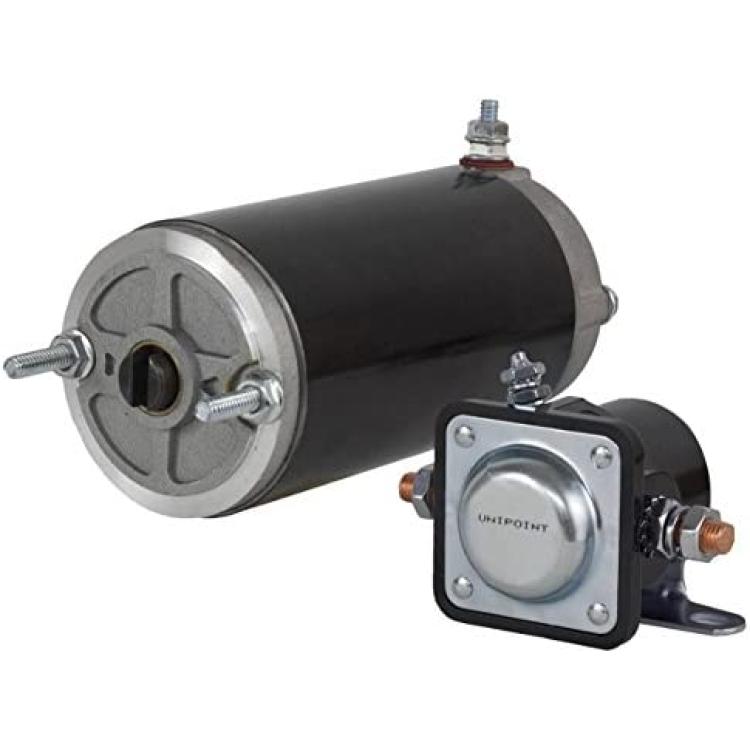

Rareelectrical NEW SNOW PLOW MOTOR ANGLE PUMP AND SOLENOID COMPATIBLE WITH MEYER MO551046A MM48826 SM48826 4882640 MM551046 MO551046AS 15054 M15054 MGL4005 MGL4105 MKW4007 46-2001 46-2415 46-4160

RAREELECTRICAL BRAND COMPATIBLE WITH CAT, CHRYSLER, DELCO, FORD, MAN, MOTORCRAFT, NIEHOFF, PRESTOLITE

ELECTRIC MOTOR

JOHNSON ELECTRIC MO551046A, MM48826, SM48826, 4882640, MM551046, MO551046AS

PRESTOLITE 46-2001, 46-2415, 46-4160, MGL4005, MGL4105, MKW4007, 46-854

WESTERN MOTOR W-8032B

MEYER 15054, M15054

SPECIFICATIONS

VOLTAGE: 12
ROTATION: CCW
FIELD HOUSING OD: 78.2MM / 3.079IN
FIELD HOUSING LENGTH: 121M
END OF UNIT TO MOUNTING BRACKETS: 142MM
OVERALL LENGTH: 161.9MM / 6.374IN
SHAFT LENGTH: 9MM
SHAFT OD: 15.9MM / 0.626IN
SHAFT NOTES: 3/16 WIDE SLOT
TERMINAL 1 SIZE: 1/4-20
APPROXIMATE WEIGHT: 6.525 LBS / 2.97 KG

SOLENOID

CHRYSLER 3225624, 3225629

C.E. NIEHOFF AL147, DR135A

CHRYSLER 1658880, 1658882, 1692658, 2084876, 3620766, 596903, CH2326, CH2332, CH2335, CH2361, LM2303

COLE HERSEE 24020, 24022-05, M24022, 24022BX

DELCO 1114205, 1114215, 1114233, 1119901, 1456, 1466, 1498, 1544, 2095360, A903, A914, D927, F900

FORD D20Z-11450-A, F-900, FD-900, SW1080, SW263

MOTORCRAFT 15-12, 15-5, 15-75, D2OZ11450A, D2SF11450AB, SW1080, SW27, SWX12, SWX75, SWY118

NATIONAL STOCK NUMBER 2920000900890, 2920001485074, 5945010900890

MEYER 15370

POLLAK 52-303 ,52-303P

PRESTOLITE 15-426, 15-5, SAZ4201E, SS4008, SS4011, SS4023, SAS-4203C92

VOLTAGE: 12 VOLTS
NUMBER OF TERMINALS: 3
DUTY CYCLE: INTERMITTENT DUTY
NEW OR REMANUFACTURED: NEW

NOTES:
GROUNDED BASE, MOUNTING BRACKET HOLES 9/32X 1/2, 2-7/32 CENTER-TO-CENTER


APPLICATIONS

PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.

MEYER
HYDRAULIC PUMP MOTORS VARIOUS MODELS
