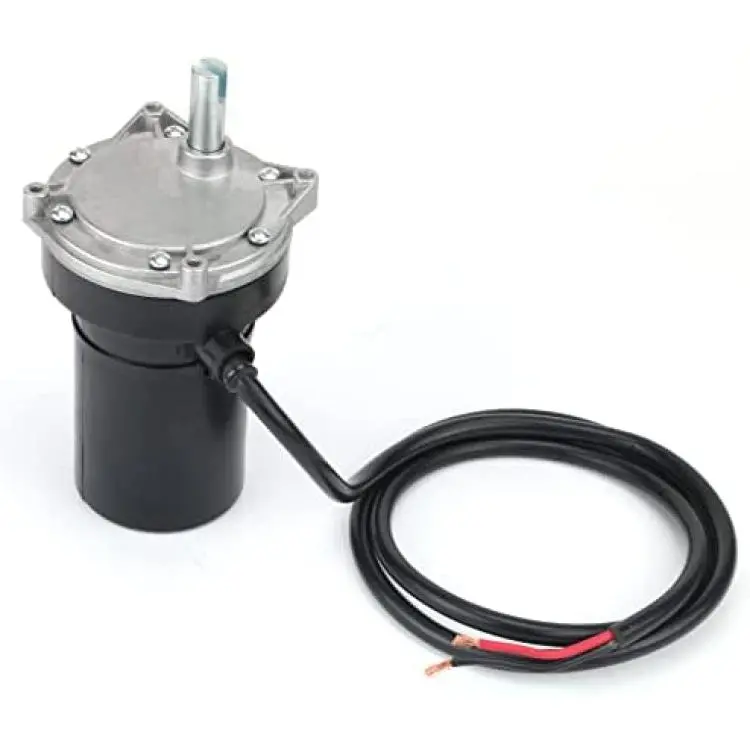

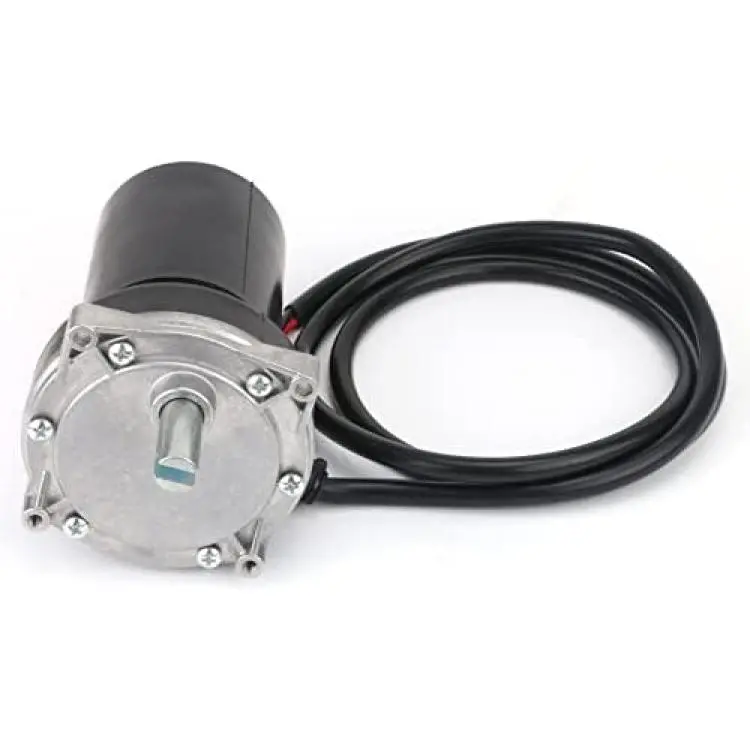

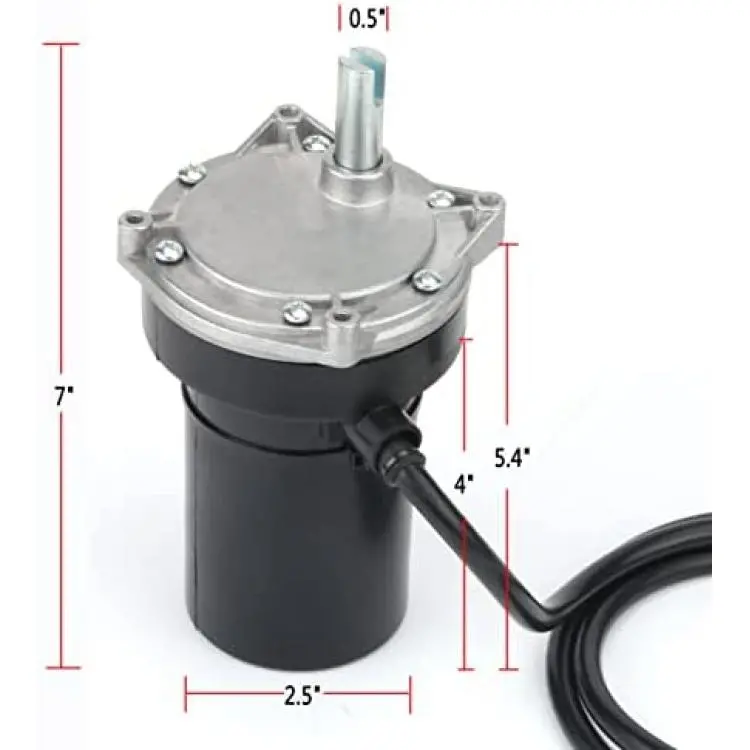

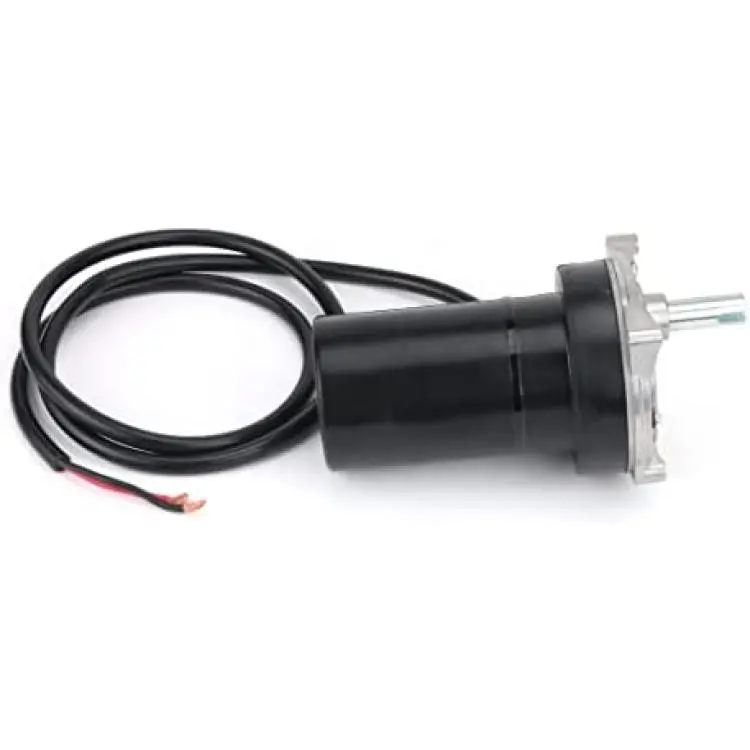

STHRAGERV Electric Stabilizer Jack Motor Compatible with Lippert 113407, 352338, 138445, 178562, 162307, Rear Stabilizer Motor Replacement: K01285-C800, K01285C800, K01531A800 K01531-A800

Remove the two weatherproof wire nuts joining the motor to the harness, and then pull the wires free of their splices.

Using a number four hex bit remove the two hex screws on the exterior of the motor, then remove the two screws coupling it to the frame of the stabilizer. Set the screws aside for later then uninstall the motor.

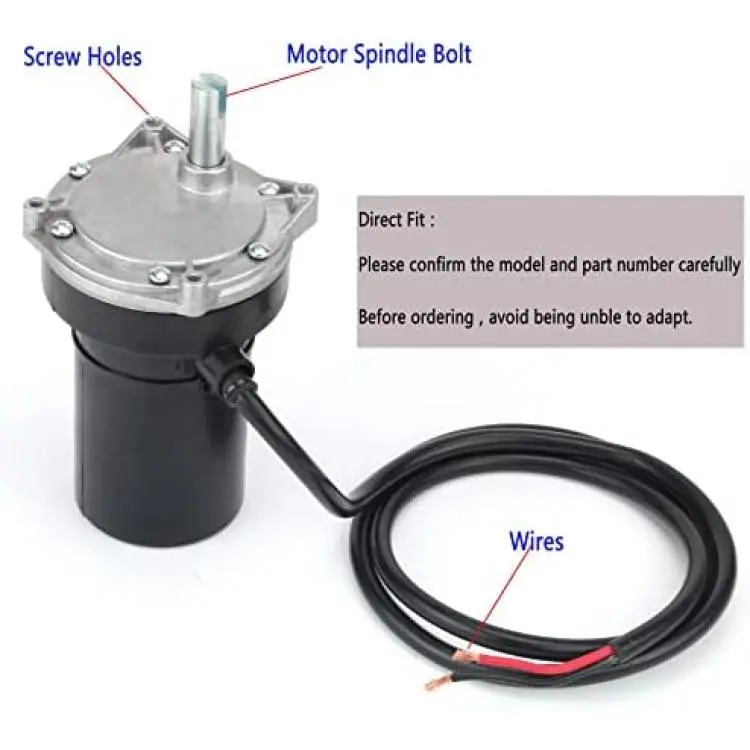

Install a new motor by joining the motor spindle bolt to the receptacle.

Using a number four hex bit to install the two inboard facing mounting screws, then install the two outward-facing screws to secure it to the frame.

Splice the motor leads into the electrical harness and secure the splice using weatherproof wire nuts. Tuck the wire nuts and leads into a secure position on the underbody of your unit.

Test the unit to make sure it’s running correctly to complete your installation.
