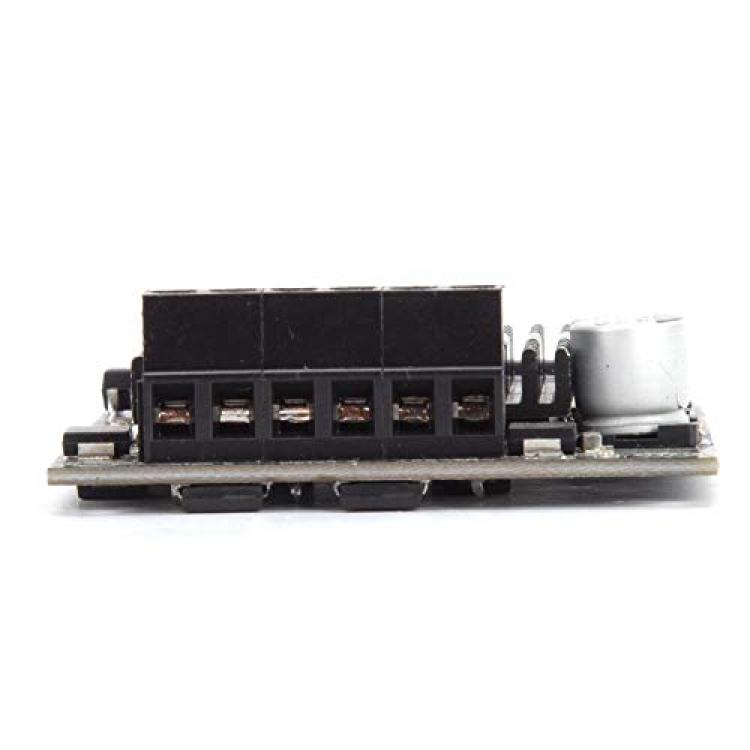

DC Motor Driver Module Double Channel H-Bridge 60A High-Power Motor Driver Controller Module PWM Driving Board for Robot Competition Smart Car
Availability: Pre-Order, Inquiry Price
About this product
*10M high-speed optocoupler is used to isolate the input signal, effectively preventing the interference of the driver board to the control board, making the system more stable and reliable.
*When driving the motor, the maximum rated current of the module can reach 60A, and the on-resistance is only 0.003 ohm, ideal for robot competitions, car competitions, etc.
*The basic components of the drive module body are patches, which has a high degree of integration

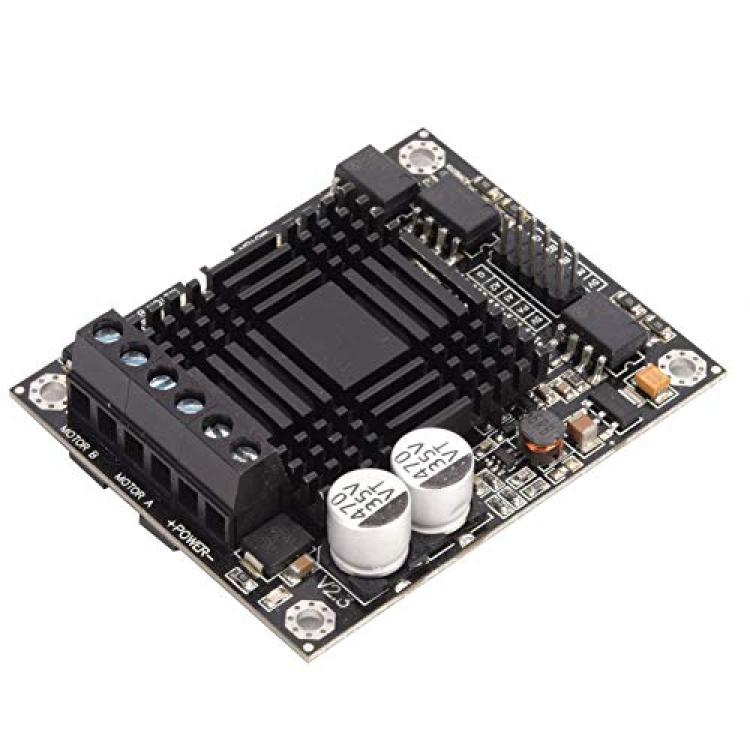

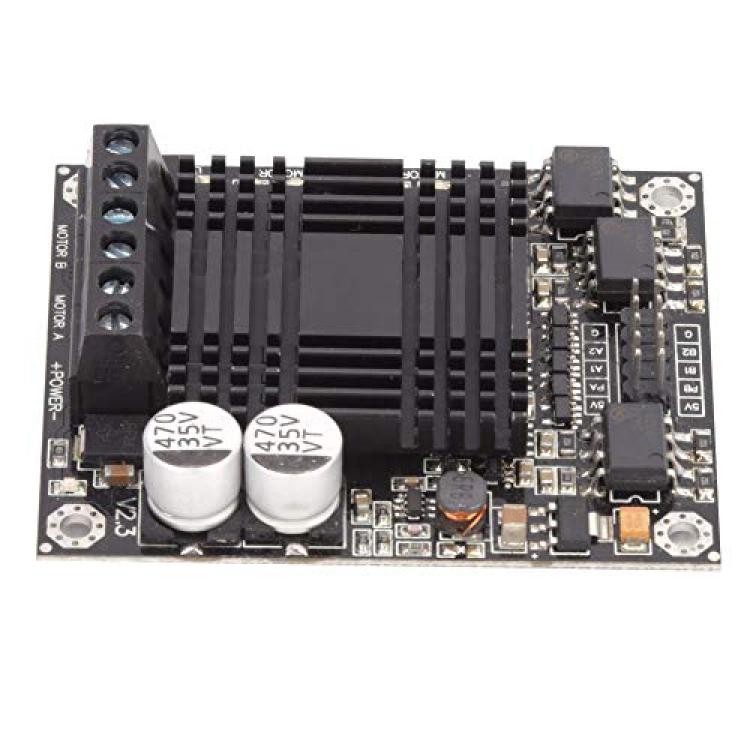

*Well-designed layout, beautiful and small size, onboard two high-power DC motor drives, high switching frequency, up to 60KHZ
*The large heat sink can effectively dissipate the drive module under high current and maintain the good stability of the module.
Description
Specification:
Item Type: DC Motor Driver Module
The control interface is very simple: when A1.A2 = 0.0 is the brake; when A1.A2 = 1.0 is the forward rotation; when A1.A2 = 0.1 is the reverse rotation; PA is the PWM input (motor speed adjustment); G is for the control board Common ground pin (channel B is controlled in the same way)
Both 3.3V and 5V microcontrollers can control this module, and only need one motor power (12V ~ 30V)
Package List:
1 x Module
Note:
please note that the new type and old type of this product will be sent randomly,and make sure you will not mind before ordering.
