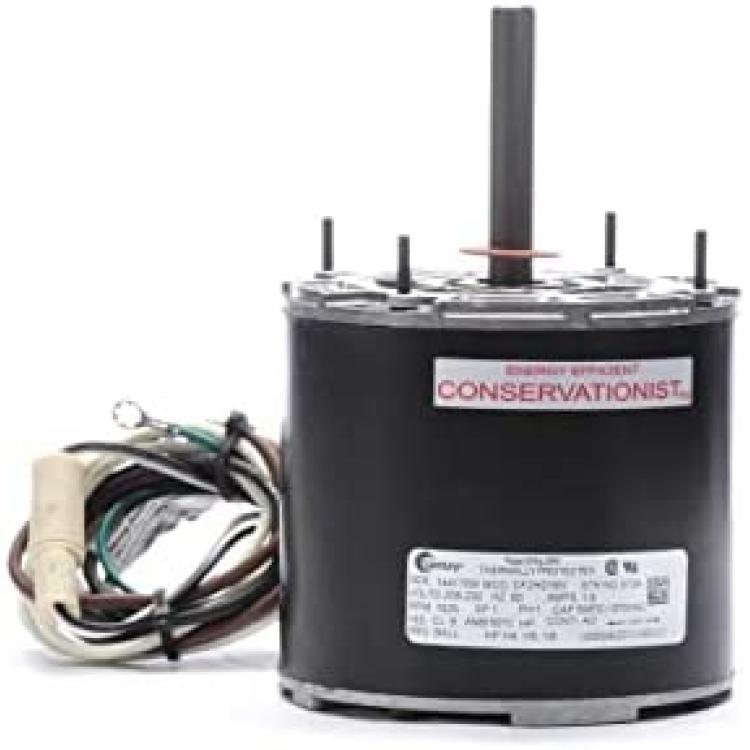

Model 9724 Century Condenser Fan Motor 5

Model 9724 Century Condenser Fan Motor 5" Diameter Multifit 1/4, 1/5, 1/6 hp; 1625 RPM

Brand: ‎Century Electric Motor
Product Code: MM1274
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*1.6 amps, 208-230V; Lead length 36"; Shaft 1/2" x 3"

*MultiFit motors replace motors with a 4.33, 4.42 and 4.62 mounting bolt circle

*Water-resistant reversing plug; Ball Bearings

*Mount Shaft up or down; 60° C Max Ambient Temperature

*One year warranty

Description

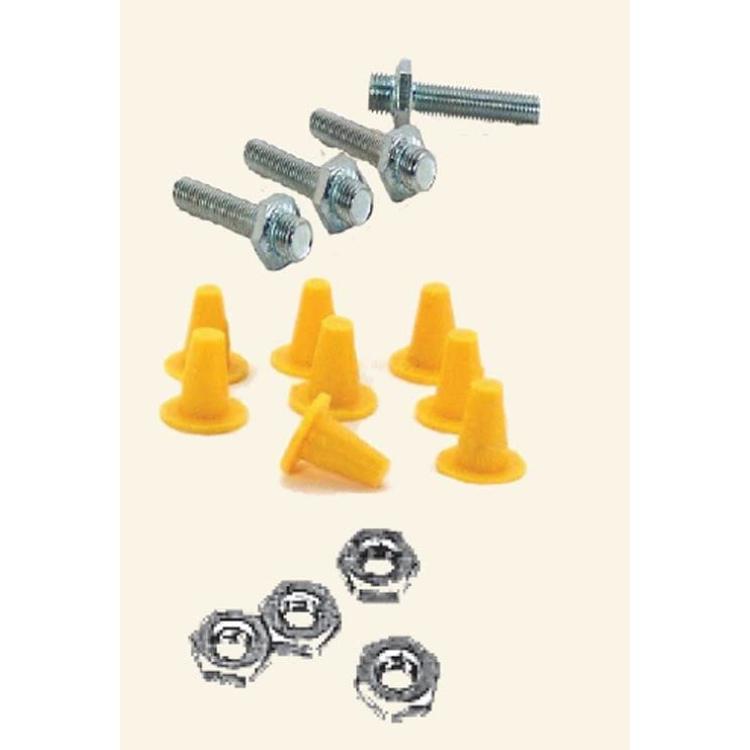

Multi fit mounting system replaces replace hundreds of 1/4, 1/5, 1/6, 1/8, 1/10 or 1/12 horsepower condenser fan applications – with one simple connection. MultiFit motors replace motors with a 4.33, 4.42 and 4.62 mounting bolt circle. For quick and easy installation, each MultiFit motor is supplied with: Durable collar studs with 5/8” extension, 8-32 threads; Extra mounting nuts with locking feature; Easy-to-install plugs; Mounting instructions with easy-to-read diagrams. 60° C Max Ambient Temperature; Class B Insulation; Totally Enclosed; All Angle Mount; UL & CSA Recognized.
