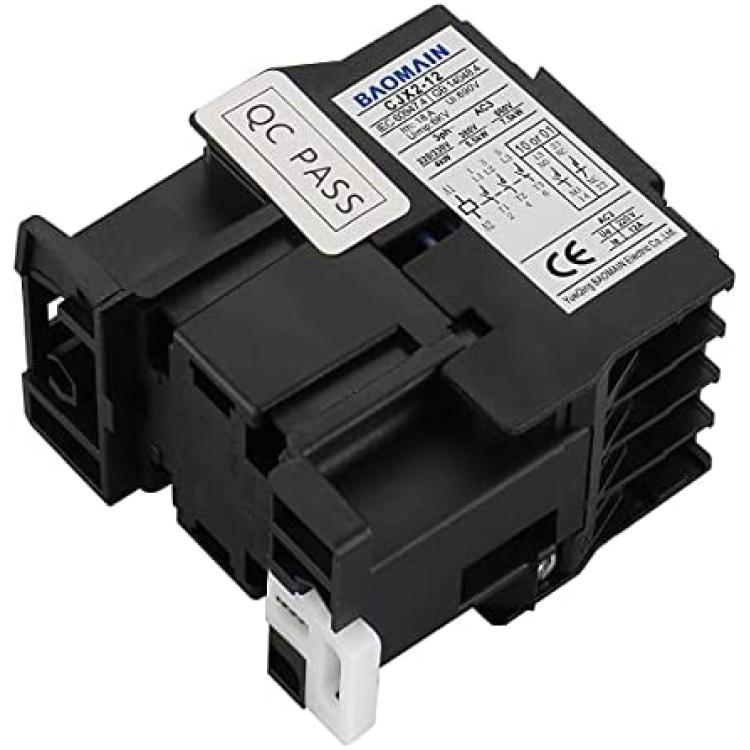

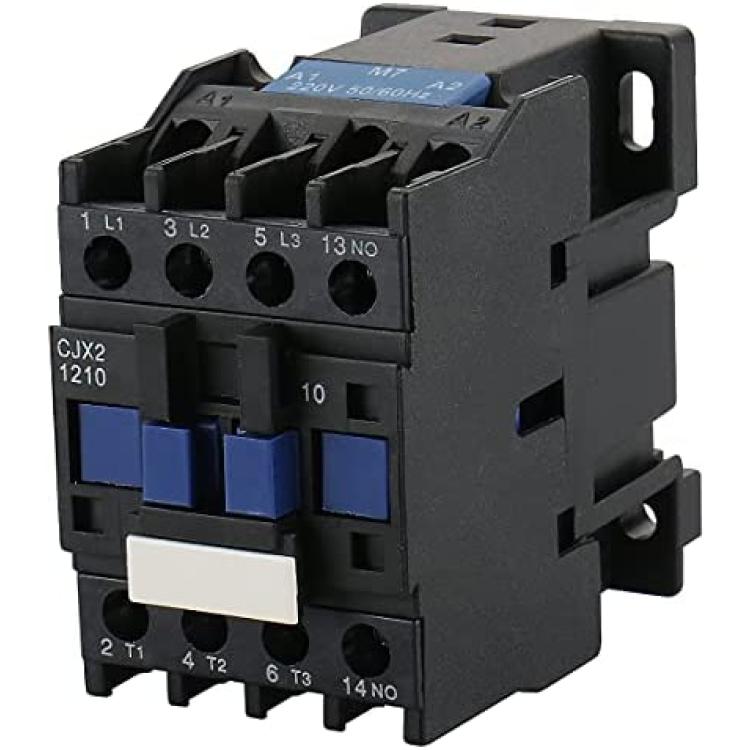

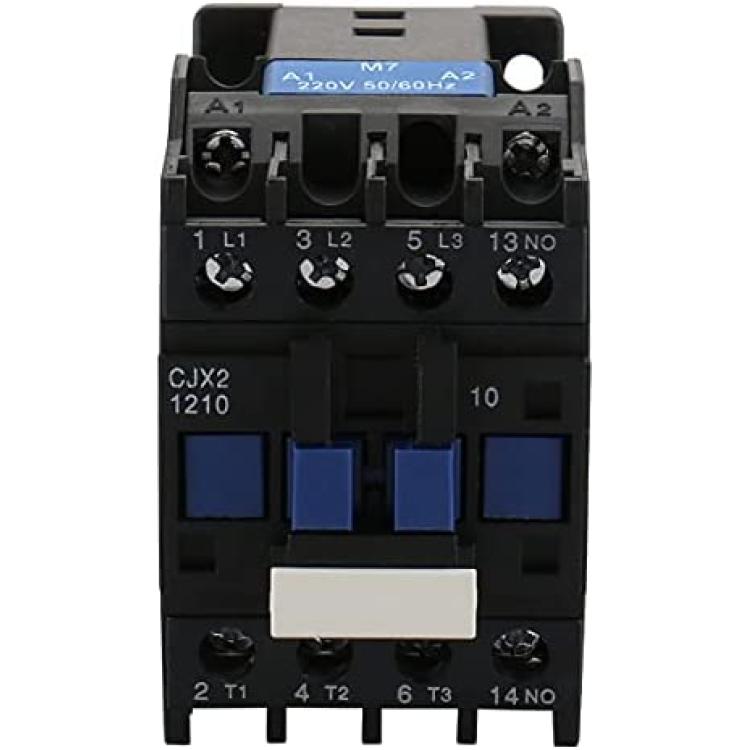

Baomain Motor Controller AC Contactor CJX2-1210 220-230V 50/60Hz 3 Phase 1NO 660V 20A
Product Code: MM1252
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
About this product

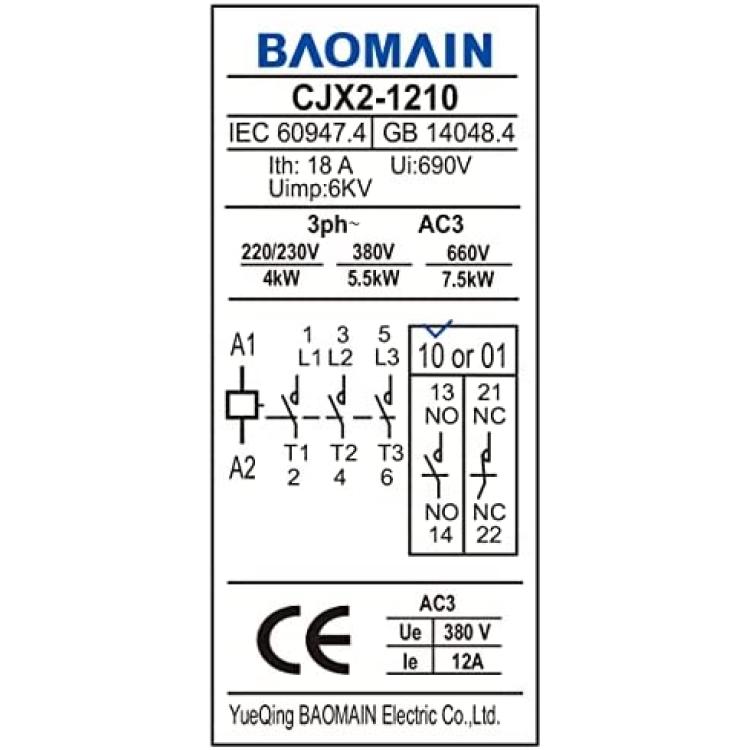

*Product Name : AC Contactor; Model Number : CJX2-1210; Contact Type : 1NO
*Rated Coil Voltage : 220-230V 50Hz, 220-240V 60Hz; Rated Insulation Voltage(Ui) : 660V
*Rated Operational Current(Ith) : 20A;AC-3 Rated Voltage (Ue) & Controled Power (Pe) : 220VAC 3KW, 380VAC 5.5KW, 660VAC 7.5KW

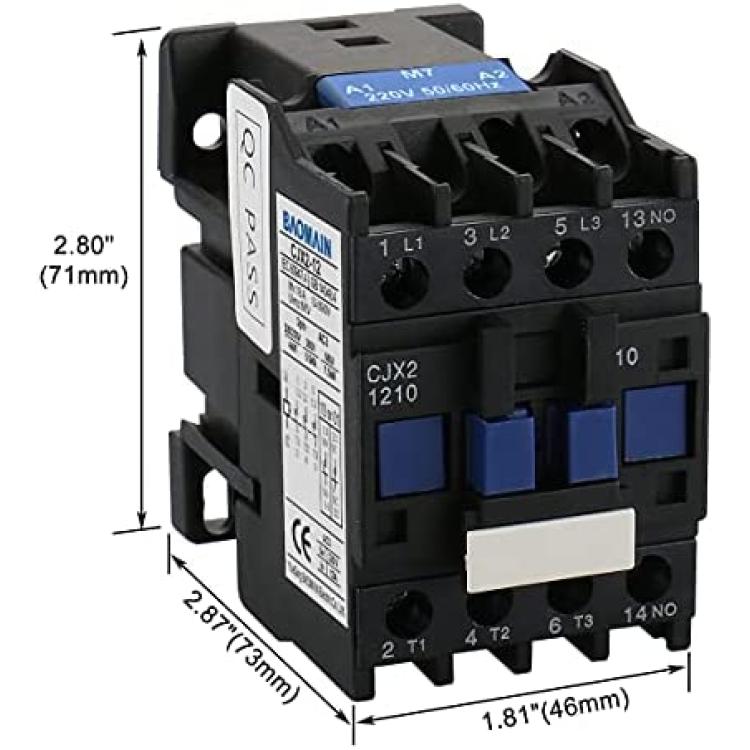

*Pole Number : 3 Phase; Mounting Type : DIN Rail; Overall Size(Approx) : 7.5 x 4.5 x 8.5cm / 2.95
*Weight : 365g; Package Content : 1 x AC Contactor
Description
Features:DIN rail Mounting.AC Contactor is suitable for long-distance making and breaking circuit.Frequently starting and controlling the AC motors.
