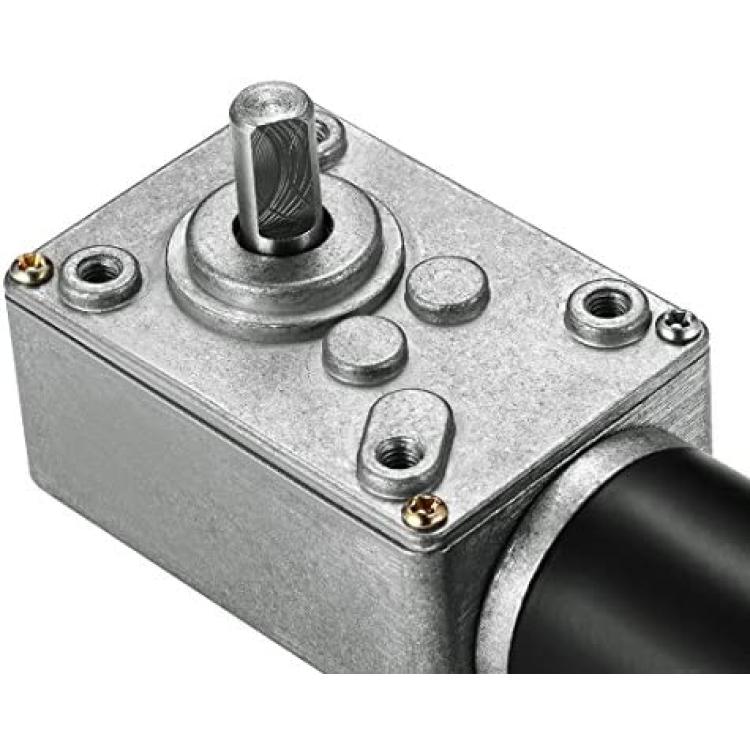

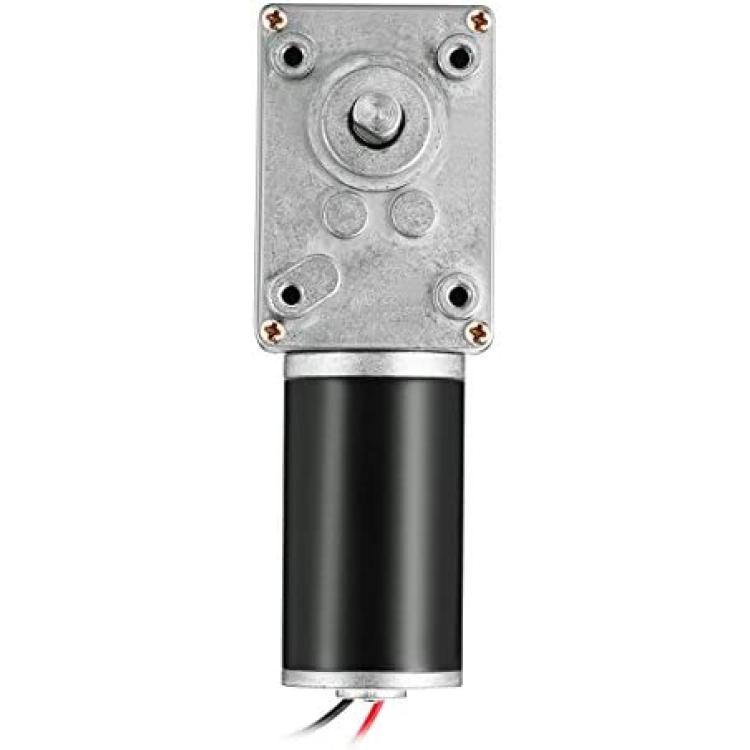

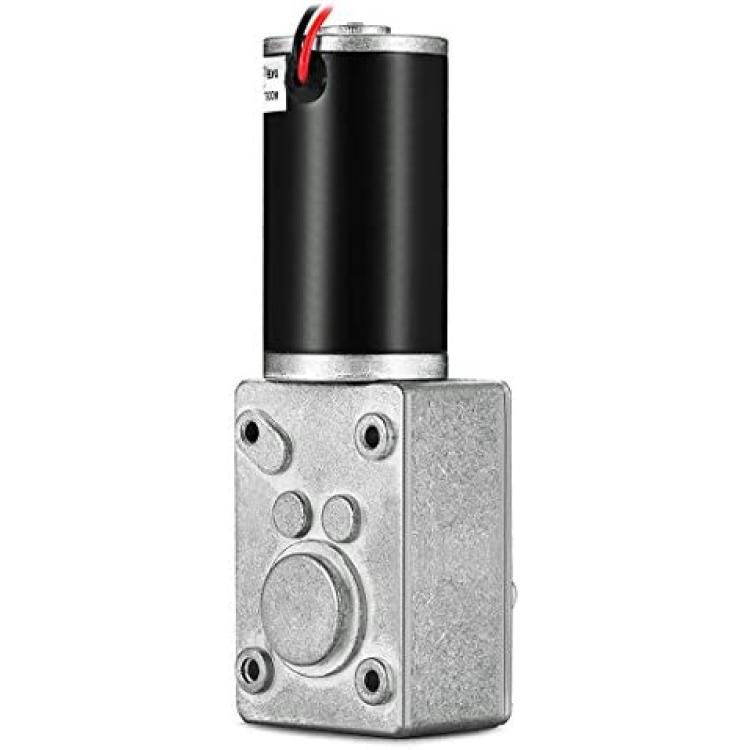

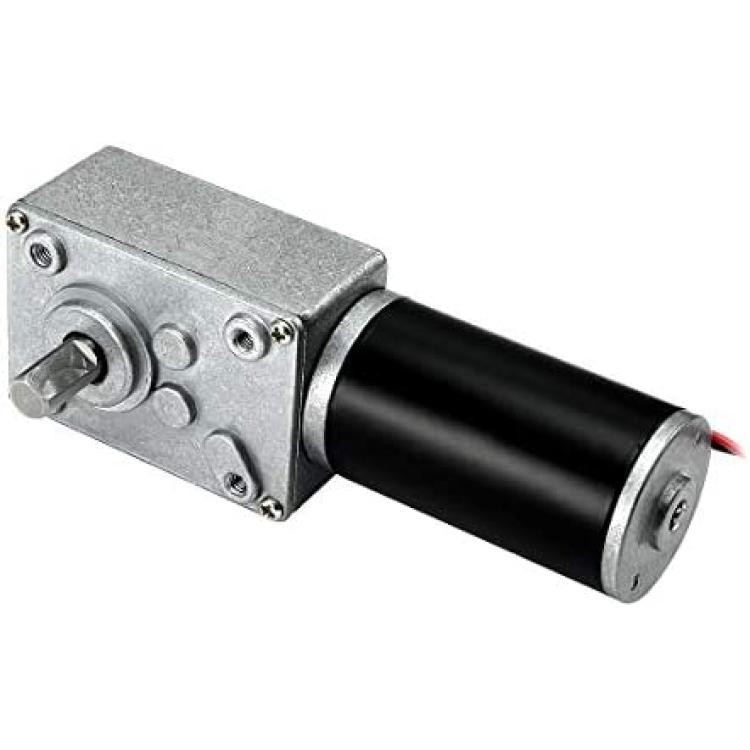

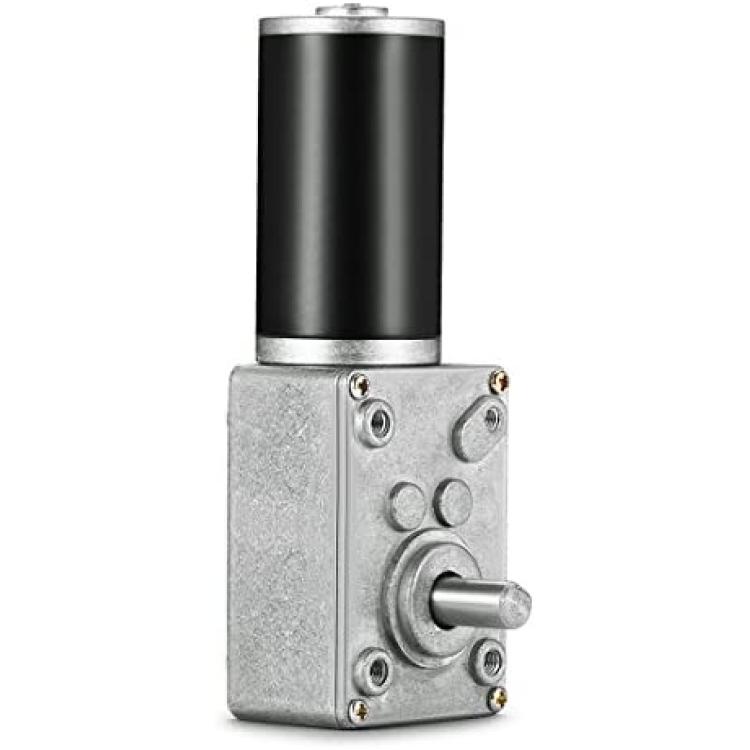

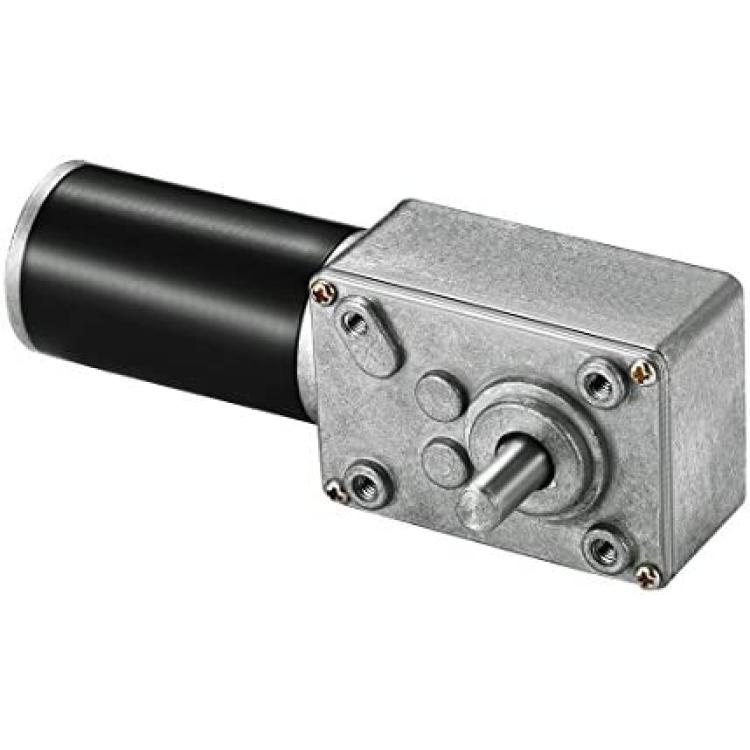

uxcell DC12V 65RPM High Torque Electric Power Speed Reduce Turbine Worm Gear Box Motor
About this product
*Technical Specification: Rated Voltage: 12V DC; No-Load Speed: 65RPM; No-Load Current: 110mA; Rated Torque: 10kg-cm / 8.7lb.in; Stall torque: 42kg-cm / 36.5lb.in; Mounting Screw Size: M4 (not included).
*Dimensions: Output Shaft Diameter: 8mm; DC Motor Body Dimensions: 31 x 57mm / 1.22" x 2.24"(D*L); Gear Box Dimensions: 58 x 40 x 35mm / 2.28" x 1.57" x 1.37"(L*W*H).
*Feature - Gear DC Motor with Micro-Turbine Worm, change the motor rotation by changing the wiring-connection . With self-lock function, the output axis will be fixed when the motor is without electricity.
*D-Shaped Output Shaft, arranged vertically with the motor shaft and is relatively short, fit for different occasions that require special installation size.
*Application: Bank Equipment, Safe Box, Paper Feeder, Intelligent Gas Meter, Machine, Accessory of Ad Equipment, Analysis Instrument, Electronic Game Machine, Remote Control Curtains, Locks, Paper Shredders, Copying Machines, and Safes Inner.
Description
Description:
This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed . It is also have addition two characteristics:
1. With self-locking design, the output shaft can not rotation when switch off, that is self-locking.
2. Gearbox output shaft and motor shaft are come to be a rectangle, it is widely used in various of occasions that require special install size.
Specification:
Rated Voltage: 12V DC;
No-Load Speed: 65RPM;
Output Shaft Diameter: 8mm;
DC Motor Body Dimensions: 31 x 57mm / 1.22inch x 2.24inch(D*L);
Gear Box Dimensions: 58 x 40 x 35mm / 2.28inch x 1.57inch x 1.37inch(L*W*H);
Wire Length: 20cm;
APPLICATIONS: Bank Equipment, Safe Box, Paper Feeder, Intelligent Gas Meter, Machine, Accessory of Ad Equipment, Analysis Instrument, Electronic Game Machine, Remote Control Curtains, Locks, Paper Shredders, Copying Machines, and Safe Inner.
