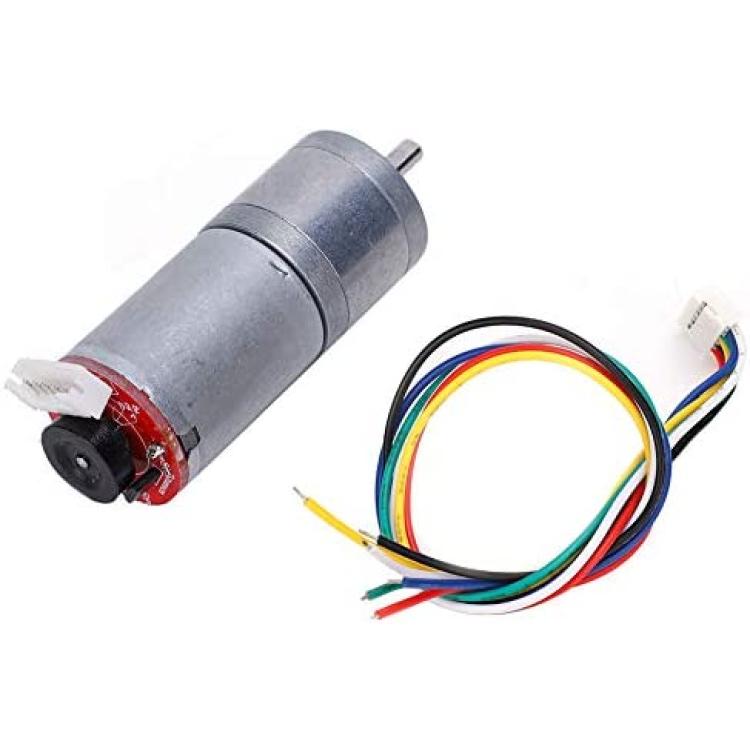

GA25-370 Gear Motor DC with Speed Encoder, Stainless Steel High Torque Electric Micro Speed Reduction Geared Motor Brush DC Motors Reducer Copper (DC12V 300RPM)
About this product

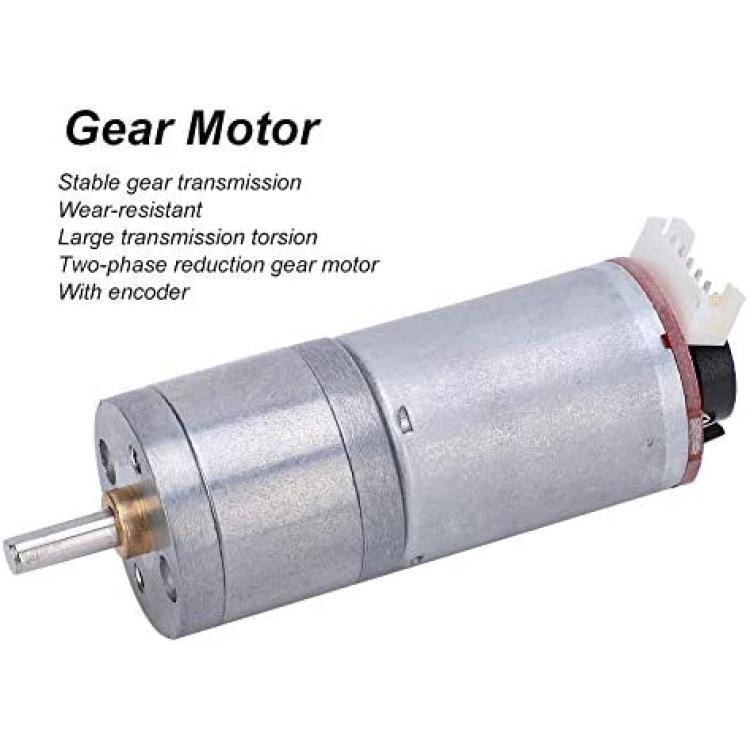

*[Large transmission torque]: Gear Motor DC with Speed Encoder has stable gear transmission, high efficiency, wear resistance and large transmission torque.
*[Equipped with encoder]: Equipped with a two-phase geared motor with encoder, powerful and practical.

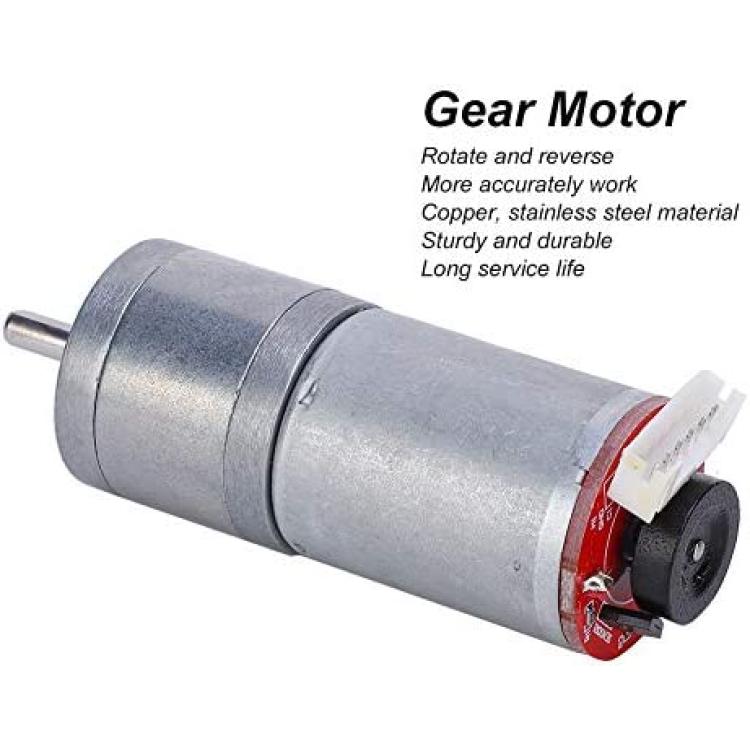

*[Support rotation and reversal]: The speed encoder gear motor can support rotation and reversal, so that the work is more accurate.
*[Support rotation and reversal]: The speed encoder gear motor can support rotation and reversal, so that the work is more accurate.
*[After-sales service] GA25-370 brush DC motor has passed quality inspection before leaving the factory, you can use it with confidence, if you have any questions, please contact us as soon as possible.
Description
Specification:
Item Type: Gear Motor
Material: Copper, stainless steel
Model: GA25-370

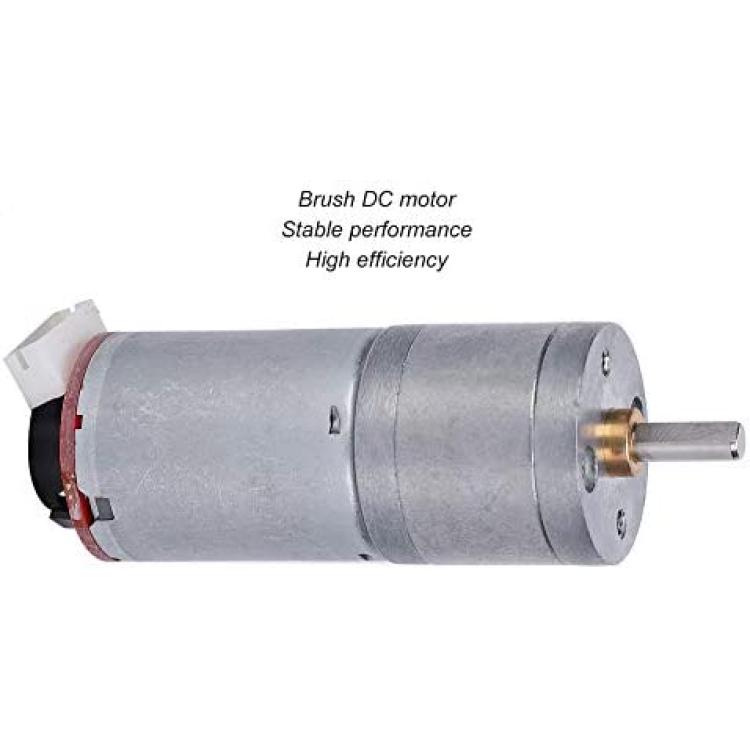

Motor Type: Brush DC motor
Parameter:

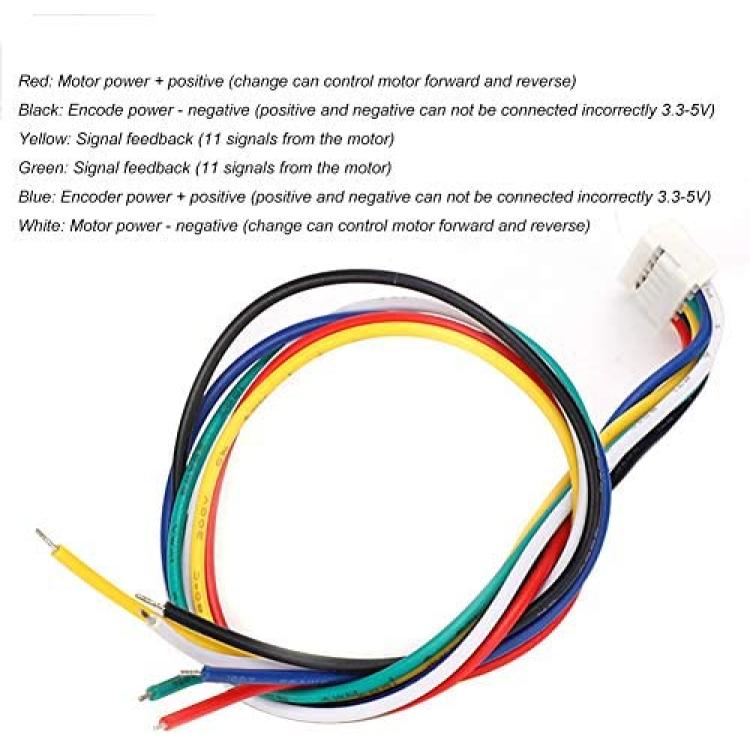

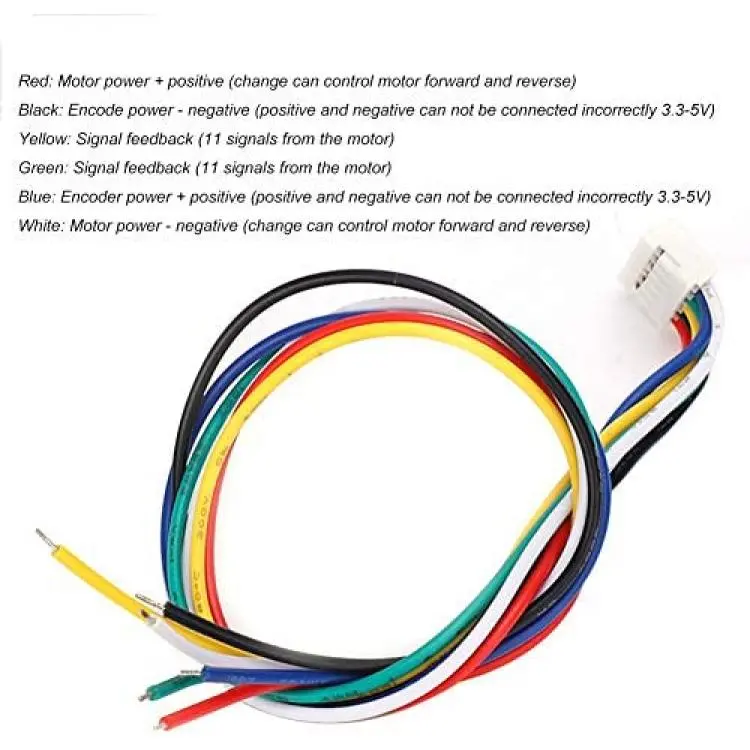

VoltageReduction ratioGear box L length(approx.)No-loadLoadBlock loadRotate speedCurrentRotate speedCurrentTorsionCurrentTorsion12V1:50027mm / 1.1in10RPM60MA8RPM300MA440g.cm4A14.9KG.CM12V1:23027mm / 1.1in30RPM60MA22RPM300MA560g.cm1.1A14.7KG.CM12V1:10323mm / 0.9in60RPM60MA51RPM300MA320g.cm1.1A12.75KG.CM12V1:6023mm / 0.9in100RPM60MA78RPM300MA260g.cm1.1A11.2KG.CM12V1:4421mm / 0.8in150RPM60MA118RPM300MA160g.cm1.1A9.2KG.CM12V1:2021mm / 0.8in300RPM60MA235RPM300MA160g.cm1.1A5.6KG.CM12V1:2021mm / 0.8in500RPM70MA477RPM300MA150g.cm1.1A3.5KG.CM12V1:1021mm / 0.8in1200RPM100MA1046RPM300MA45g.cm1.1A3.3KG.CMRed: Motor power + positive (change can control motor forward and reverse)
Black: Encode power - negative (positive and negative can not be connected incorrectly 3.3-5V)
Yellow: Signal feedback (11 signals from the motor)
Green: Signal feedback (11 signals from the motor)
Blue: Encoder power + positive (positive and negative can not be connected incorrectly 3.3-5V)
White: Motor power - negative (change can control motor forward and reverse) Size:
Approx. 3.5mm / 0.1in
Approx. 8mm / 0.3in
Approx. 12mm / 0.5in
Approx. 2.5mm / 0.1in
Approx. 31mm / 1.2in
Approx. 40mm / 1.6in(for reference)
Approx. 17mm / 0.7in
Package List:
1 x Gear Motor Note:
Please allow 0.1mm error due to manual measurement. Thanks for your understanding.
