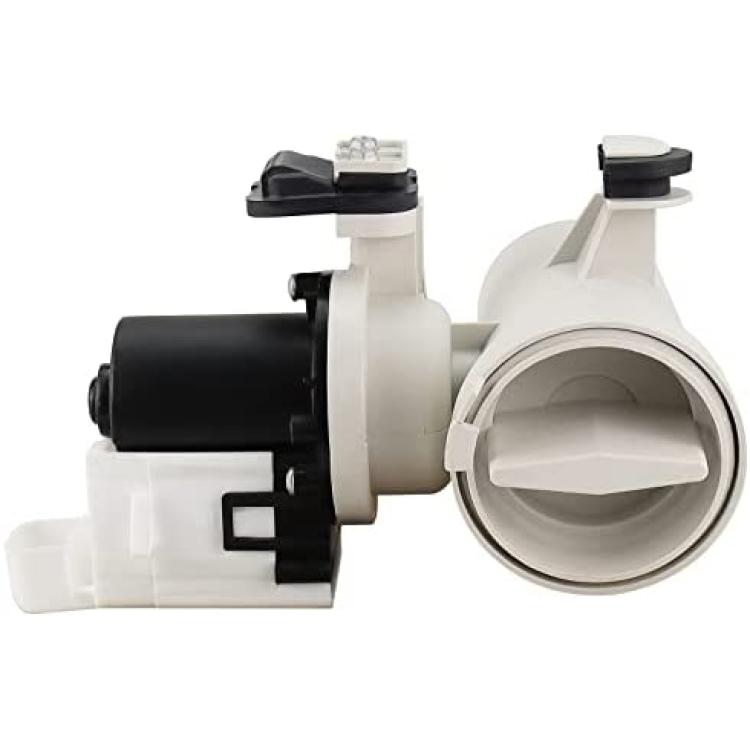

WPW10730972 W10130913 PS11757304 Washer Drain Pump OEM by Blutoget - Compatible with Whirlpool Ken-more May-tag Washing Machine - Replaces W10730972, 4281917,8540024, W10183434, AP4308966, PS1960402

Ken-moreWhirl-poolMay-tag AC120V 60Hz 80W 1.5A When the old pump is making a lot of noise and getting hot;Will not drain;Pumps but wont spin;Leaking water.Make sure to Unplug the washer and Wear work gloves before beginning this repair.Remove front lower plate using 10mm socket. Remove drain cap on clean-out and drain all water into shallow pan.Disconnect wiring harness and two hoses from drain pump assembly. Tilt washer on back legs to access two screws. Block washer to prevent it from tipping forward.Loosen two screws and remove drain pump.Install new drain pump and tighten two screws from underside. Connect both hoses and wiring harness and lower washer to floor.
