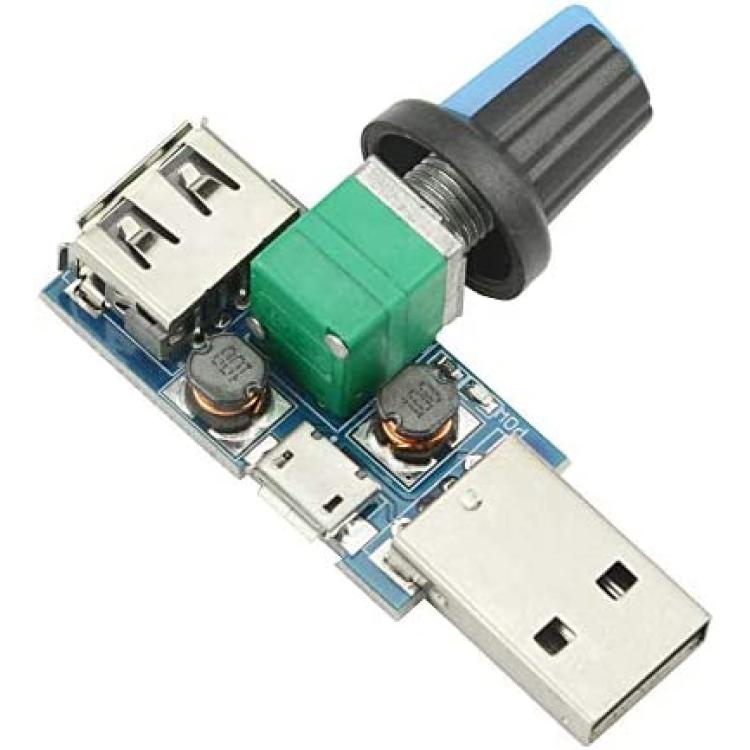

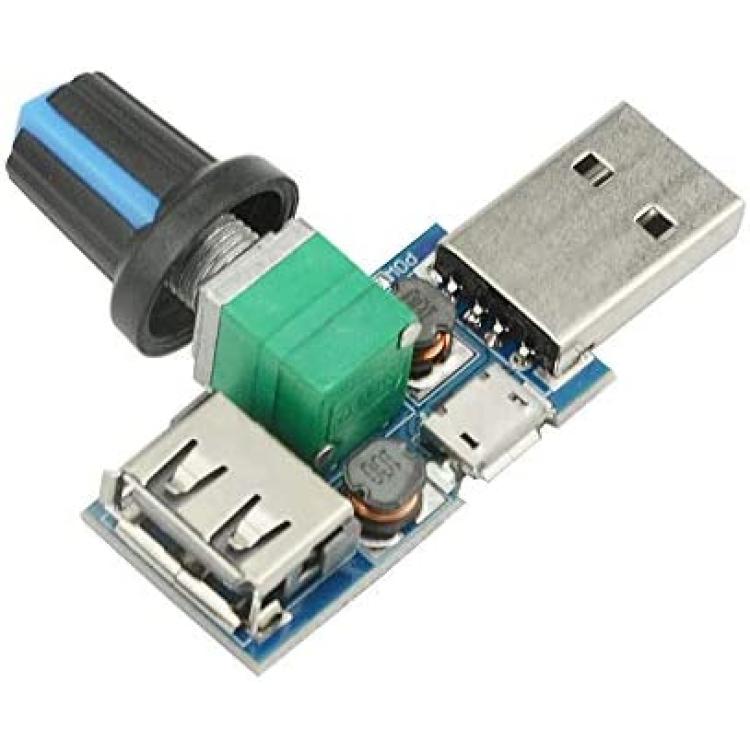

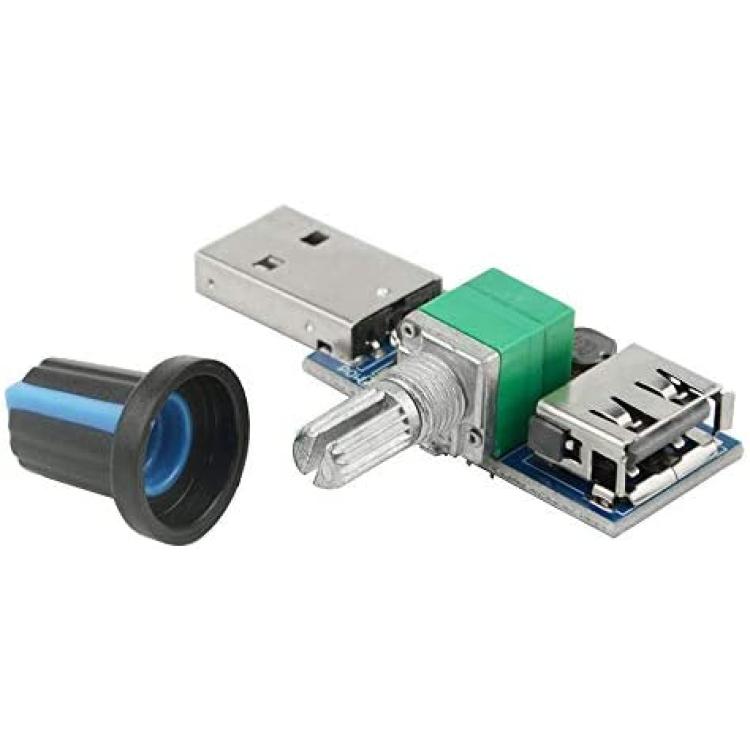

XINGYHENG 3Pcs 5W Mini USB Fan Air Volume Speed Stepless Governor Module USB Speed Controller DC 5V USB Male input DC4-12V to 2.5-8V and Speed Control Knob with Switch Function
Availability: Pre-Order, Inquiry Price
About this product
*Super material: It is made of electronic accessories element, inner conductor is pure copper. it is long lasting and durable for you to use.
*Package including: 3 pack of fan DC governor module. Stepless speed regulation output voltage range in 2.5V-8V stable change, so that the wind speed of the fan can be adjusted, greatly improve the comfort.
*PWM DC Motor Governor specification: The Power supply range is DC 4~12V, rated power is 5W (Do not overload). The current in the same product is up to 5A. Potentiometer with switch function.
*Directions for use: Insert the governor into the phone charger or charging treasure, insert the fan USB plug into the USB port of the governor, and then turn the adjustment knob to adjust the small air volume and large air volume. Turn the knob clockwise to increase the air volume. Turning it counterclockwise will make the air volume gentler and the knob has a switch function.
*A wide range of applications: It is suitable for the speed regulation of DC motor, fan, fish tank oxygen pump and other products.
Description
Module highlights:
USB fan air volume regulator
Strong wind and weak wind are free to adjust
USB fan stepless governor
Fan speed principle:
The non-adjustable USB fan is a 5 volt electric fan motor directly, while the two-speed fan has a boost circuit board inside.
When placed in the second gear, the booster board raises the USB 5 volts. When the motor is connected, the air volume will be big.
The stepless governor output voltage range varies from 2.5 volts to 8.0 volts, and the air volume is arbitrarily set!
And the scope is wider! Turn the knob clockwise to increase the air volume, counterclockwise to reduce the air volume, and the knob with switch function
It is suitable for 5.0V USB fansÂ
Instructions:
 Insert the governor into the phone charger or charging treasure, insert the fan USB plug into the USB port of the governor,
and then turn the adjustment knob to adjust the small air volume and large air volume.Or use Micro USB 5.0V to supply power
Package Including:Â

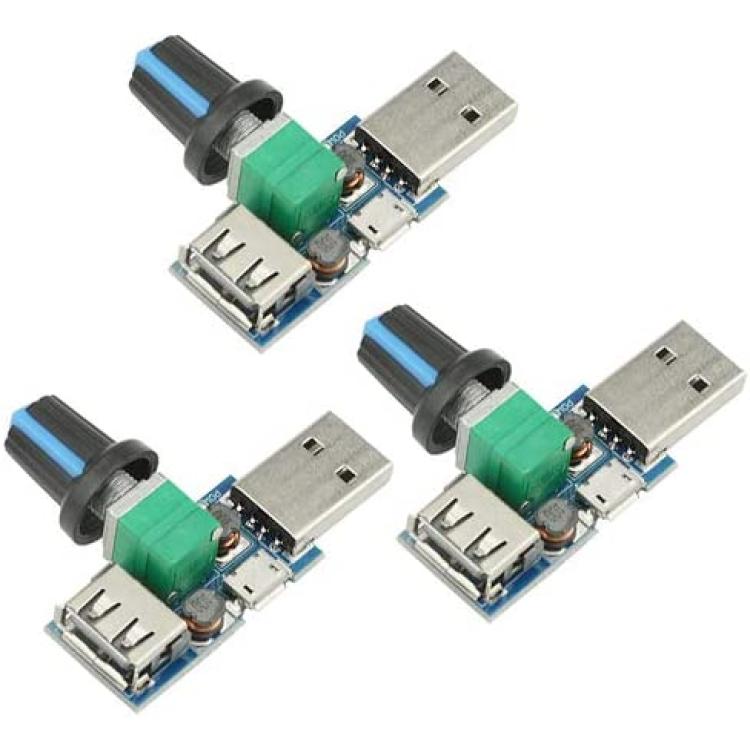

3 x Fan Air Volume Speed Regulation Module
Specification:
(1) Power supply range: DC 4~12V
(2)Rated power: 5W!(do not overload)
(3)Output range: DC 2.5~ 8.0V
(4)Weight: 14g
Special note:
This is used for two-speed adjustment of the fan, if the fan is placed in the first gear, there may be no speed adjustment.
