Evaporator Fan Motor for Refrigerator Replaces Whirlpool 482731 4318001 4389140 8537621 0056721
Share Facebook Twitter Pinterest Email

Evaporator Fan Motor for Refrigerator Replaces Whirlpool 482731 4318001 4389140 8537621 0056721

Brand: ‎Raven
Product Code: MM11262
Availability: Pre-Order, Inquiry Price
US$0.00
- +

Description

Refrigerator evaporator fan motor: ?fan motor draws air over the evaporator coils and circulates the cold air through the refrigerator and freezer compartments. When the evaporator fan motor fails, it often generates a lot of noise in the freezer area.

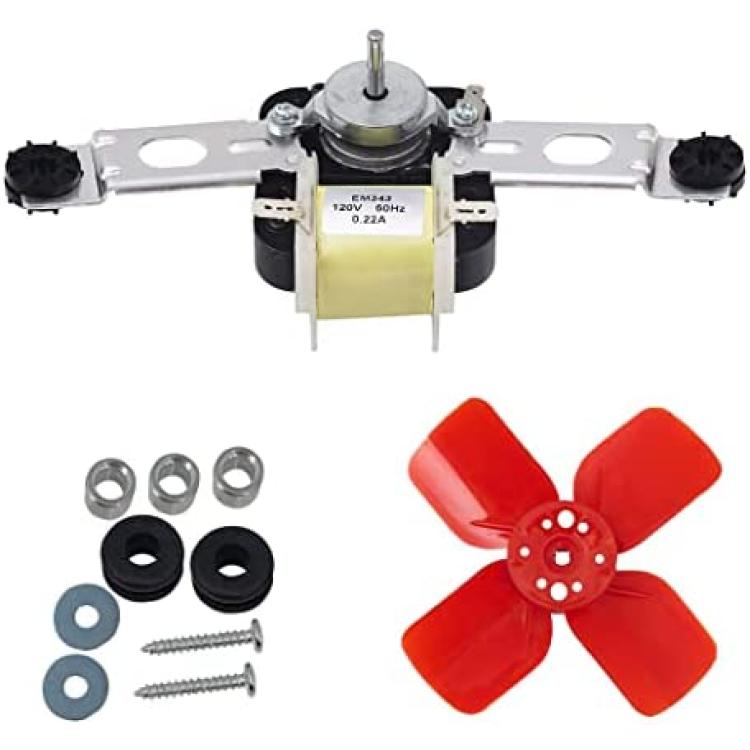

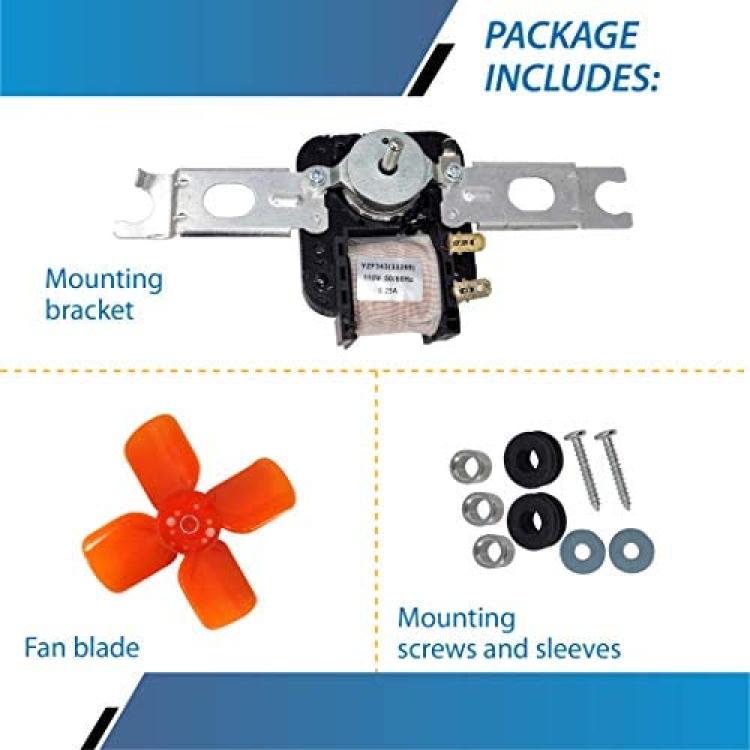

- Includes: One fan motor, mounting bracket, push-on fan blade, mounting screws, grommets and sleeves.

Fits the following Whirlpool, Magic Chef and Maytag refrigerator models: GFS142/MN00, GFS142/MN01, GFS142/MN02, GFS142/MN10, GFS142/MN11, GFS142MN01, GFS162/MN00, GFS162/MN01, GFS162/MN02, GFS162/MN10, GFS162/MN11, GFS162MN01, GFS165/MN00, GFS165/MN01, GFS165/MN02, GFS165/MN10, GFS165MN01, GFS185/MN00, GFS185/MN0

- Material: ?Metal plastic

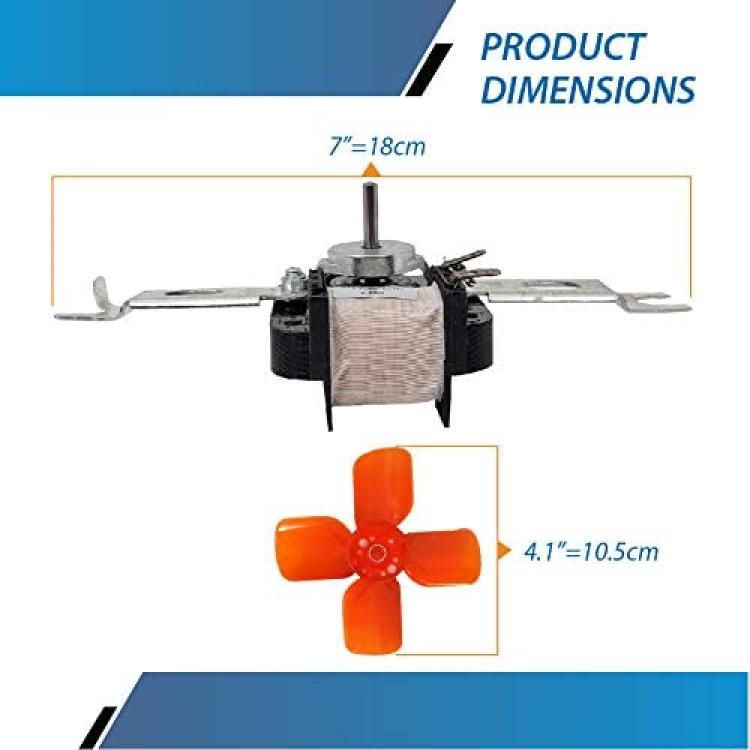

- Dimensions: Fan 4.1", mounting bracket 7"

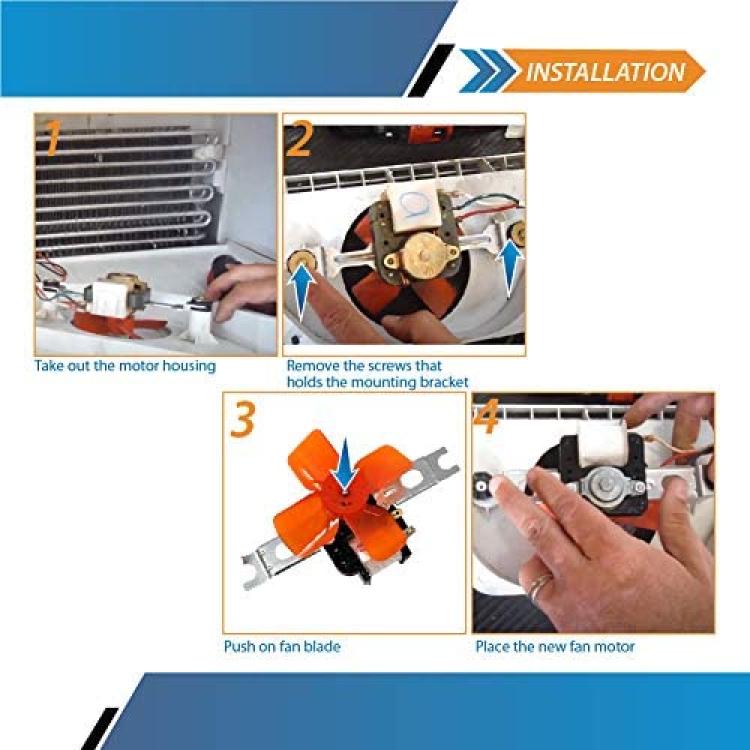

- Steps to locate fan motor (see images above):

1. Take out the shelve and ice maker
2. Remove 4 screws that hold the panel
3. Remove the little cover
4. Pull out the clip
5. Take out the panel
6. Release the wires union with a screwdriver
7. Disconnect motor wires
8. Remove the screws that hold motor house

NOTICE: This is not a Maytag, Whirlpool OEM product, any use of these brand name or model designation for this product is made for compatibility demonstration purposes only.
