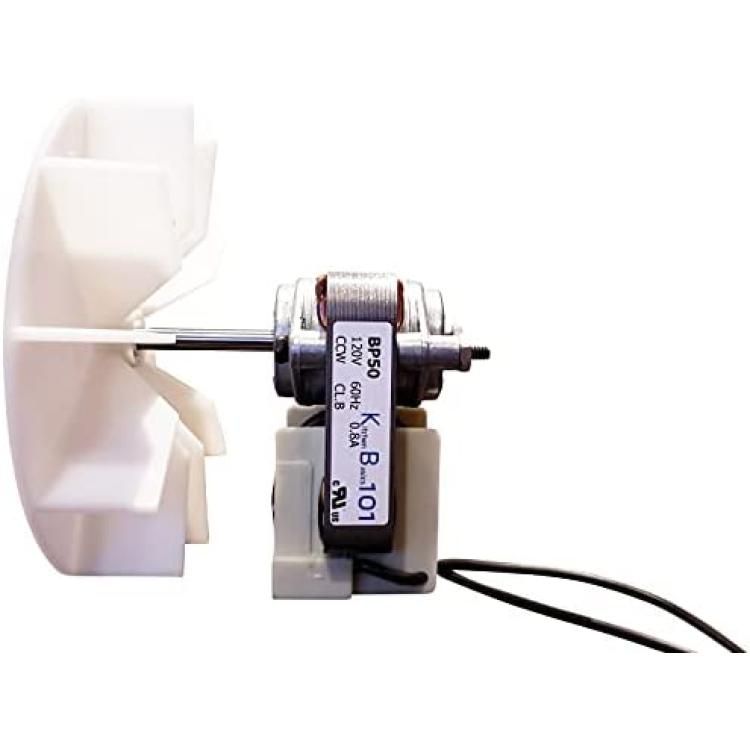

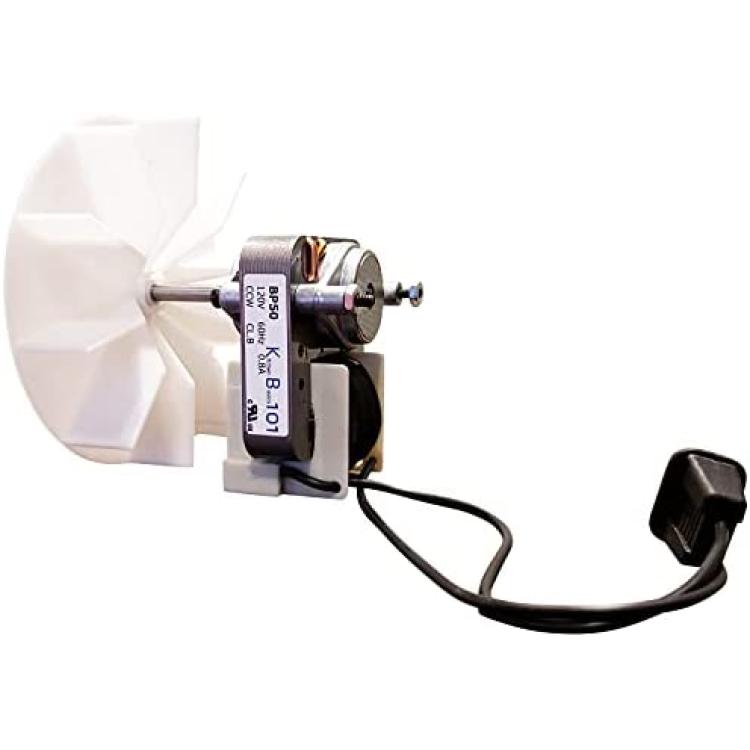

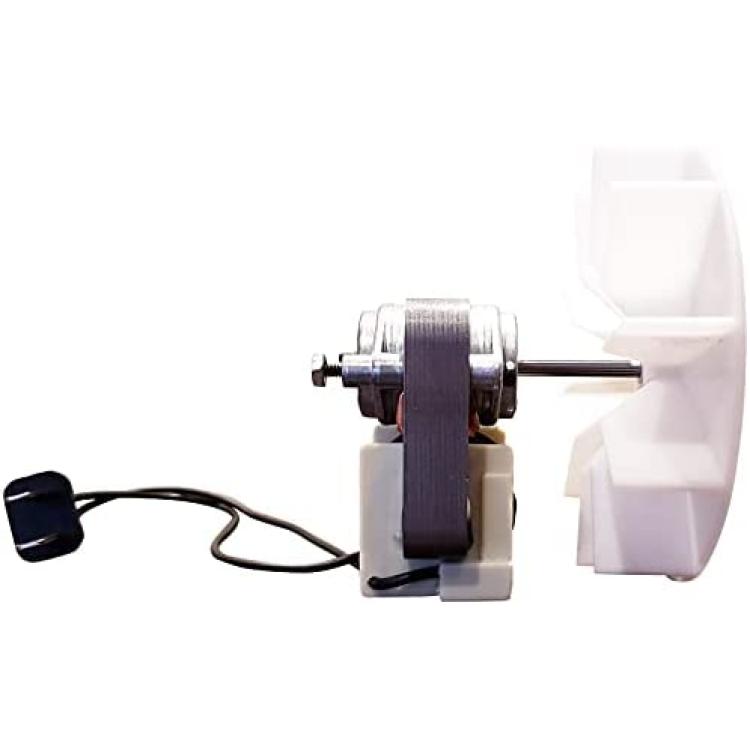

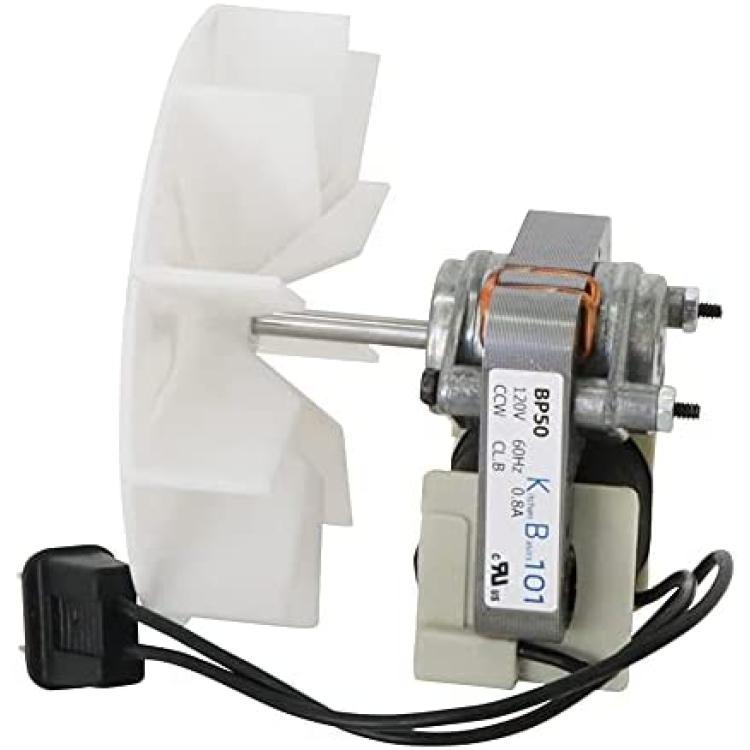

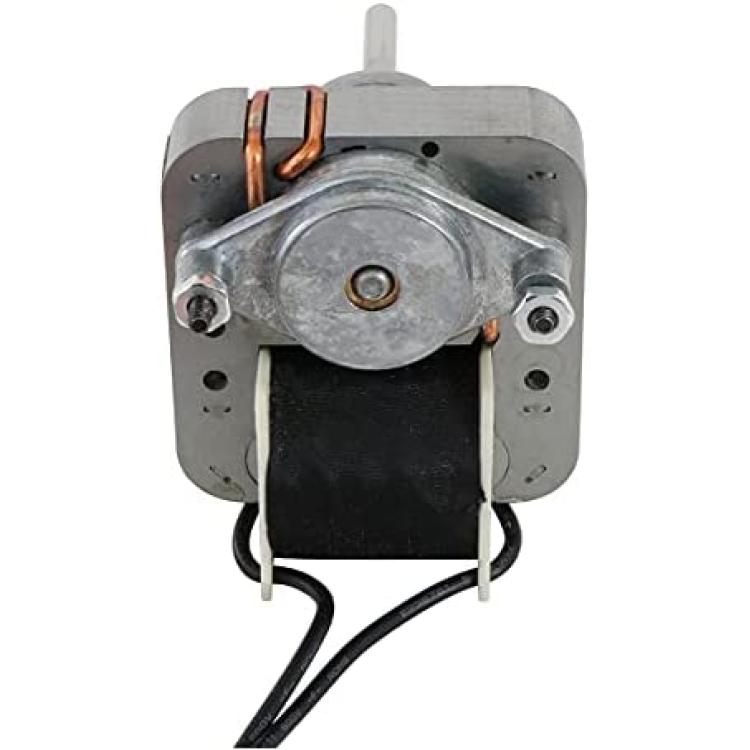

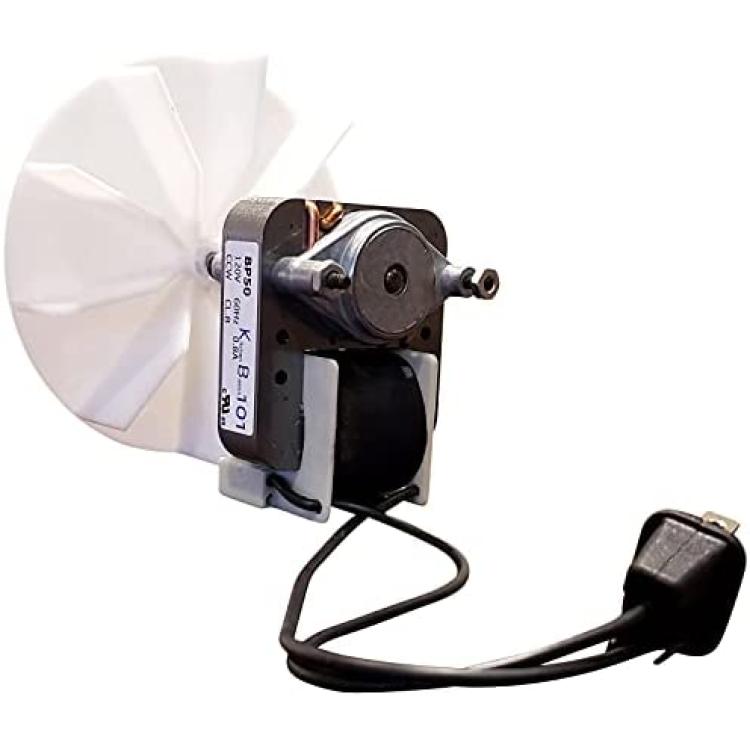

Kitchen Basics 101: BP50 Bath Fan Ventilation Motor and Blower Wheel Replacement for Broan Nutone 50 CFM
About this product
*120 V, 60Hz, 0.8A, CCW, CLB, 3000RPM
*Fits Broan 663N, 663LN, 696N, version A

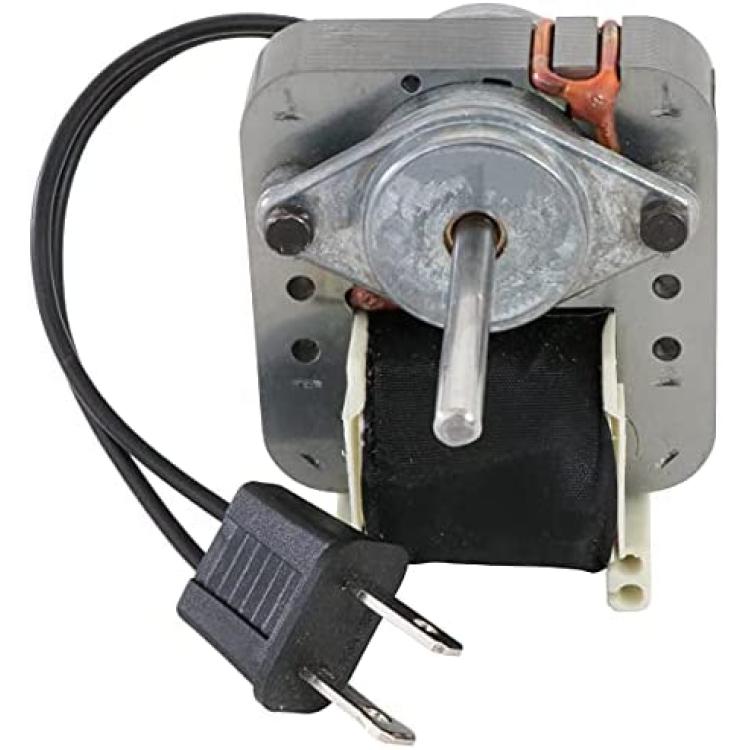

*Standard 2 prong plug attached to motor
*Motor shaft diameter is .1811 (between 1/8" and 3/16") x 1-7/16" long
*Superior quality you can trust! This SupplyEdge product is UL/CSA approved to assure safe operation and long life.Warranty- All parts sold by SupplyEdge come with a 1 year, no questions asked, no hassle warranty.
Description

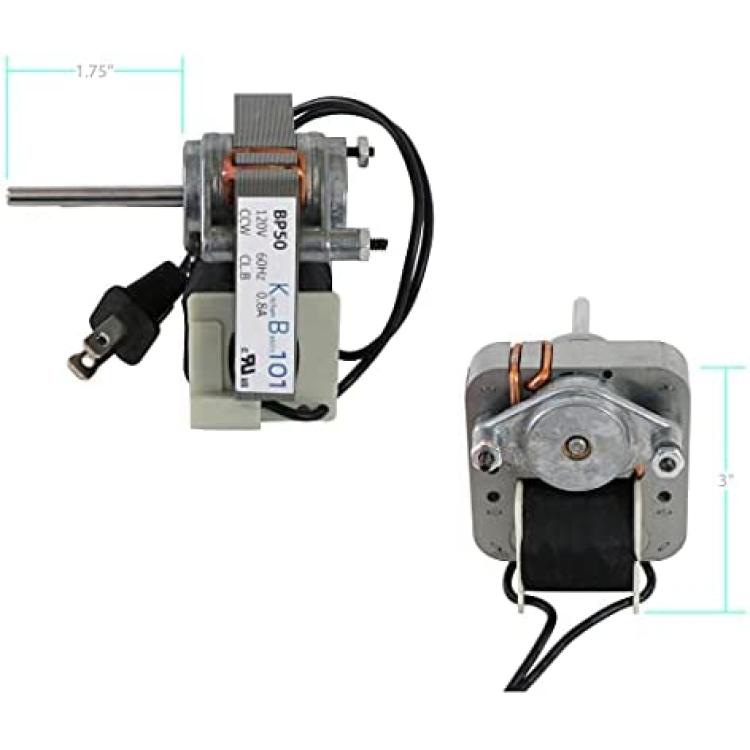

Motor Dimensions: 3.75 x 3 x 2.5"Fan Dimensions: 4.5 x 4.5 x 1"
