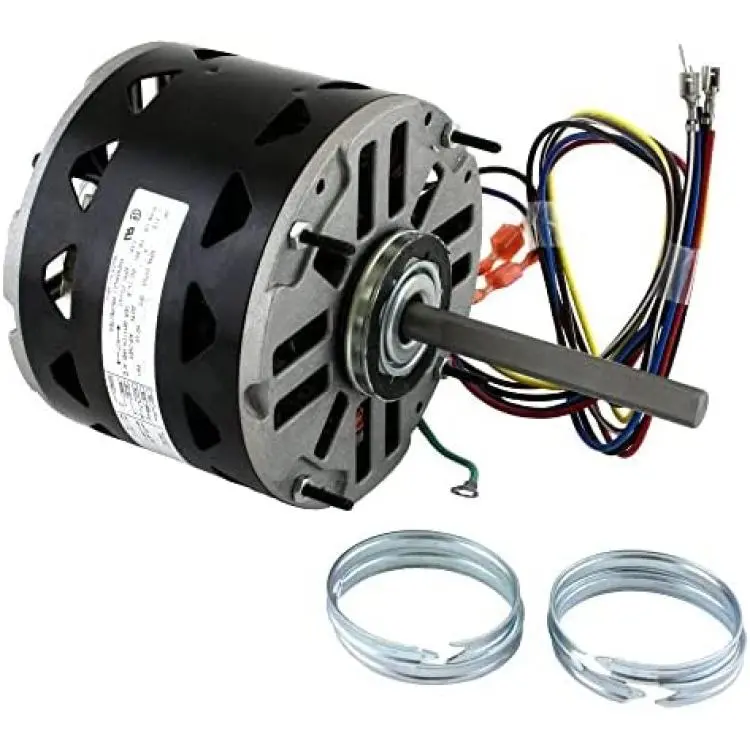

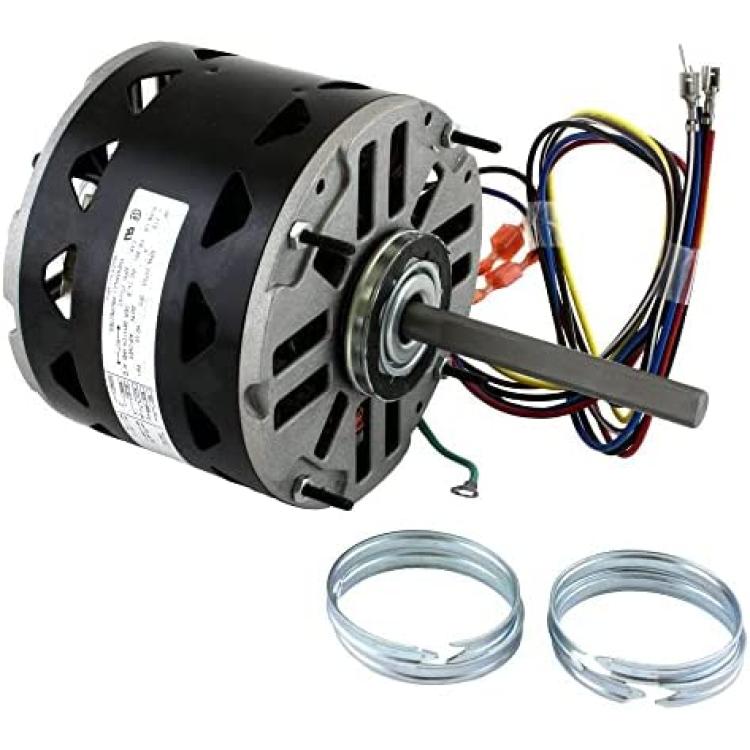

DL1026 Century 1/4 hp 1075 RPM 3-Speed 48 Frame 115V Direct Drive Furnace Motor
About this product
*1/4 hp 1075 RPM, 4.6 amps, 115 Volts, 3-Speed
*Service Factor = 1.0; Includes 5 MFD 370V Capacitor
*5.6" Diameter; Motor Body Length 4 5/16"
*1/2" x 4.5" shaft; Rotation Reversible; 26" Leads
*Sleeve Bearings
Description
Permanent Split Capacitor Motor. 2 1/4" Resilient Rings. Belly Band or Stud Mount. Automatic Overload Protection. Continuous Duty; Easy Rotation Change; Enclosure; Continuous Duty; Class B Insulation; Residential Application; 40C Ambient Temperature; 26" Leads; 5.6" Diameter; Capacitor Included. These motors will work in most"Belly Band Applications" meaning if the motor is mounted via a strap/clamp around the body of the motor or mounts with the motor"thru-bolts. Belly band brackets available: Torsion Flex Bracket (3-Prong) # 2MEY7, Torsion Flex Bracket (4-Prong) # FM554, Welded 3-Ring Bracket # 2MEV4. One year warranty
