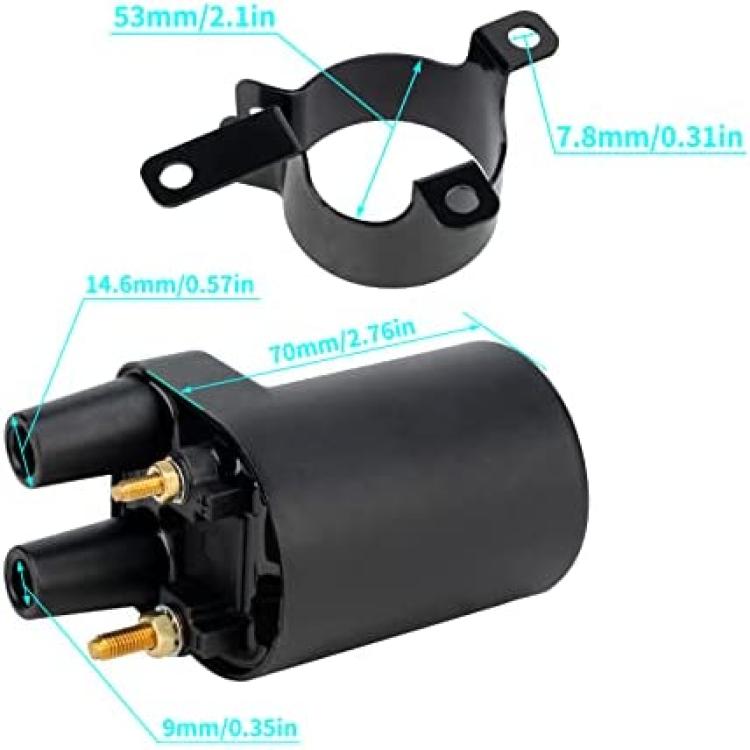

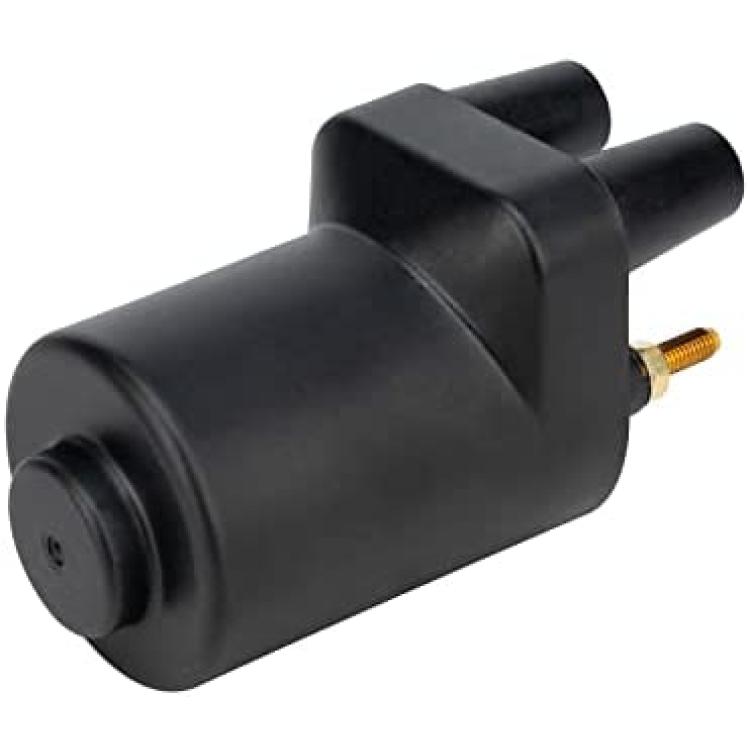

166-0772 Ignition Coil Replacement for Onan Points Models BF B43 B48 NHC CCK Engine Replaces 166-0820 HE541-0522 166-0804 166-0648 He166-0761

The ignition coil is compatible with Onan Points models BF, BG, BFA, BGA, BGE, B43, B43E, B43G, B43M, B48, B48G, CCK, CCKA, CCKB, NHA, NHB, NHC, NHE, NHP, N52M. Suitable for P218G engine, P220G engine, P224G engine.

Replace OE#: 166-0772, 166-0648, 166-0804, 166-0761, 166-0820, 541-0522, HE541-0522, HE166-0761

Specifications:

166-0804 same as 166-0772 points only

166-0820 same as 541-0522 solid state only

A. (166-0820)

Primary Resistance: 3.12?

Primary Inductance: 6.67mH

Secondary Resistance: 20.5K?

Secondary Inductance: 41.30H

B. (166-0804)

Primary Resistance: 4.25?

Primary Inductance: 9.48mH

Secondary Resistance: 37.85K?

Secondary Inductance: 59.96H

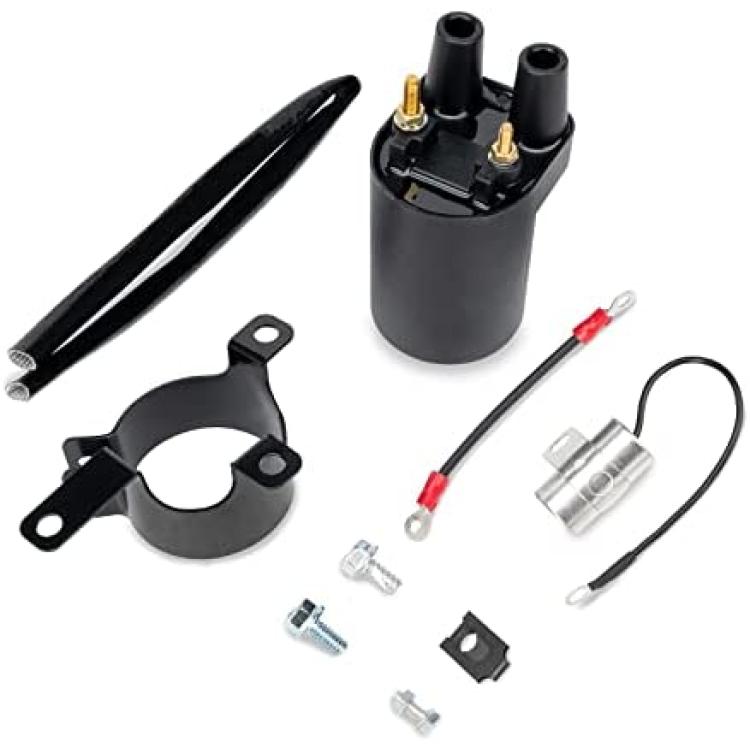

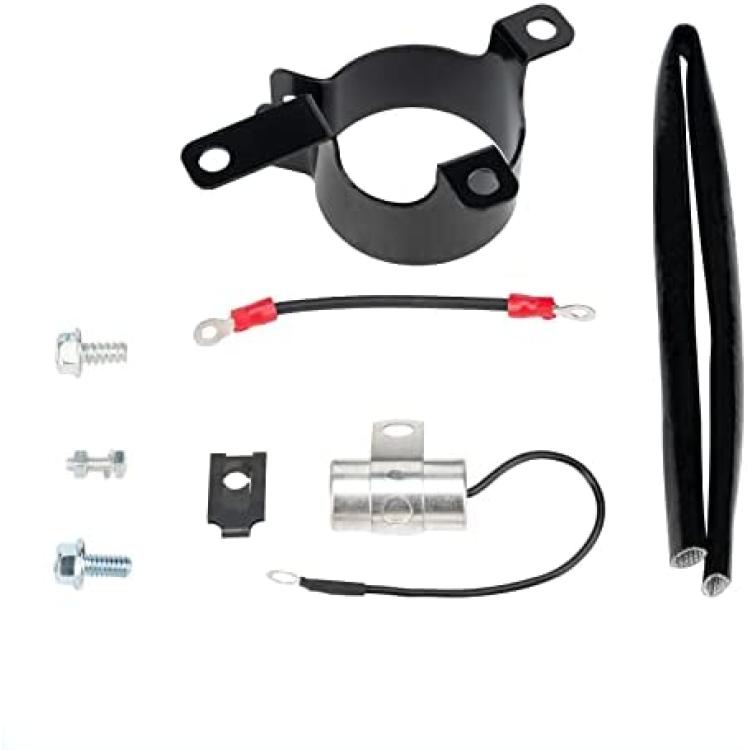

Package include:

1 x Ignition coil

3 x Mounting bolt

1 x Mounting bracket

1 x Lock clip

1 x Capacitance

1 x Insulating sleeve

1 x Connection terminal

Warranty: 2 years warranty for the ignition coils! If you have any questions, please feel free to contact us via email, we will solve it for you as soon as possible!
