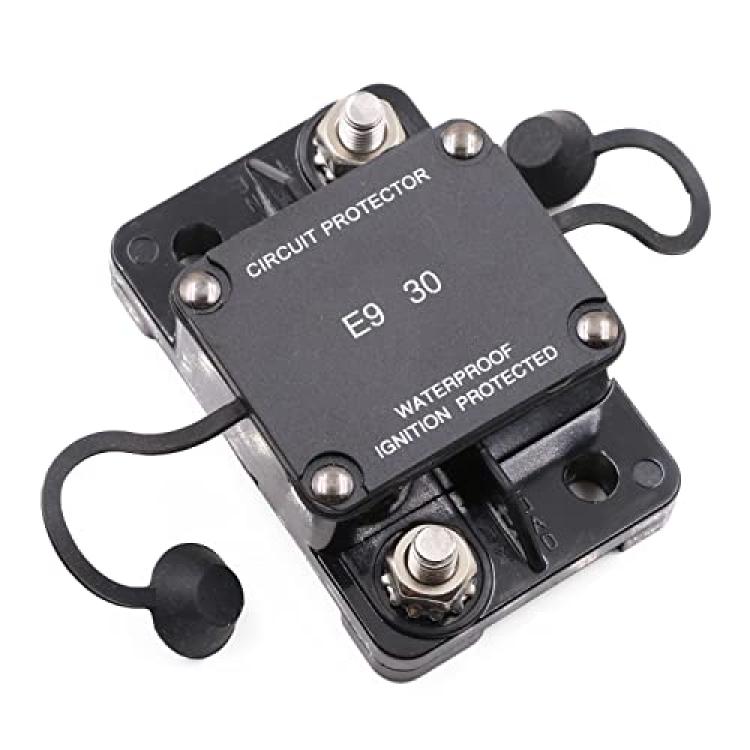

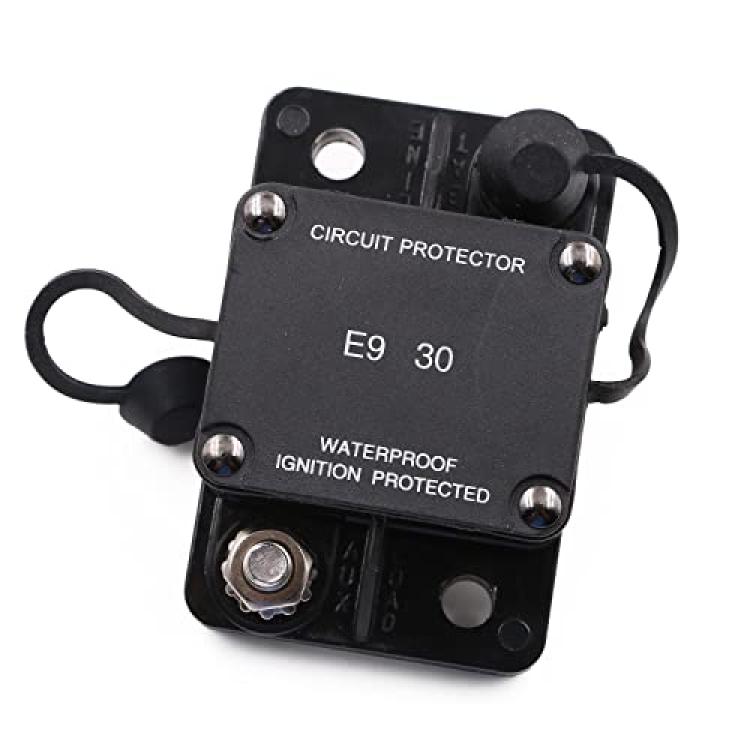

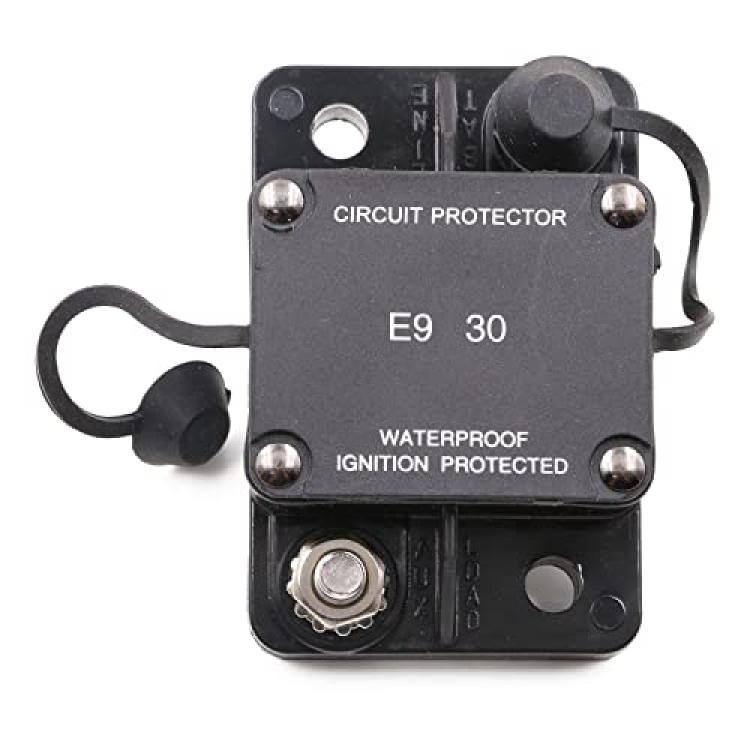

T Tocas Type T1 Auto Reset Circuit Breakers No Switch Button Waterproof 30A 32V DC
Availability: Pre-Order, Inquiry Price
About this product
*Product Dimensions : 2.91 x 1.9 x 1.09 inches; 3.84 Ounces
*Date First Available : June 20, 2022
*Manufacturer : T Tocas
Description
Hi-Amp Circuit Protector (Breaker) Auto Reset
Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine applications. Others include battery charger and DC audio system.
Voltage:32Vdc
Rated Current:30A
Termination£º1/4" Stainless Steel Studs
Mounting:Surface Mount
Reset: TypeT1, Auto Reset
Operating Temperature:-32oC (-25oF) to 82oC (180oF)
Storage Temperature:-34oC (-30oF) to 149oC (300oF)
Interrupt Capacity:3,000A @ 32Vdc
Dust and Waterproof: IP67
BodyUL-rated 94V0 thermoset plastic

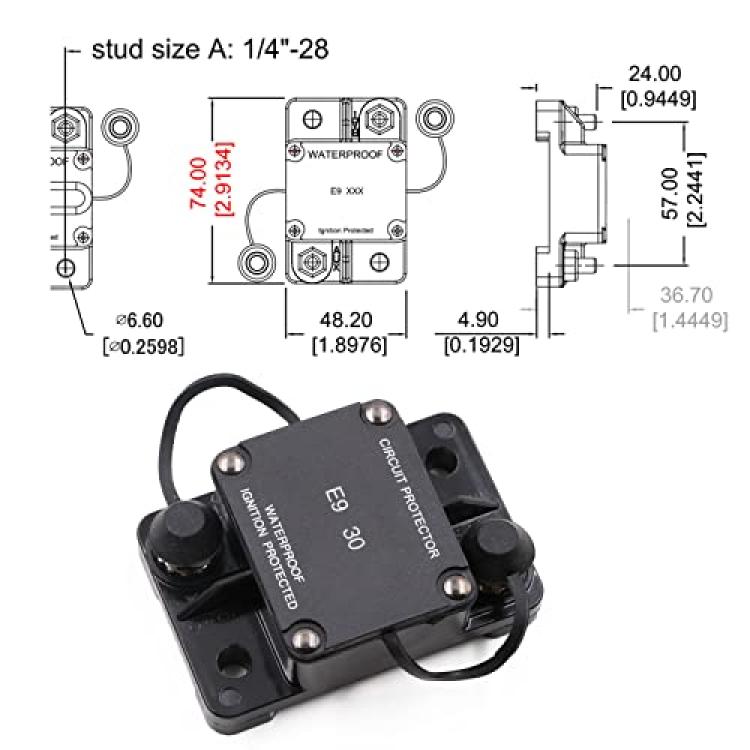

Length: 2.913inch
Width: 1.900inch
Height: 1.091inch
Weight:88 g
Regulatory SpecificationInterrupt Capacity: SAE J1625; SAE J553, ABYC-E11; UL 1077*
Ignition Protected: SAE J1171; UL 1500*
Endurance: SAE J1625; SAE J553
Shock, Vibration, Corrosion, Humidity: Mil-STD-202
