Nine-Rong Digital LCD Inductive Hour Meter Hourmeter Waterproof for Marine Boat SnowBlower Inverter Generator Motorcycle ATV Lawn Mower and Small Gas Engine(Black)
About this product
*HOUR METER----The total hour reading display range is 0 to 99999H, 0.1H/1H accuracy.Trackong the total working hours on equipment in real time, the timer data is retained automatically when the equipment is turned off, and the next cycle is accumulated directly
*CRAFTSMANSHIP ---- It is sealed with epoxy resin, waterproof rate is IP68, and it is also shockproof and high temperature resistant to avoid damage during transportation and use
*INSTALLATION----The hour meter is easy to install and does not require wiring or connection with the accompanying hardware. Pass the wire through the housing wall and then wind it around the ignition coil to avoid coiling on the wire coil
*APPLICATION---- Inductive Hour Meter for most gas engine,in instance：Lawn mower, ATV, Motorcycle, Boat, Dirt Ski Track the Service Life of Your Vehicle-Oil Changes, Valve, Adjustments and etc
*OTHER ---- Contains detailed user instruction; patent, CE ROHS certification; 2 years after-sales guarantee and technical support, please feel free to contact if you have any questions
Description
Product :JR-HM006A
Induction design: Wrap the wire around the spark plug 4-5 times to work
Attachment :Product?Cable tie*2?Screws*2?Signal wire component
Product Functions:
1 Hour Meter (TOT) Function
? Display shows total running time of machine and remains visible.
?The total hours max value is 99999H;Total Hours reading displays from 0 to 9999.9H, 0.1H accuracy;Total Hours reading displays from 10000 to 99999H, 1H accuracy.
?The timing starts when the detected signal passes through the spark plug wire. It quickly stops running after the engine is turned off, so it does not mistakenly record excess time.
?TOT hours are non-resettable. Automatic clearing when exceeding the maximum value.
2 Other Functions
? No battery required and connect to spark plug wire.
? Built-in battery: CR2430 270mAh
? Hole diameter: 2.5mm

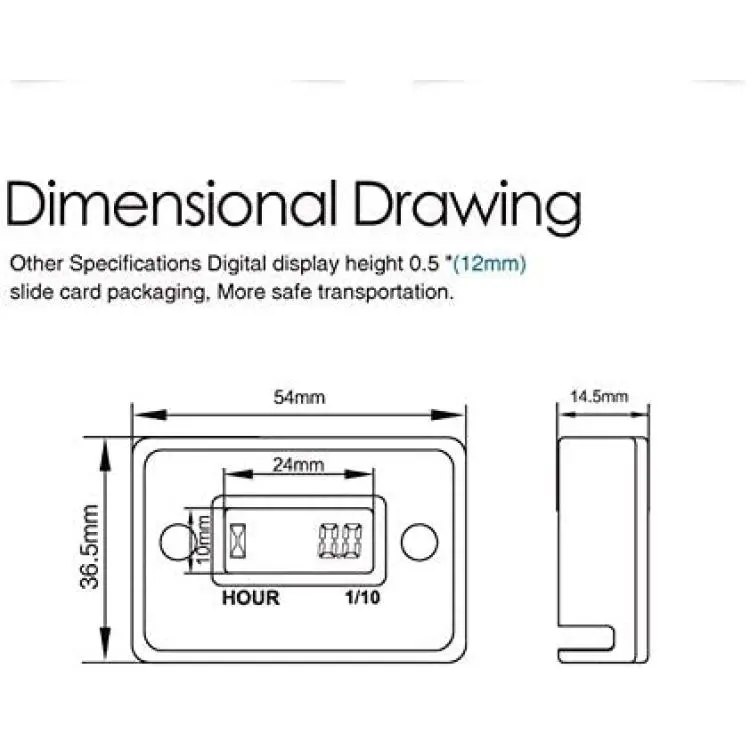

? Display window size?23.7*10mm
? Patent, CE ROHS certification
? Waterproof rate: IP68
3 Applications
?This hour meter is suitable for marine ATV motorcycle gasoline fired generator snowblower lawn equipment dirt bike riding mower air cleaner chipper trimmer mower weed eater pressure washer lawn tractor and all gasoline engines.
