Runleader Digital LCD Tach/Hour Meter,Maintenance Reminder,Multiple Display with Backlight for Garden Tractor Wood Splitter Brush Cutter Generator Compressor ATV Paramotor Outboard Motor Motorbike.
Product Code: MM6013
Availability: Pre-Order, Inquiry Price
About this product

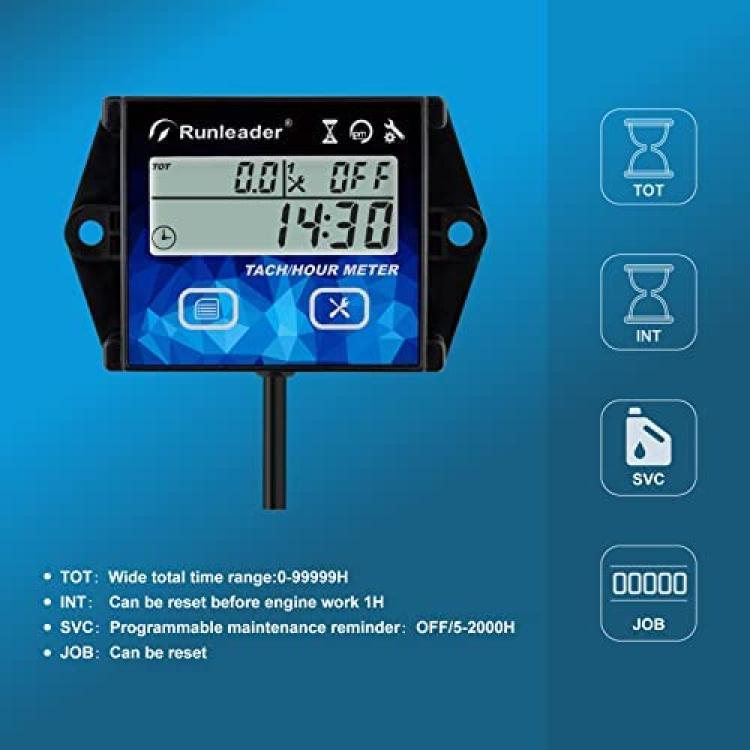

*HOURS---- Record the total using time(TOT) and the hours per trip(JOB) of your engine, the previous hours(INT) can be set for a replacement;Keep track the service intervals for maintenance schedule such as oil change etc.(SVC);TOT & JOB hours read up to 999,99 hours;SVC timer range:5-2000 hours .
*RPM---- Display the rotation speed of engine(RPM) to adjust the idle, chose the proper engine firing patterns for accurate reads; Alert channel for revolution exceed reminder;Viewable highest revolution since the engine started; RPM measurement range: 0-25000RPM, Alert range: 100-25000RPM.

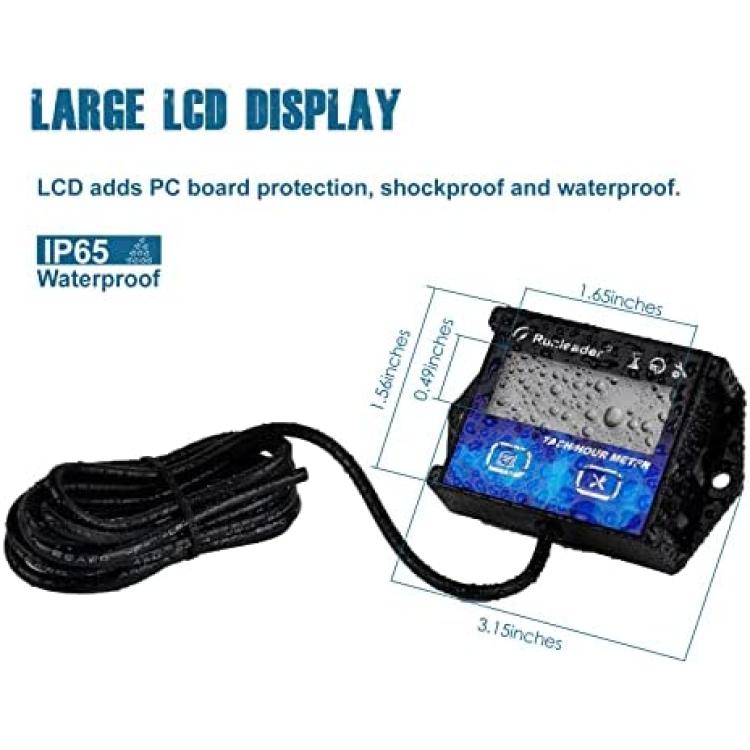

*DISPLAY---- White backlight can be lighten then easy to read at night or dim working condition,red backlight will be flashed to remind the maintenance time arrival and RPM exceed; 3 seperate display area will help you to check and program different functions more easily.

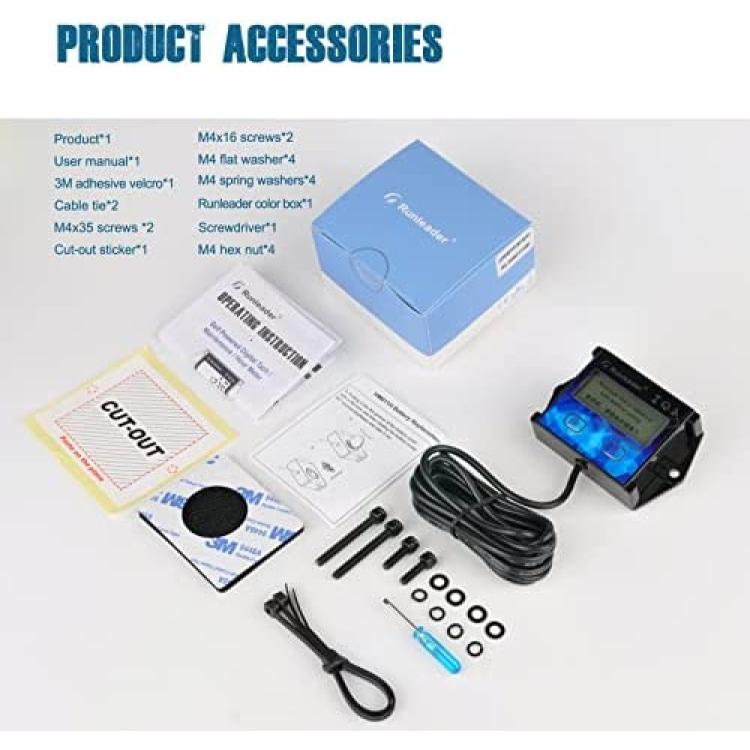

*INSTALLTION---- You can mount it by screw-on,stick-on and snap-in (Panel cut-out size:2.08x1.57 inches) at any proper position,well-compeleted accessories will keep it fit for different using requirement; One wire hook-up design for engine signal detection with wire shorten or extend( wire length:appox.68.8 inches).
*OTHERS---- Favorable water and shock resistence by whole housing design especially front PC display window and back compartment with O ring sealing; Battery capacity will be kept in good condition with insulation sheet during transport;Replaceable battery compartment and LCD shutdown also can extend the lifetime in vacant time;Reliable technical support and after-sales service(2 years).
Description

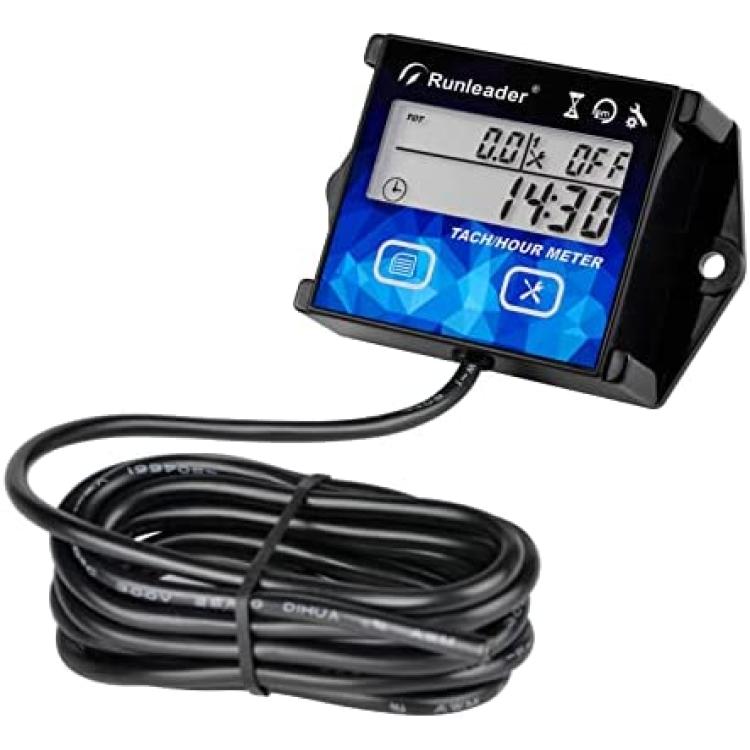

Runleader RL-HM011HB Backlight Tach Hour Meter, Engine running hours tracking, Maintenance Reminder,RPM &MAX RPM record, Alert RPM channel, LCD shutdown, Data retained,Battery replaceable,Waterproof Design.
Runleader RL-HM011HB Backlight Tach Hour Meter, Engine running hours tracking, Maintenance Reminder,RPM &MAX RPM record, Alert RPM channel, LCD shutdown, Data retained,Battery replaceable,Waterproof Design.
RPM meter

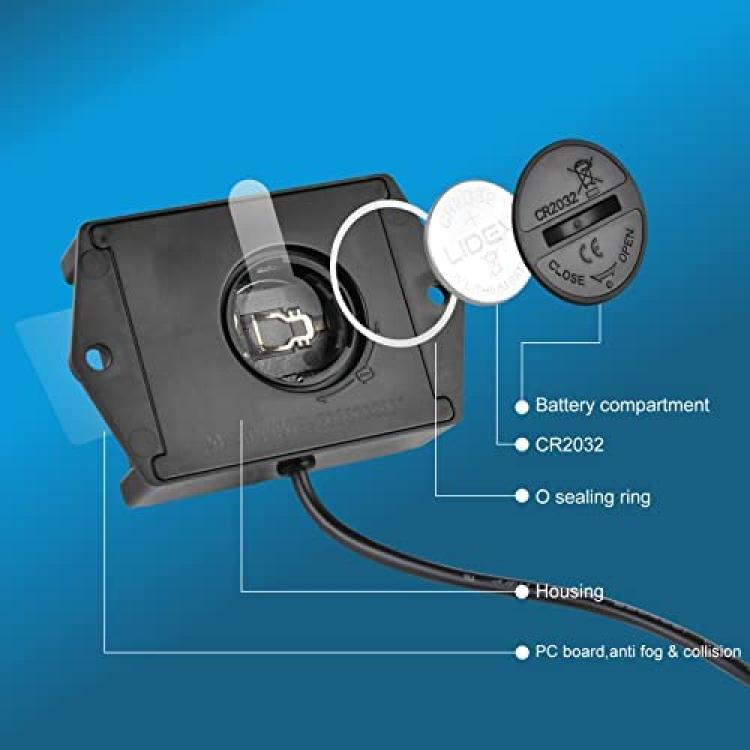

Battery replaceable
Built-in replaceable CR2032 Battery,lifetime up to 3 years.
Favorable water and shock resistence by whole housing design especially front PC display window and back compartment with O ring sealing.
Accumulate engine total working hours when it shutdown, timing read up to 999,99 hours with 0.1/1 hour accuracy.It restart from 0 when value exceed 999,99 hours.Count-down tracking for maintenance time, display the arrival status by red backlight and flashed SVC icon.Maintenance time range: 5-2000 hours with OFF selection.TOT initial hours can be programmed for replace an old hour meter.Record the times per engine working period.Record real-time RPM value when engine is on, measurement range 0-25000RPM with 10 RPM resolution.RPM refresh rate can be set as 0.5S or 1S to keep the RPM value update.Maximum RPM value record and recall.Programmable RPM alert to remind the revolution speed exceed by red backlight display and flashed warning icon.The engine firing patterns to be chosen for RPM accuracy adjustment,suitable for gas engine 2 stroke up to 6 cylinders, 4 stroke up to 16 cylinders.Related Products
