SURPASS HOBBY Rocket 540 V3 Sensored Brushless Motor 10.5T Modified for 1/10 RC Racing Car
About this product
*CNC Machined Billet T6 Aluminum Heatsink Can;
*High Purity Copper Windings Maximizes Conductivity
*High Power Solder Tabs
*Removable/Replaceable Rotor
*Powerful Sintered Neodymium Magnet
Description
Features:

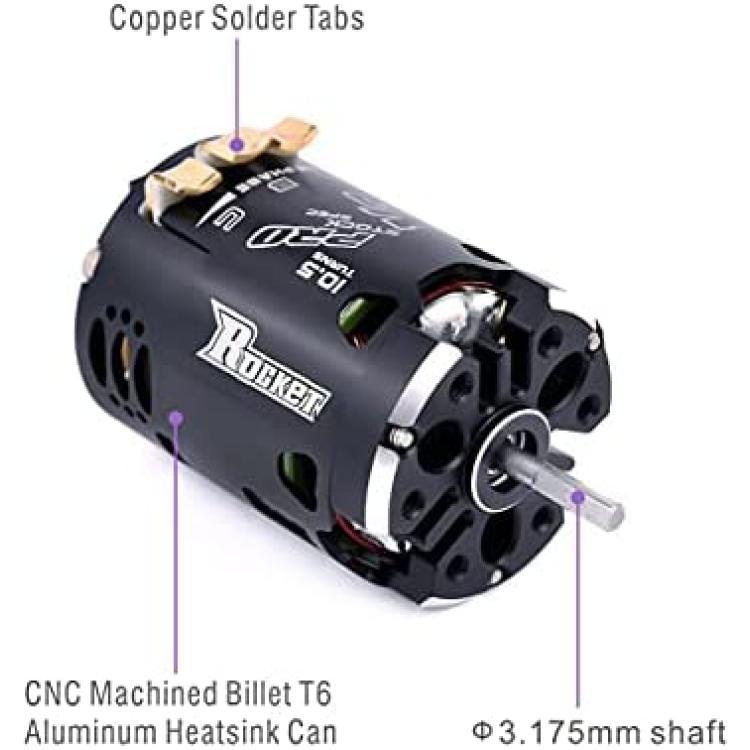

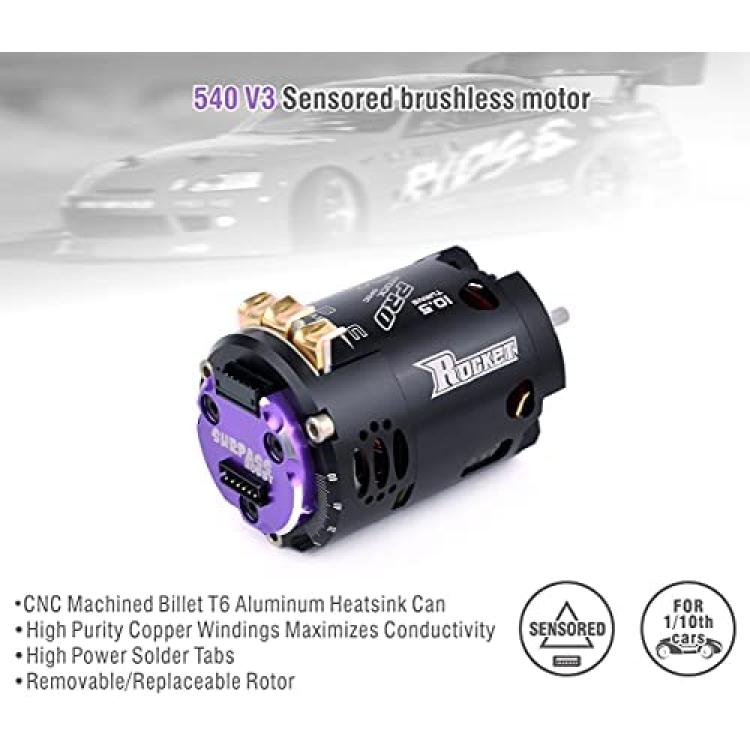

CNC Machined Billet T6 Aluminum Heatsink Can
High Purity Copper Windings Maximizes Conductivity
High Power Solder Tabs
Removable/Replaceable Rotor
Powerful Sintered Neodymium Magnet
Precision Engineered for Maximum Energy Conversion

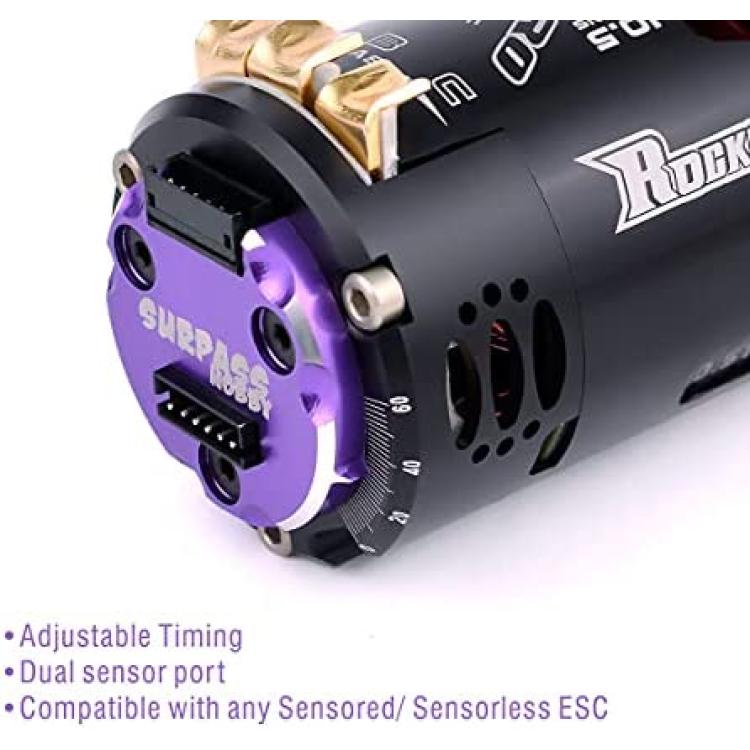

Adjustable Timing
Compatible with any Sensored/ Sensorless ESC
IFMAR, ROAR Compliance
Specification:
Use: 1/10 scale Rc competition vehicle
Brand Name: SURPASS HOBBY Rocket
G.W: 205g
Sensored or Sensorless: Sensored
Size: 540
Turns: 10.5T
Watts: 250W
Max Amps: 63A
IO: 1.8A
Rotor Poles: 2
Resistance: 0.0198
Kv(RPM/volt): 3800
Rotor:￠12.5 *￠7.2mm
Diameter: about 35.8mm
Length: about 54mm
Length of extend shaft: about 14.5mm
Shaft diameter: about 3.175mm
Recommended battery: 1-3S Li-Po
Type:SPEC

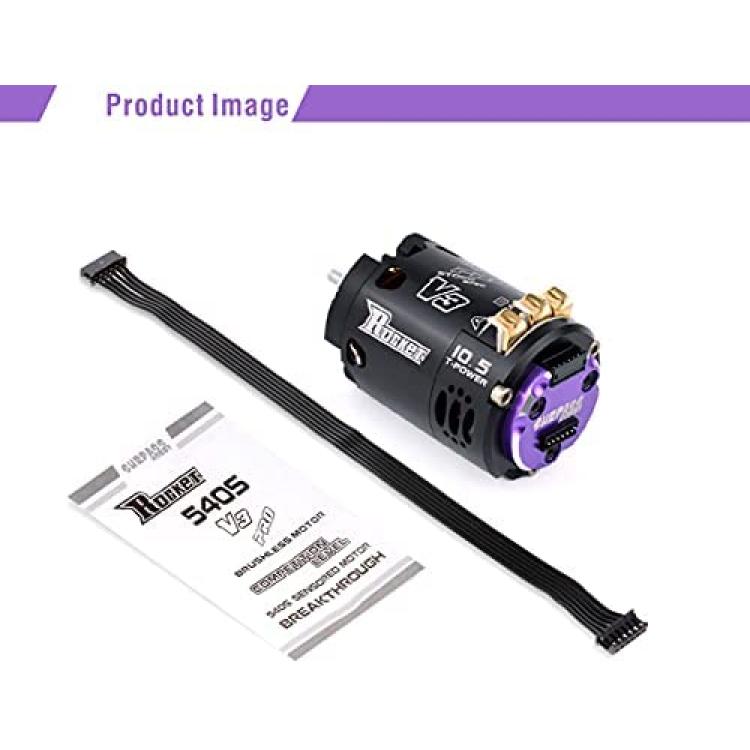

Package Included:
1 * Motor
1 * Manual
