DAOKI Control Extension Shield Board 3D Printer Stepper Motor Driver with A4988 DRV8825 Dupont Cable,for 3D Printer Accessories
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 5.59 x 2.56 x 1.02 inches; 0.63 Ounces
*Item model number : JK-US-164-1
*Date First Available : August 3, 2021
*Manufacturer : DAOKI
Description
Product description:

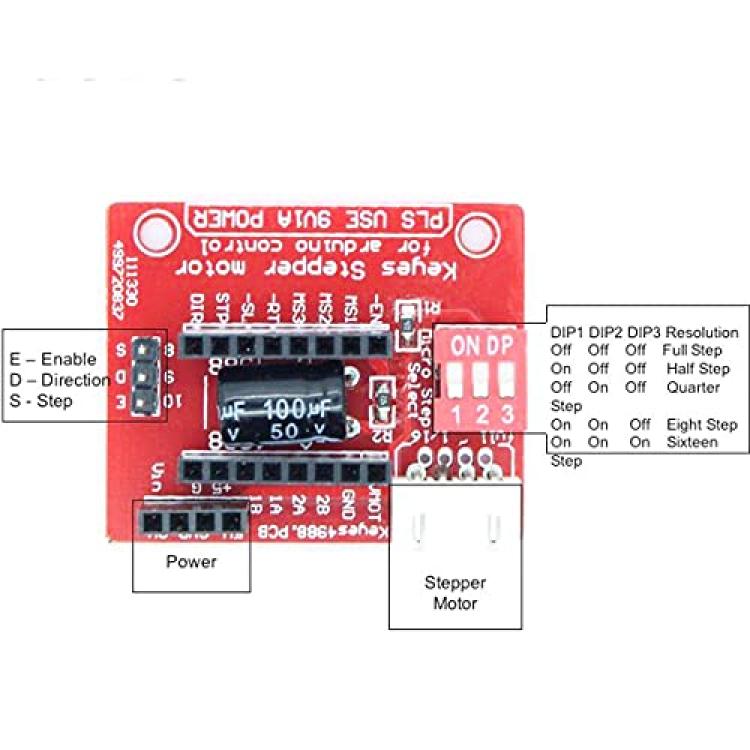

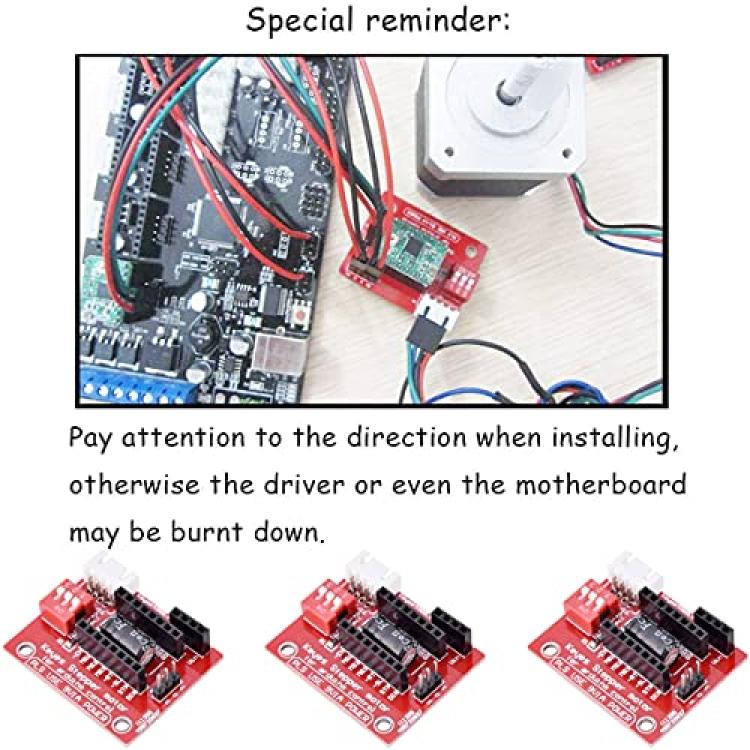

You can use the A4988/DRV8825, insert the attention direction, otherwise it will burn the drive.Jumper hit ON DP indicating the position of 16 segments (4988) or 32 segments (8825).
Jm is connected with the motor.
Jv connection 5V and 12V-24V power supply.
Jc E\S\D\G are respectively connected with the Enable\Step\Dir\Gnd driving signal output.
size:70*50mm/2.76*1.97 inch
material:metal

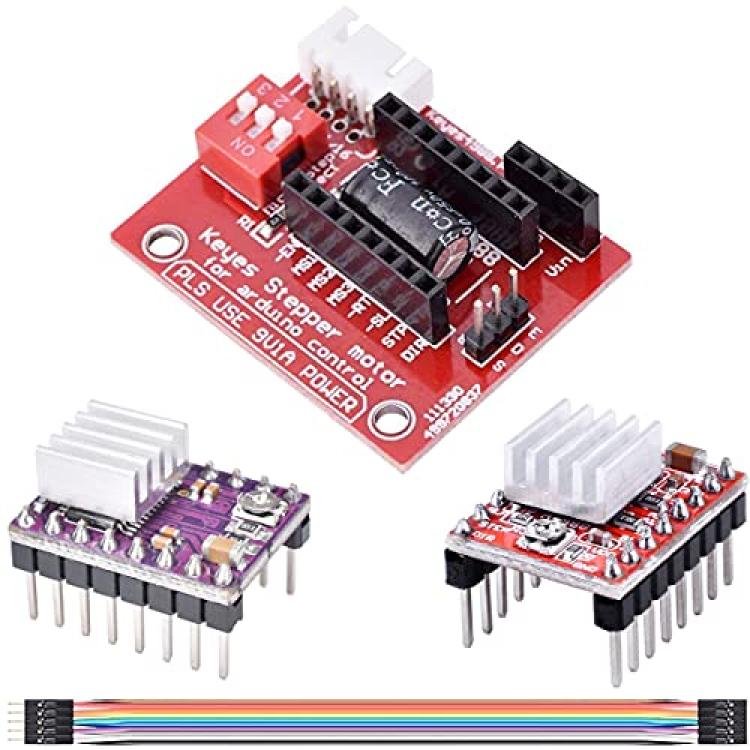

Package includes:
1 x Control Extension Shield Board
1 x 10PIN Male and female Dupont cable
1 x A4988 module
1 x DRV8825 module
