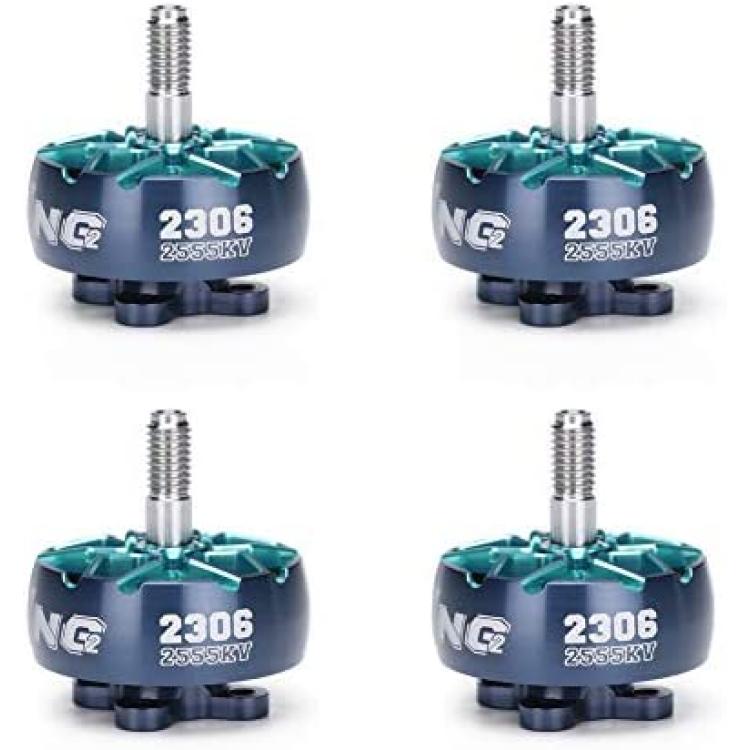

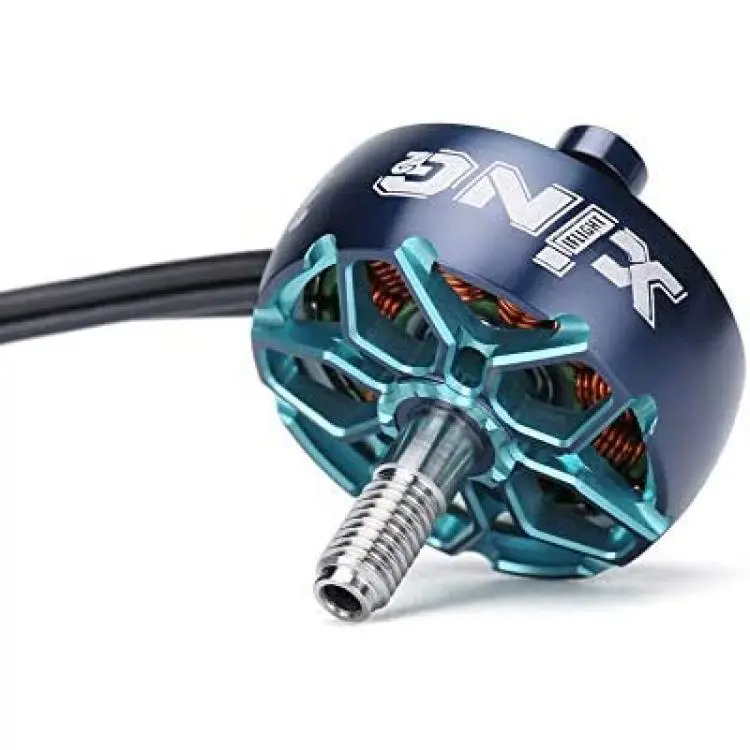

iFlight 4pcs XING2 2306 2555KV 4S FPV Motor Unibell with 5mm Titanium Alloy Shaft for FPV Drone Part
About this product
*- iFlight NEW series motor, new center slotted N52H curved arc magnets were introduced to drastically reduce the response time of the motor, flying more smooth, powerful, and stable.
*- XING O-Ring Bearing can reduce the axial impact force just enough to keep your bearings smooth and quiet.
*- High quality materials, 5mm titanium alloy shaft, strongest prop shaft ever.
*- Crash resistant 7075 aluminum bell.
*- Motor wires protector, dynamically balanced.
Description
Specification:
 Model: XING2 2306
 KV: 2555KV
 Version: CW Screw Thread
 Input Voltage: 4S Lipo
 Configuration: 12N14P
 Stator Diameter: 23mm
 Stator Length: 6mm
 Weight: 31.6g with short wire
 Wire length:20AWG 160mm
 Mounting pattern: 16*16mm

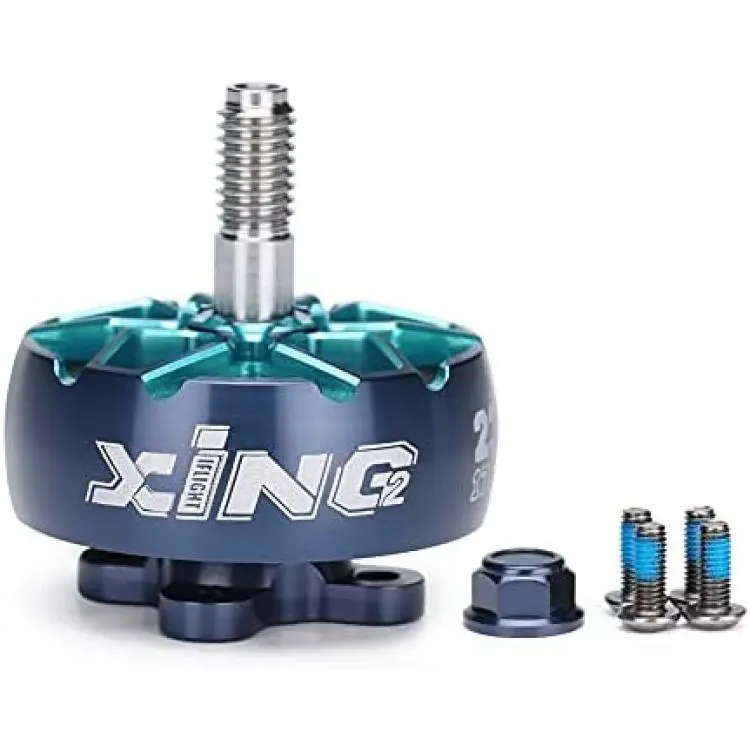

Package includes:
 4x XING2 2306 2555KV 4S Brushless Motor
 16x M3*6 screws
 4x M5 Flanged Nylon Insert Lock Nut
NOTE: propeller does not include.
