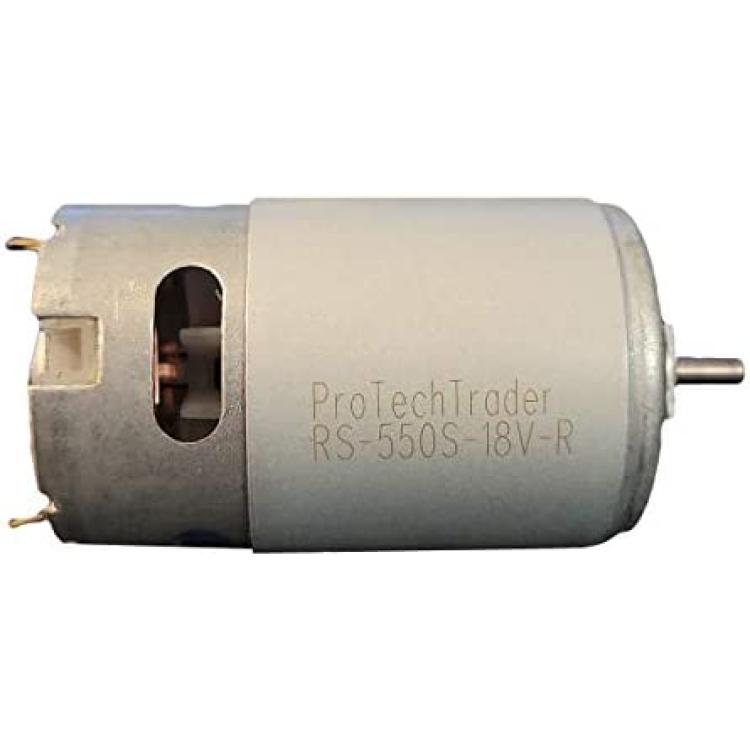

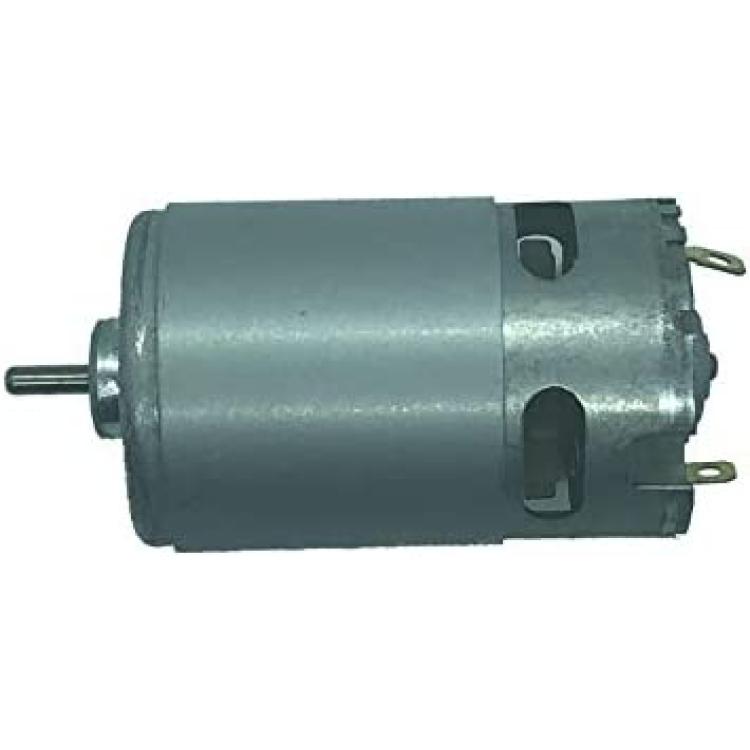

RS-550s 18v (12v - 20 volts) DC Motor Round Shaft - High Power & Torque for DIY Electric/Electronic Projects, Drills, Robots, RC Vehicals, Remote Controlled Cars/Robot, Saw Repair/Replacement Engine
About this product
*RS-550s Brushed DC Motor Weight: ~7.7oz (218g) Body Length: 2.24in (57mm) Body Diameter: 1.46in (37.5mm)
*Operating Voltage: ~6v - 20v | Optimal Volt Range: 12v - 18v | 18 Volt Nominal (Optimal Power, Speed, and Torque near 18 volts)
*Shaft Length ~0.35 inch / ~11/32in or ~9mm | Diameter ~0.125 inch / 1/8in or ~3.175mm | Style: Round | Stall Current: ~85A | Efficiency: ~70% | No Load RPM: ~20000 rpms | RPM Peak Efficiency: ~17000 rpms
Description
Model RS-550S 18v
Shape of Motor Housing: Round
Type of Motor: Carbon Brushes
Construction: Anisotropic Magnet or Rare Earth Magnet
Operating Voltage: ~6v - 24v
No Load RPM: ~19300
No Load Current: ~1.2A
Stall Torque: ~70.55oz-in (498.2mN-m)
Efficiency: ~70% RPM Peak Efficiency: ~17250
Current Peak Efficiency: ~8-10A Dimensions
Weight: ~7.7oz (218g) L: 2.24in (57mm) D: 1.46in (37mm)

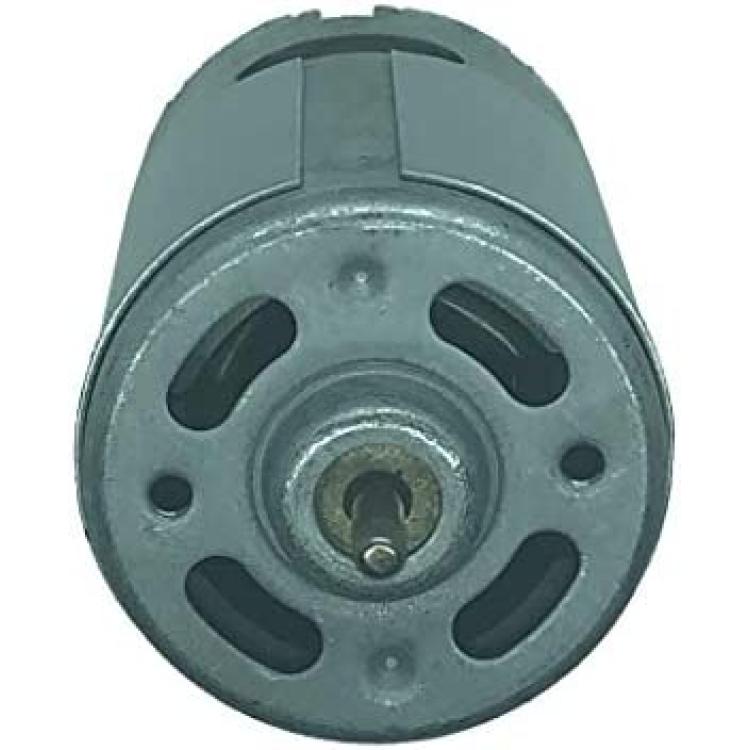

Mounting holes (2): M3
Mounting Holes: 25mm apart
Shaft Diameter: 3.175mm (~1/8in)
Shaft Style: Round
Shaft Length: 8.2mm
Motor Body Diameter: 35mm-37mm
Motor Body Length: 57mm
Weight: 7.8oz
Designed as a Power Tool / Drill motor and may replace motors in many 3/8in drills and other cordless outdoor tools.
As well as a popular choice for DIY Electronics and Robotics, PowerWheels, Gate Openers, and More.
***PLEASE NOTE: Will not work or fit in all models, be sure to check your specific applications requirements before purchasing
If you're replacing a motor please be sure to verify the motor matches your dimensions and shaft length and diameter before purchasing.
